Specifications
| Measuring gas | O2 | CO | H2S | Combustible |
| Measuring range | 0-25%VOL | 0-500ppm | 0-100ppm | 0-100%LEL |
| Sensor type | Electrochemical | Electrochemical | Electrochemical | Catalytic |
| Measuring type | Diffuse naturally | |||
| Response time | T90<30s | |||
| Display | LCD screen | |||
| Audible | ≥85dB at 1m | |||
| Alarm method | Visual, audible and vibrative signals | |||
| Battery | DC3.7V 1800mAh Lithium battery | |||
| Operating life | ≥8h per charge (Charging time: 4-6h) | |||
| Event log | 2000 events | |||
| Working temperature | Toxic gases: -20℃～50℃ Combustible: -40℃～70℃ Working humidity <95%RH (no condensation) | |||
| Housing | Rubber enclosure | |||
| Standard accessories | Operation manual, calibration cap, charger, screwdriver | |||
| Ex grade | II 2G Ex ia IIC T4 Ga II 2G Ex db ia IIC T4 Gb | |||
| Ingress protection | IP66 | |||
| Dimension | 120mm×68mm×30mm | |||
Weight | About 220g | |||
Product key features
100, 000 detected records including peak value
Calibration point adjustable
Two alarm level for each sensor channel
STEL& TWA alarm for toxic gases
Visual/audible/vibrating alarm
Self protection against high concentration combustible gas
Low battery alert
Confidence beep
Data uploading
Password management
Self-test when power on
Self-diagnostic and self correction function
Description

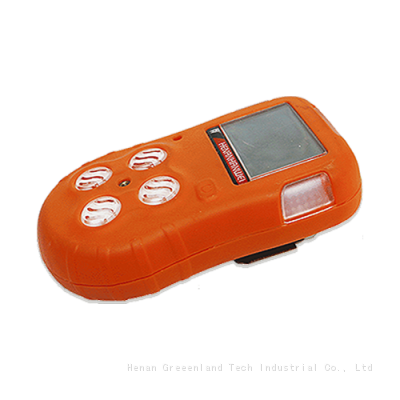

BX616 portable four-gas detector can make continuous detection to combustilbe and toxic gasesto protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas(CH4).Once the gas concentration is abnormal, it sends out an alarm.It is suitable for steel plant, petrochemical plant, petroleum industry, shipbuilding yard, sewage treatment plant, mine, power supply engineering, confined space, etc.
Company advantage
Certificates CE ATEX
More than 15 years export experience
Prices 5% lower than other brand
Fast delivery Parts of products are available in stock and can send within 3 working days
After-sales Service
All the products have 1 year warranty, and it will be free from maintenance within warranty period, products over warranty period for paid services.
BX616 is a portable gas leak detector, which could detect hydrogen gas in the surrounding environment.If you need portable gas leak detector, pease contact us.
