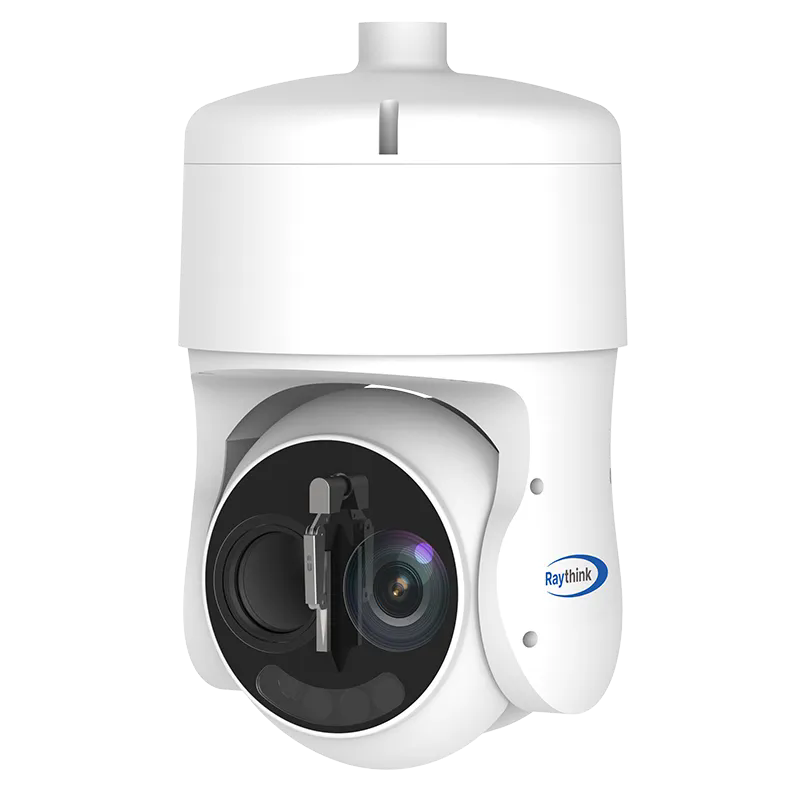

PD464T Dual-Spectrum Speed Dome Camera
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
TE365 Dual-Spectrum Explosion-Proof Bullet Camera
-
TE464 Dual-Spectrum Explosion-Proof PTZ Camera
-
Turing C256 Uncooled Infrared Module
-
Turing F384 Uncooled Infrared Module (Temperature Measurement)
-
Turing F384 Uncooled Infrared Module (Imaging)
-
Turing F640 Uncooled Infrared Module (Temperature Measurement)
Product Details
Place of Origin | China | Theory | Infrared Thermometer |
Product Description
Thermal Module | |
---|---|
Detector TypeVOx, uncooled FPA detectorsSpectral Range8~14μmNETD≤40mK(@25°C,F#1.0,25Hz)Resolution640×512Pixel Pitch12μmFocal Length9.1mm/13mm/25mm/50mm Athermalized/Motorized lens | |
Optical Module | |
Sensor4MP 1/1.8" Progressive Scan CMOSResolution2560×1920Focal Length6.5~240mm, 37xIR distance200m | |
Image Function | |
Bi-Spectrum Image FusionSupport | |
PTZ | |
Pan360° continuous,0.1°~200°/sTilt-27°~+90°,0.1°~120°/sPreset1024Scan modePreset/Pattern Scan/Patrol Scan/ Linear Scan/Panorama ScanWiperAuto-wiper | |
Temperature Measurement | |
Temperature Range-20℃~+550℃Temperature Accuracy±2℃ or ±2%Temperature MeasurementSuport 4 temperature measure ment rules(fullframe, point, line, area) | |
Smart Function | |
Fire DetectionSupportVCASupport Line Crossing&Intrusion detection with AI human/Vehicle recognition2-Way AudioSupportLinkage ActionVideo/ Snapshot/Email/Alarm output | |
System Interface | |
PowerDC 24V±25%Network1 RJ45 10M / 100M self-adaptive Ethernet portAudio1 in/1 outAlarm7 in/2 outStorageMicro SD memory(maximum 256G)ResetSupportSerial Port1 channel RS485, can support Pelco protocol | |
General | |
Work Environment-40℃~+70℃;<95%RHProtectionIP66Power Consumption≤8WDimenstion(mm)Φ250×413Weight≤8kg |
