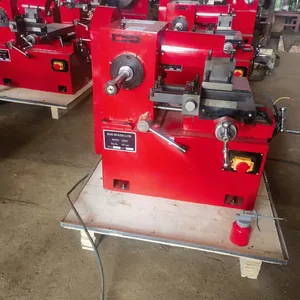

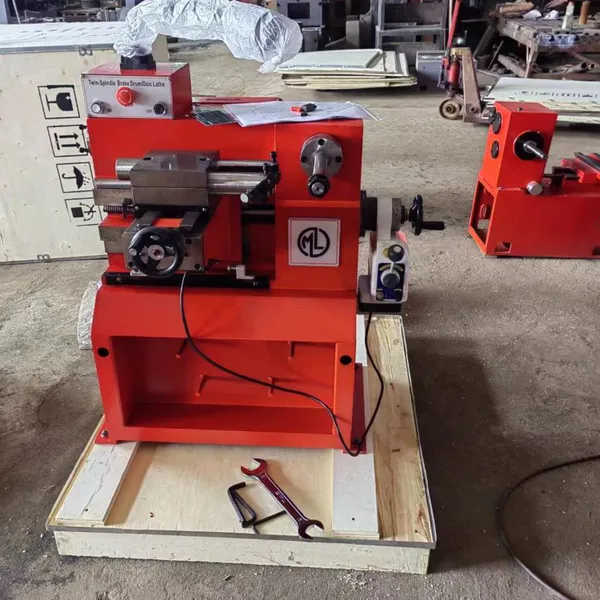

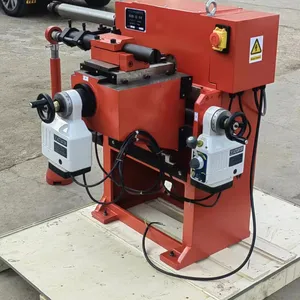

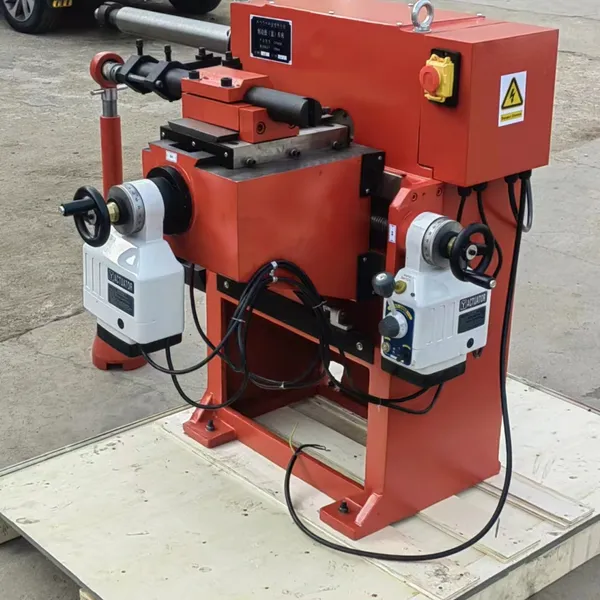

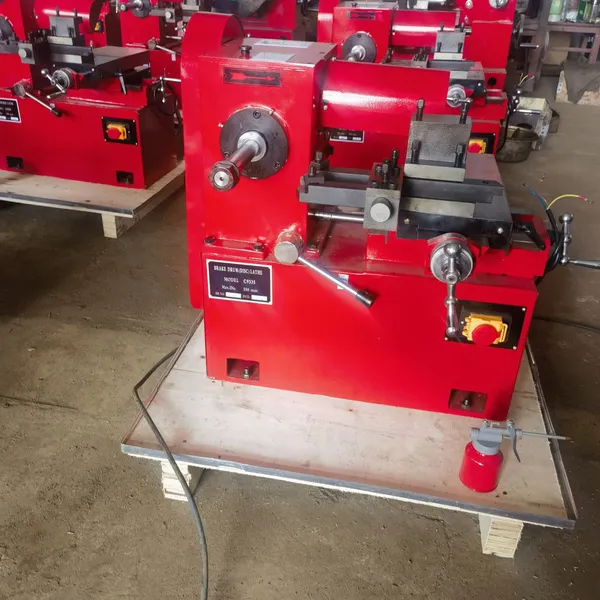

C9365Brake Drum Lathe

C9365 horizontal brake drum lathe detailed introduction

Machine tool use and performance

The machine adopts horizontal structure, has the characteristics of low center of gravity, convenient clamping and so on. See packing list for the machine type and accessories. If you need to expand the scope of use, add other models, you can make corresponding accessories or special orders.

The machine uses the bearing outer ring positioning datum of the brake disc hub, and the mandrel and cone sleeve can realize the clamping and turning repair of the brake disc quickly and conveniently. The positioning and processing datum are unified and the processing precision is high.

The machine has good rigidity, fast cutting speed and excellent processing efficiency. Under normal circumstances, only one turning can achieve the accuracy requirements.

This machine tool is easy to operate, easy to maintain, and is an ideal repair equipment.

Machine tool main technical specifications and parameters

1, cutting diameter range of ￠180 - ￠480mm

2, longitudinal travel 10mm 3, horizontal trailer travel 56mm 4, spindle speed 30, 49, 88r/min

5. Stepless speed regulation of cutting quantity

6, cutting depth 0.5mm

7. Motor Y90S-4B3 1.1KW
