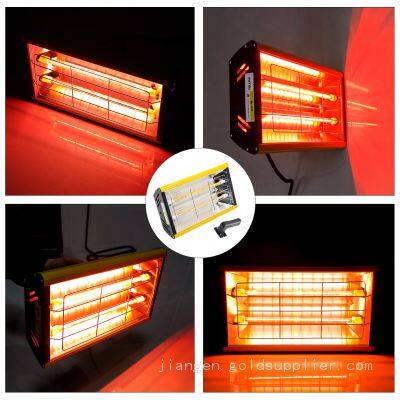

Car spray paint room infrared paint curing lamp double tube heating paint drying lamp 110V 2000W
Specification:
Type: Paint curing lamp
Voltage: 110V/50Hz
Power supply (Watts): 800W 2000W
Temperature range: 400℉
Color: Red
Specifications
Infrared quartz heater Quartz/Infrared Heater/Quartz far infrared radiation heating lamp
Property and purpose:
Quartz heating lamp do not apply paint, stable emissivity, no deformation in high temperature, no harmful radiation, no environmental pollution, high temperature resistance, high corrosion resistance, chemical stability, small thermal inertia, speedy thermal response and high thermal conversion efficiency
the heating temperature can be chosen and no regression for long-term use of radiation performance, reasonable structure, easy to use
Quartz heating lamp is the only selective radiation far-infrared heating elements. It can be widely used in electrical and mechanical, chemical, electronic, textile, printing and dyeing, plastics, printing, food, food processing and Medical health, heating and drying for leather, curing dehydration and all kinds of heating equipment of drying tunnel, drying room, oven
Main technical parameters:
Rated voltages: 380, 220, 110V, 36-24V (according to requirement)

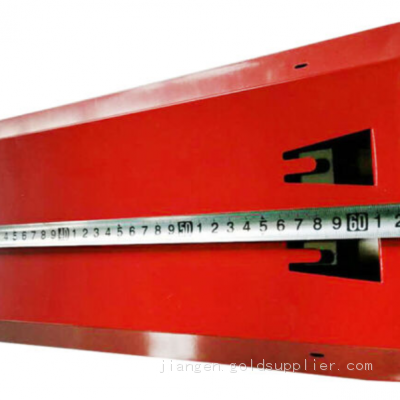

Length: 300-2500mm, can be customized
Component matching: 200-5000W
Outside diameter: 10-30mm (according to requirement) common specifications: 18 and 20
Thermal response speed: 3-5 minutes
Surface temperature: low temperature of 380-460°C, middle temperature of 500 to 580°C
According to user requirements, can be increased to 700 to 750°C, or reduced to 100-300°C
Spectral range: 2.5-6 μm (with a higher radiation intensity)
the spectral emission coefficient: 0.92 (wavelength is 48um)
Feature:
1) Carbon fiber heating tube 2000W, 50Hz, 110V, the product will not release heat and will not cause secondary pollution to the environment.
2) Far-infrared radiation heating technology only heats objects within the infrared range, making efficient use of energy.
3) the main body of the product adopts a rotating lampshade, a stable and adjustable metal tube structure, and a ball roller with a parking brake, which is easy to install.

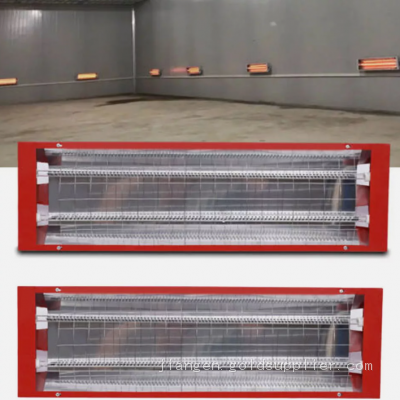

4) the products are widely used in automobile spray paint room, local paint drying, putty drying, automobile spray paint room, heater, printing dryer and various drying equipment.
Package includes:
2*Double tube baking lamp
