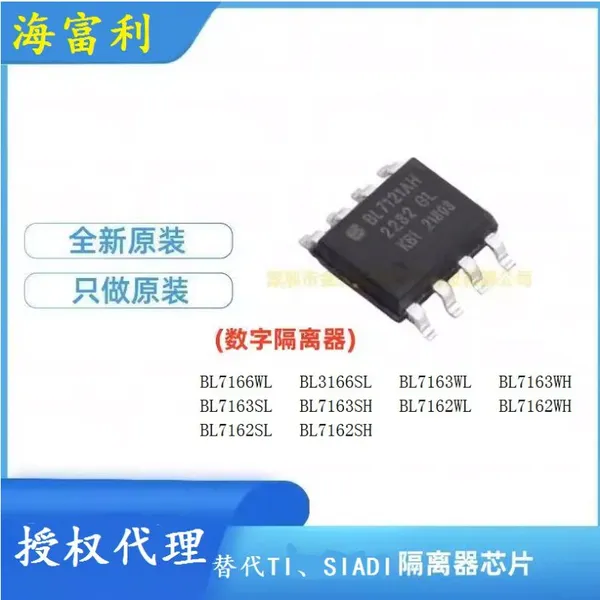

Help CenterShanghai Belling Photovoltaic Inverter Digital Isolator BL7166WL
Related Products
-
Shanghai Belling Digital Isolator BL7140SLNegotiableMOQ: 3000 Units -
Shanghai Belling Digital Isolator BL7141WLNegotiableMOQ: 3000 Units
-
Shanghai Belling Digital Isolator BL7142WHNegotiableMOQ: 3000 Units
-
Shanghai Belling Digital Isolator BL7122BLNegotiableMOQ: 3000 Units
-
Shanghai Belling Digital Isolator BL7140SHNegotiableMOQ: 3000 Units
Feature:
100Mbps signaling rate
Powerful isolation performance
±100kV/µs CMTI (typical)
5kVRMS isolation withstand voltage
>50 year isolation barrier life
Up to 13kV surge resistance
Wide supply voltage range: 2.5V to 5.5V
2.5V to 5.5V level shifting
Wide temperature range: -40°C to 125°C
Default output low level (L)
Low propagation delay: 13ns (typical, 5V supply)
Low pulse width distortion: 3ns
Description:
The BL7166 is a high performance six-channel digital isolator that
achieve complete electrical isolation between inputs/outputs. Each isolated
channels are isolated from the logic inputs and output buffers by a double-capacitance silicon dioxide (SiO2) barrier, allowing the input data to be separated from the inputs.
Silicon Oxygen (SiO2) barrier isolation, which allows input data to be
The BL7166 has six fully isotropic channels.
six fully isotropic channels; default outputs go low if power or signal is lost on the input side; and the outputs go low by default.
loss on the input side, the default output goes low; interlocking of neighboring channels with
interlocking of neighboring channels to provide anti-direction protection, eliminating the short-circuit risk on the power side and enhancing the robustness of the system.
The BL7166 device has a high degree of robustness.
The BL7166 device has high insulation capability and can provide high EMI immunity with low power consumption.
The BL7166 device's high insulation capability provides high electromagnetic immunity and low emissions with low power consumption, helping to protect against
noise and surges on the data bus or other circuits from entering the local
ground to help prevent noise and surges on data buses or other circuits from entering the local ground and interfering with or damaging sensitive circuits.
The high CMTI capability ensures proper transmission of digital signals.
The BL7166 is available in 16-pin SOW(W) and 16-pin SSOP(S) packages.
The BL7166 is available in 16-pin SOW(W) and 16-pin SSOP(S) packages.
