LD Model Single Girder Bridge Crane Electric Engine Motor Driving Hoist Trolley
- Qingdao port,China
- T/T L/C
- 25 days
You May Like
-
Electric Special Grab Bridge Crane Doule-jaw A4 Big Volume 5.3t/m³ for Sale
-
Low Headroom for Offsetting Hoist Trolley Single Beam Bridge Crane
-
LX Suspension Single Girder Bridge Crane Light Equipment Hanging Rail on I-beam
-
Euro Design New Type Electric Traveling Wire Rope Hoist ISO Brand
-
Electric Traveling Wire Rope Hoist A4 ISO 10 Ton for Sale Gearbox
-
RMG Container Gantry Crane U Type Wheels Rail Mounted for Break Containers
Product Details
| Brand Name | Kuangyuan | Place of Origin | China | |
| Model Number | LDA | Certification | CE,ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 18months | |
| Application | For handling needs | Condition | New | |
| Max. Lifting Load | 5t | Span | 22.8m | |
| Rated Lifting Moment | / | Rated Loading Capacity | 1~20t | |
| Max. Lifting Height | 24m |
Product Description
Product description:

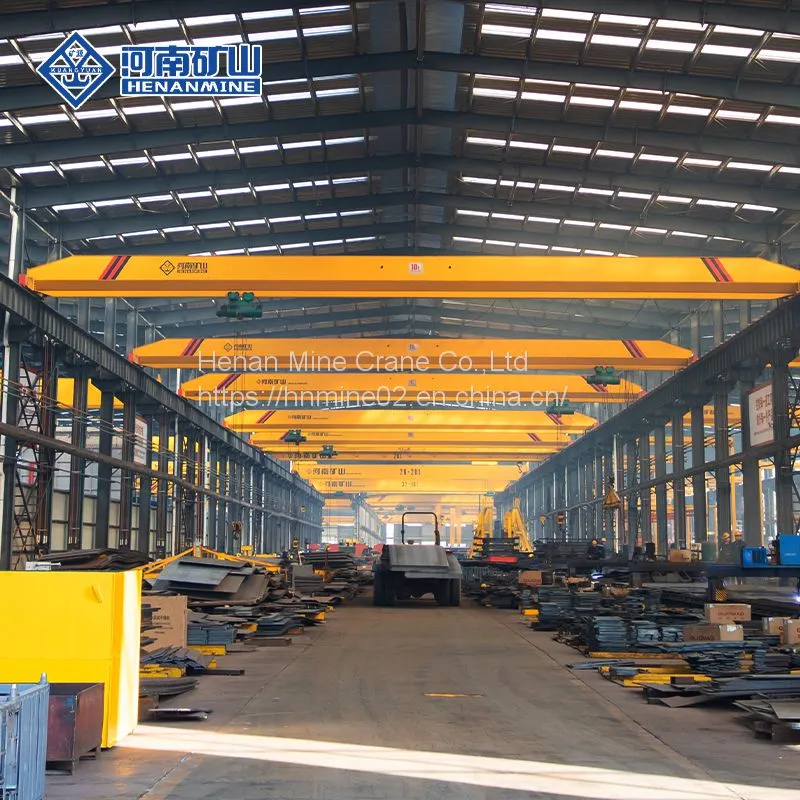

LDA single girder electric overhead crane
LDA type bridge crane is widely used in plants warehouses, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosives environment. LDA Single Girder Overhead Crane has two operational methods, ground or operational room which has open model and closed model and can be installed on left or right side according to the practical situation. And the direction of entering the gate has two forms, sideway and ends in order to satisfy the users' Choice users' different conditions.
Application:
Double girder bridge overhead crane allocation hook used in machining, assembly workshop, metal workshop, metallurgy and casting workshop and warehouse handling work; allocation of grab is suitable for metallurgy, cement, chemical or open fixed span in bulk material handling.
Features:
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Designed according to your reques
1. Weight overload protection device.
2. Top quality long time bearing polyurethane materials buffer.
3. Crane travelling limit switch.
4. Voltage lower protection function.
5. Emergency stop system.
6. Current overload protection system and so on
Technical Parameters:
| Item | Parameters |
| Product name | General using single girder electric overhead traveling crane |
| Product model | LD |
| Lifting mechanism | CD/MD wire rope hoist |
| Lifting capacity | 1~20t |
| Lifting height | 6~30m |
| Span | 6.5~31.5m |
| Power supply | 380V50Hz3-Ph,AC(can be customized) |
| Control voltage | 36V |
| Control way | Pendant line button control & Wireless remote control |
