Home > Products > synthetic graphite > Supplier Battery Cooling Material Pgs 0.032mm Graphite Sheet
Supplier Battery Cooling Material Pgs 0.032mm Graphite Sheet
- 10000 Square Meter / Square Meters per Month
- Shanghai
- 10 days
You May Like
Product Details
| Brand Name | QT | Place of Origin | China | |
| Model Number | QTS0032 | Thickness | 0.032mm | |
| Grade | Industrial Grade | Type | Flexible Sheet | |
| Application | smart phone, tablet computer, LED, TV and relative electronic products | C Content (%) | 99.99 |
Product Description

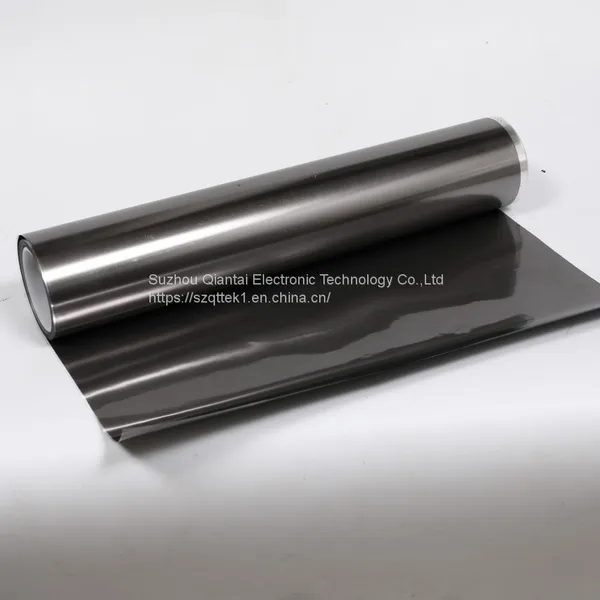

Synthetic graphite sheet QTS0032
Description :
0.032mm Super Thermal Conductivity Synthetic Graphite Sheet is a new type diaphragm material got by PI film
Feature :
.1.High Heat Transfer Efficiency
The thermal conductivity of Synthetic graphite sheet 1200w/mk
(the highest specification series thermal conductivity is 5times that of copper,and 8.3times that of Aluminum
2.Easy Processing
A flexible diaphragm, easy cutting and processing to any shape, and can be repeated bending
3.Lightweight
1.6-2.1g/cm3density (it's about 1/3-3/4 of aluminum and 1/5-1/4 of copper.)
4.Low Resistance
Can be used for electromagnetic shielding
Application:
It has high heat transfer effect and thermal conductivity is 1200w/mk, and mainly applied to the heat dissipation of smart phone, tablet computer, LED, TV and relative electronic products
Model Number | QTS0032 |
Color | Dark Grey |
Thickness | 0.032mm |
Thickness Tolerance | ±0.003mm |
Density | 1.8g/cm3 |
Heat Resistance（℃） | 450 |
Specific Heat（50℃）（J/gk) | 0.85 |
Temperature | -40℃to 500℃ |
Thermal conductivity(X-Y direction) | 1200W/mk±100W/mk |
Thermal conductivity(Z direction) | 10w/mk±2W/mk |
Bending Test (times) （R5/180°) | 20000 |
Electric conductivity（s/cm) | 19000 |
Specification
