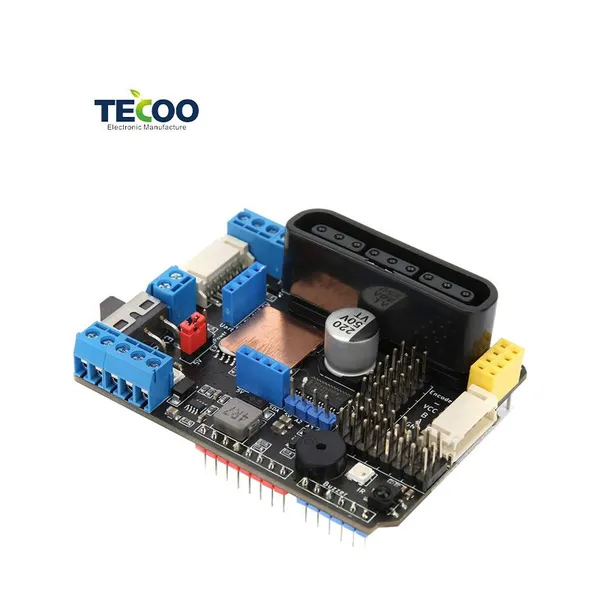

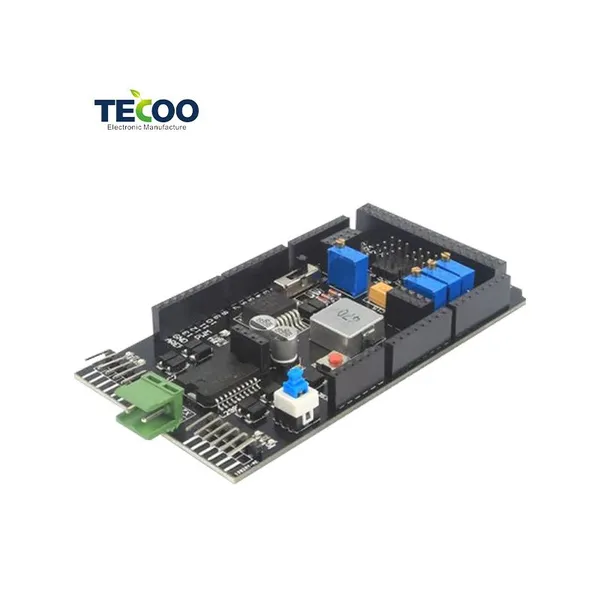

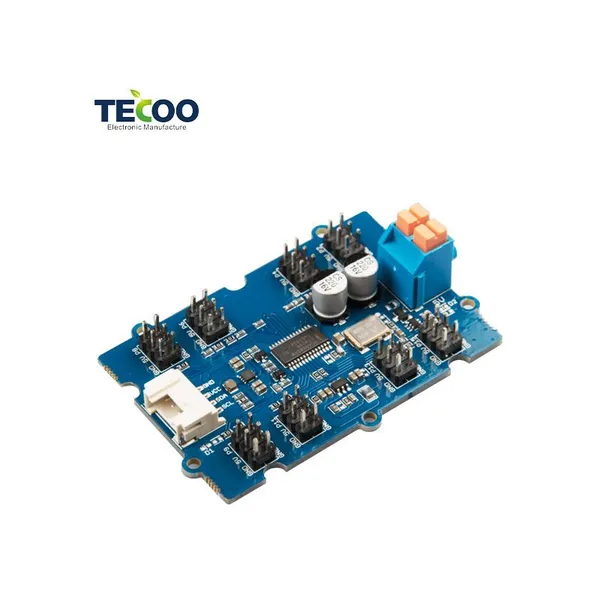

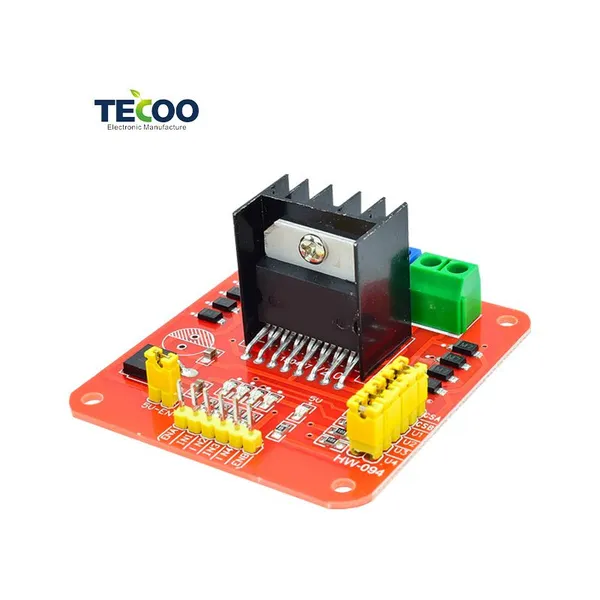

H-Bridge DC Motor Driver Module For Robot Car

Tecoo H-Bridge DC Motor Driver Module for a robot car is a crucial component for controlling the movement of DC motors in both directions (forward and backward) with speed control. H-Bridge Configuration: The H-Bridge is an electronic circuit that allows the motor to be driven in either direction by controlling the polarity of the voltage applied to it. It consists of four switching elements (transistors or MOSFETs) arranged in an H-shaped configuration. Motor Control: The H-Bridge module provides the necessary circuitry to control the rotation direction and speed of DC motors. By controlling the voltage and polarity applied to the motor terminals, it enables the motor to move forward, backward, or stop. Dual Motor Control: Many H-Bridge modules are designed to control two DC motors simultaneously, making them ideal for use in robot cars where two motors are typically used for propulsion (one for each wheel). PWM (Pulse Width Modulation) Support: PWM signals can be used to control the speed of the motors. The H-Bridge module often includes PWM input pins, allowing for precise speed control by varying the duty cycle of the PWM signal. Current Protection: To prevent damage to the motors and the module itself, many H-Bridge modules include features such as overcurrent protection and thermal shutdown. Logic Level Compatibility: The module is typically designed to be compatible with logic-level signals from microcontrollers such as Arduino or Raspberry Pi, making it easy to integrate into robot car projects. Versatility: Besides robot cars, H-Bridge modules can be used in a wide range of applications requiring bidirectional control of DC motors, including robotics, automation, and motorized devices.
