Home > Products > stone cutting machine > HUALONG Automatic Granite Marble Slab Cutting to Size Curbstone Multi-disc Cross Cutter Line Paving Stone Cutting Machine
HUALONG Automatic Granite Marble Slab Cutting to Size Curbstone Multi-disc Cross Cutter Line Paving Stone Cutting Machine
US$ 47000 - 50000
/ Set
1 Set(Min. Order)
- XiaMen or FuZhou
- T/T L/C Other
You May Like
-
Auto/Manual Anti-Explosion Water Curtain Dust Collector Removal for Metal Spray Painting/Coating/Sanding/Polishing
-
Factory Supply Good Performance Water Curtain Spray Booth
-
Wet-Type Air Dust Collection Booth Water Wall Dust Collector Machine for Stone Industrial
-
Water Wall Stainless Steel Dust Collection Booth Wet Air Dust Collector for Stone Fabrication
-
Stone Dust Collector Cutting-Edge Water Wall Dust Collector Your Ultimate Solution for Stone Dust Collector
-
High Performance Dust Free Water Curtain Furniture Spray Painting Booth
Product Details
| Brand Name | Hualong | Place of Origin | China | |
| Type | Stone Cutting Machine | Use | Other, Building Material Shops, Manufacturing Plant, Construction works , Stone Processing | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 3000 kg | |
| Dimension(L*W*H) | 8400*2200*2000mm | Production Capacity | 100 set/per month | |
| Condition | New | Voltage | 380V/50Hz | |
| Power(W) | 18.5 kw |
Product Description

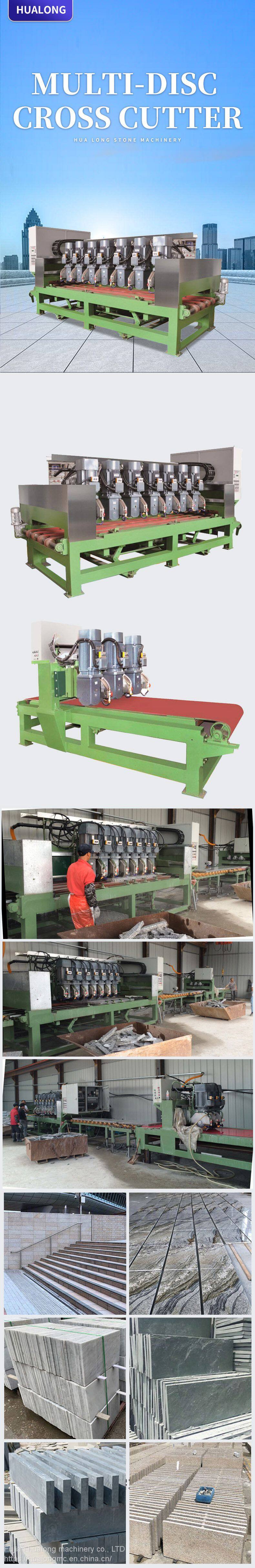

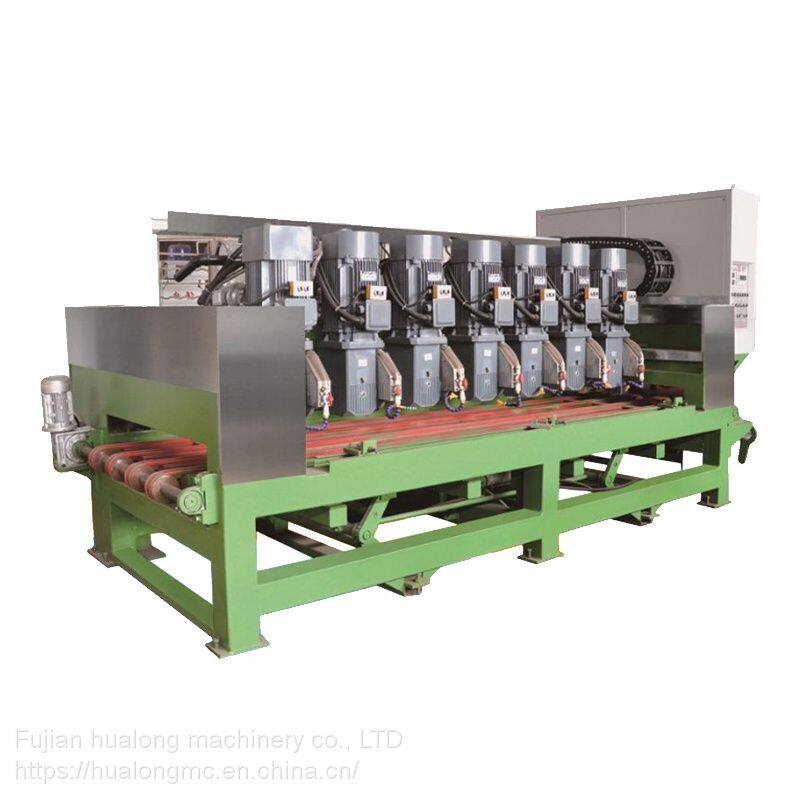

Multi-disc Cross Cutter
Hualong HLCC-3/7 is an automatic cross cutting production line designed for cutting granite and marble slabs to size. The max cutting depth is 70mm. It can be fitted with up to 7 independent cutter groups. This is an extremely high efficiency equipment for slab cutting-to-size mass production.
Features
1) The slab to cut is positioned on a conveyor which travels on the workbench. The conveyor consists of a multilayer belt with a thick rubber coating ideal for resisting cuts caused by the diamond disc cutters when operating.
2) The slab automatically stops when it reaches a concealed end stop.
3) A motorised longitudinal end stop maintains the slab aligned during cutting operations.
4) Once cutting operations have terminated the discs are raised off the workpiece and then returned to their original position and the slab cut into tiles is discharged from the machine and a new slab is fed in.
Q:What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
