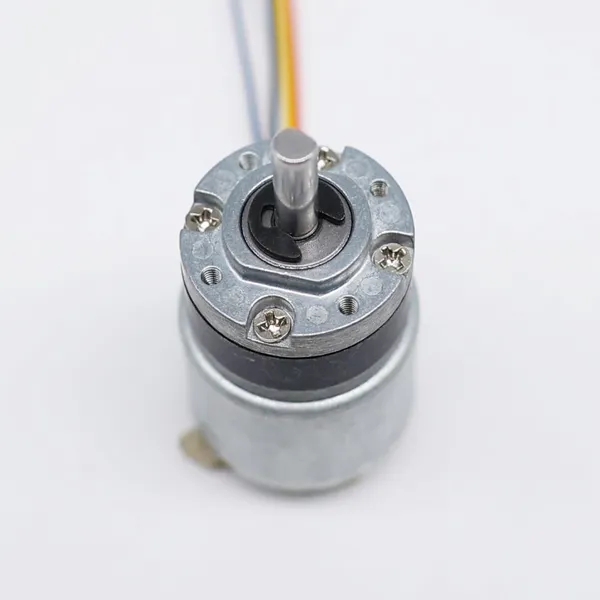

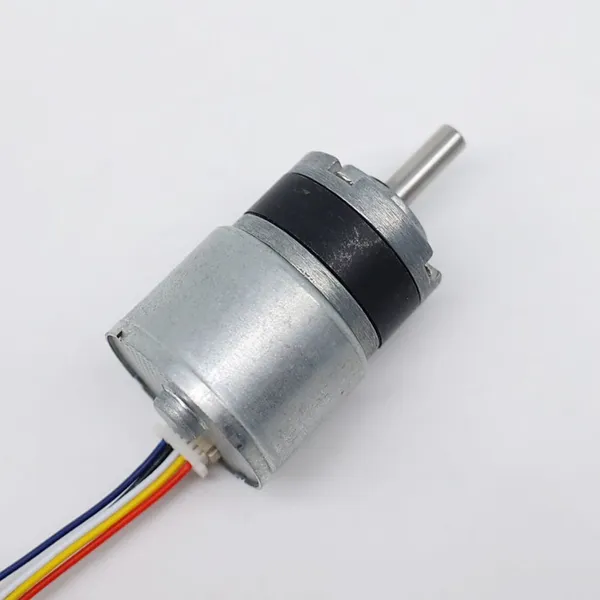

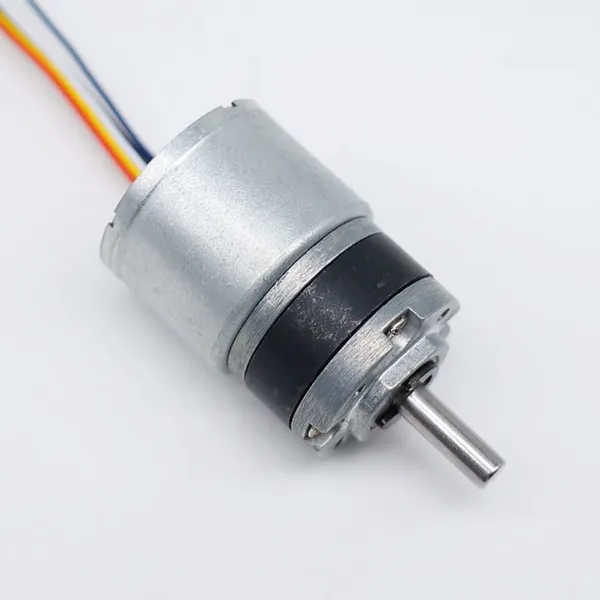

22GP-2418 DC Brushless Motor 12-24VDC With Planetary Gearbox Hall Sensor Encoder
US$ 10.2 - 11.2
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
keshuo
Place of Origin:
China
Model Number:
22GP-2418
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
15 days
Related Products
-
BL2838 Brushless DC Motor 3.7v for Hair ClipperUS$ 6.8 - 7.8MOQ: 200 Pieces -
28GP-2847 Brushless DC Motor 12V 24V With Planetary GearboxUS$ 19.8 - 22.8MOQ: 200 Pieces
-
GMP22-180 DC Gear Motor With 22mm Planetary Gearbox 6v 9v 12vUS$ 6.8 - 7.8MOQ: 500 Pieces
-
GM182-N20 Right Angled DC Gear Motor 3.6v-12v 90degree DC MotorUS$ 6.8 - 7.8MOQ: 500 Pieces
-
GM12-N20 Spur Geared DC Motor With Encoder 3.6v-12v 50:1 100:1US$ 5.8 - 7.8MOQ: 500 Pieces
Brand Name
keshuo
Place of Origin
China
Model Number
22GP-2418
Type
Gear Motor
Certification
CE, ROHS
Torque
0.16kg.cm-3kg.cm
Usage
Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, beauty equipment
Construction
Permanent Magnet
Efficiency
IE 2
Protect Feature
Drip-proof
Voltage(V)
12v/24v
Output Power
5w/10w
Continuous Current(A)
0.07-0.08A
Speed(RPM)
1900-26rpm
Commutation
Brushless
