I.Overview
TADT is a portable, high-precision temperature and humidity calibration instrument, can meet the temperature and humidity sensor, temperature and humidity transmitter, small temperature and humidity meter and other conventional temperature and humidity measurement instrument measurement and calibration requirements.
II.Product characteristics
l Test chamber space up to (3~5) times that of similar products, providing more efficient test conditions
l The test chamber can accommodate various types of in-put cold-mirror-viewer probes for comparison and calibration
l Composite sensor jack design, suitable for various diameter temperature and humidity sensors and transmitters

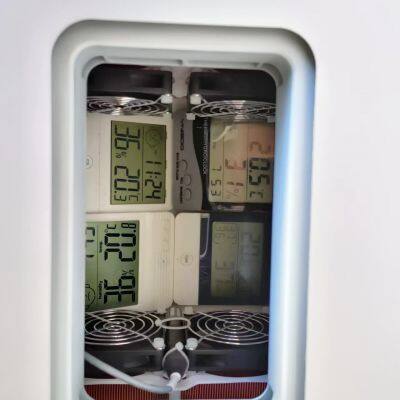

l Transparent window and lighting design of measuring room to facilitate reading of various small temperature and humidity meters
l Can be calibrated simultaneously (10~15) with small temperature and humidity probes
l Calibrate (3-5) block size digital temperature and humidity meter simultaneously
l The test chamber provides temperature uniformity within 0.1℃℃ in a full range of 5℃~50
l Design of external drying cylinder, desiccant replacement can be operated on-line, convenient and simple
l Design of double-zone drying cylinder, supporting both molecular sieve and discolored silica gel
l Visual display of liquid level and dryer state is beneficial to state monitoring during work
l Provide 4 channel external (0~1) V、(0~5) V and (4~20) mA standard signal inputs
l The instrument has built-in humidity conversion software to facilitate users to convert relative humidity, temperature and dew point temperature
l Support temperature and humidity curve display, easy for users to view temperature and humidity state trend
l 7-inch color LCD touchscreen
Model |
TADT-1G |
TADT-2G |
TADT-3G |
Workspace volume |
5L |
9L |
1.5L |
Nominal humidity range |
5 %rh~95 %rh (20±3℃) |
5 %rh~95 %rh (20±3℃) |
5 %rh~95 %rh (20±3℃) |
Nominal temperature range |
5℃~50℃ |
5℃~50℃ |
5℃~50℃ |
Temperature stability |
±0.05℃ |
±0.05℃ |
±0.05℃ |
Temperature uniformity |
≤0.05℃(20±3℃) ≤0.1℃(5~50℃) |
||
Max allowable temperature error |
±0.05℃(20±3℃) ±0.1℃(5~50℃) |
||
Humidity stability |
±0.2 %RH |
||
Humidity uniformity |
≤0.3 %RH(20±3℃) ≤0.5%RH(5~50℃) |
||
Max allowable error of relative humidity |
±0.8 RH(20±3℃) ±1.5%RH(5~50℃) |
||
Desiccant |
Molecular sieve or discolored silica gel (renewable) |
||
Saturated media |
Distilled or deionized water |
||
|
Testing cavity (LXWXH) |
160 ×175 ×175 (mm )
|
280×175×175 (mm)
|
110×110×110 (mm)
|
Sensor Test Window |
Modular design, support customized on demand |
||
|
Oversize (LXWXH) |
550×300×600 (mm )
|
550×300×600 (mm)
|
370×480×200(mm) (mm)
|
Net weight |
20kg |
25kg |
15kg |
III. Technical indicators
Generator accessories
1、Glass + eyelet combination cover
Scope of application: measuring indoor built-in lighting, transparent window to facilitate digital temperature and humidity meter reading, small holes suitable for inserting various temperature and humidity sensors, temperature and humidity transmitter probe.
2、Combined macroporous + pore cover
Scope of application: large holes are suitable for inserting various input cold mirror dew point instrument probes as standard devices, and small holes are suitable for inserting various temperature and humidity sensors, temperature and humidity transmitter probes.

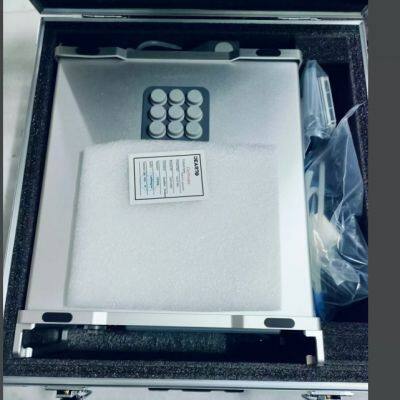

3、Aluminum alloy instrument box
Easy for users to go out to carry and use.
