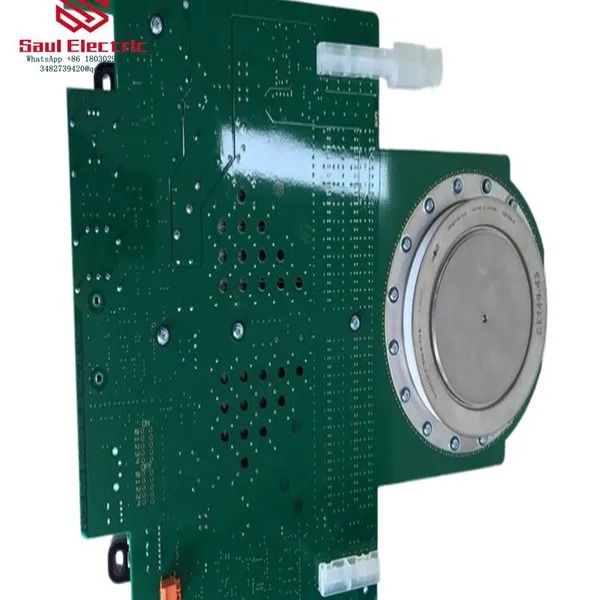

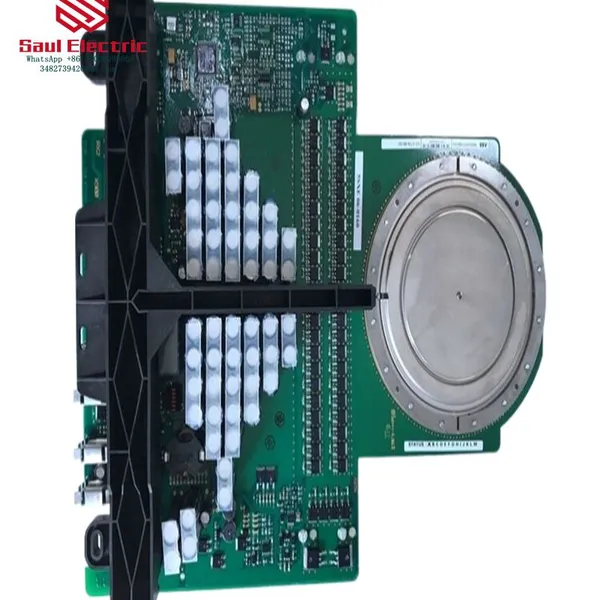

5SHY4045L0004 Semiconductor Thyristor Module

5SHY4045L0004 Semiconductor thyristor module
The 5SHY4045L0004 is a semiconductor thyristor module manufactured by ABB. Featuring high switching frequency, low loss, high reliability and long service life, the module is suitable for high-voltage direct current (HVDC) transmission and conversion applications. In addition, it is also used in industrial automation control systems to achieve power and speed regulation of electric motors, heating equipment, electric furnaces, etc. The module has a rated voltage of 4500V, a rated current of 40A, a switching loss of 3.0J, a on-off loss of 1.8V, a switching frequency of 20kHz, a junction temperature of 175°C and a weight of 6kg.

The application field of 5SHY4045L0004 is very wide, mainly including the following aspects:
Industrial drives: This chipset is widely used in industrial drives to control devices such as motors and frequency converters.
Solar and battery power Converter Backup systems (UPS) : In solar power generation systems and battery energy storage systems, 5SHY4045L0004 is used for efficient power conversion and backup power systems.
Electric vehicles: The chipset is also used in traction converters for electric vehicles to provide efficient power output.
Power transmission and metallurgy: In the power transmission and metallurgy industry, the 5SHY4045L0004 is used in high-voltage high-power converters and flexible AC transmission (FACTS) equipment.
Chemical and new energy: In the chemical and new energy sector, the chipset is used in various high-power switching and power conversion devices.
Wind turbines and traction converters: In wind power generation systems, 5SHY4045L0004 is used in wind turbine control systems and traction converters.
Industrial automation: In the field of industrial automation, the chipset is used in motors, frequency converters, industrial control systems and other products, suitable for various production lines and automation equipment such as robots.
Power quality control: In the field of power quality control, 5SHY4045L0004 is used as a power quality controller to improve the stability and reliability of the power grid.
5SHY4045L0004 plays an important role in several industrial and power electronics fields, covering multiple application scenarios from industrial drives to power transmission and new energy.
