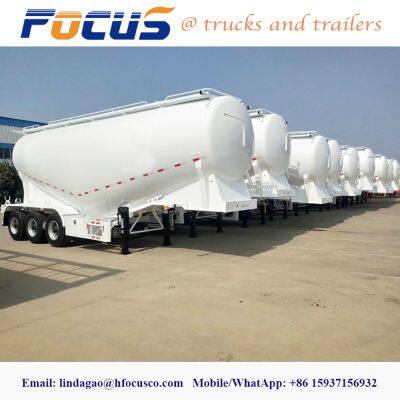

40t/50t Bulk Concrete/Cement Powder Tank/Tanker Truck Semi Trailer Made in China,Cement tank trailers with lifting axle

FOB Price

USD $6000 - $99999 / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	FOCUS		Place of Origin	China
Model Number	FOCUS 304

Leading manufacturer supplier Factory of bulk cement/Concrete silo/tank/tanker trailer in China

Cement tank Model		Specification
Overall dimensions:(mm)		10750×2500×3850 mm
Tank volume		38 m3
Tank thickness		Tank body 5mm
Unload tube		D type /1 units 7.2m length
Manhole		2 pieces
Frame and running construction
Axle		FUWA13T /3
Tyre		12R22.5 /12
Rim		9.0-22.5 /12
Leaf-spring		90width10pieces12mm/6 sets
Relay valve		WABCO
Kingpin		90#, bolted type
Landing gear		28T standard, two side operation
Suspension		Reinforced type
Electrical and braking system
Electrical system		24 volt electrical system.LED lights, 7 pin electrical connector. Parking .Stop,reverse,number plate and indicator lights. Rear lights conform to European standard, rear front and side reflectors
Braking system		4 double and two single chambers T30/30 spring brake chamber 40L air tank and 7 ways Receptacle
Paint (short and blasting )		Chassis is comletely shor blasted to SA 2.5 grade, And painted with first layer of international Zinc Epoxy primer(30 Microns DEF), Second layer international high built polyurethane under coat(40 microns dft), Third and forth layers international alkyd finish top coat.Total 100 microns. Seawater proofed painting, whole trailer waxed,
Power system(engine and air-compressor)
Engine		Diesel engine,Weifang 4102 type
Air-compressor		12/2 doule cylinder
Accessories
Ladder		In left and rear position ,width>250
Spare tire support		1
Walkway		Width>1700
Tool box		1
Wheel guard		Out of steel
