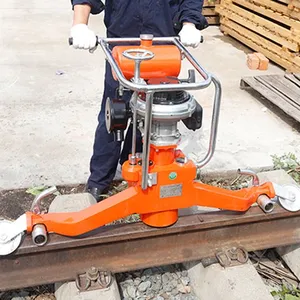

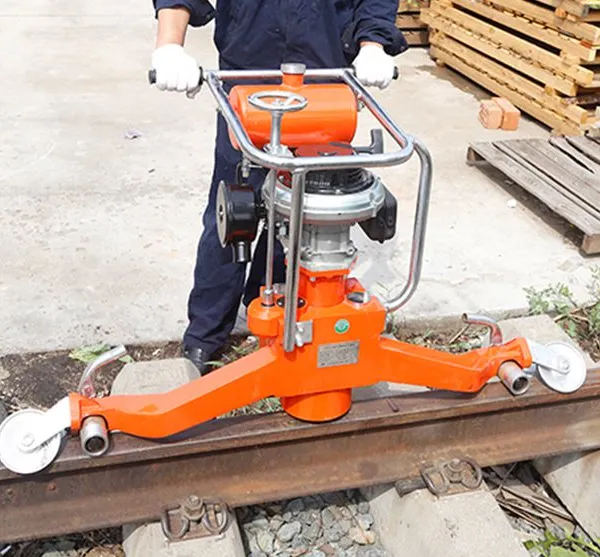

This machine is powered by the M165 two-stroke petrol engine imported from Spain. It is a small machine used for forming and grinding the rail head welding joints and surface repairs. It is suitable for rails of 43~75kg/m. The special diaphragm carburetor make sure the engine does not stall after turning 90°, and the output torque is stable without power attenuation, thus ensuring the precision of rail grinding.
Model：NGM-6.0
Type：Rail Profile Grinder
Material：Stainless Steel
Dimensions (L x W x H) (mm)：1410*500*850mm
Engine：2 stroke petrol engine M165
Power：6.0kW
Grinding stone speed：≥3900r/min
Grinding stone inclination：0~90°
Grinding stone feeding stroke：42mm
Grinding stone specification：φ150xφ55x70mm
Fuel tank volume：4.5L
Profile wheel span：1000mm
Feed adjustment accuracy：0.125mm
Weight：60kg
