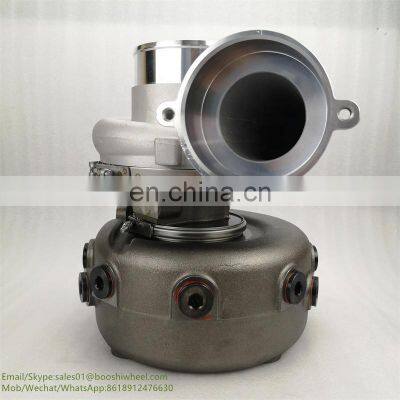

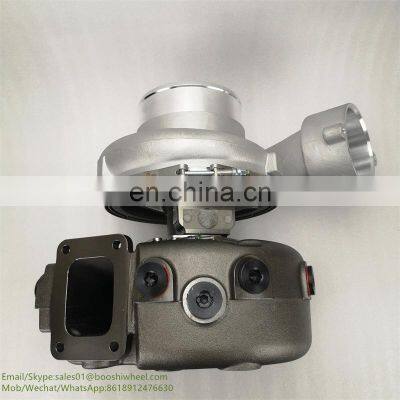

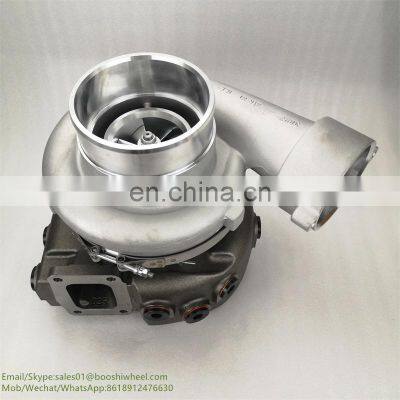

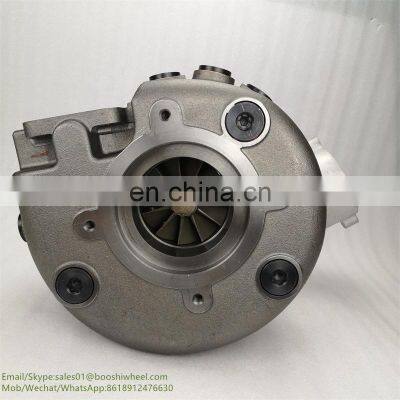

Turbocharger Tw9206 466375-0002 466375-5002s 466375-2 466375-9002 102-0301 1020301 6I2088 Various Engine G3512 Sr4
Welcome to contact us :
November Gao.
Mob/Wechat/WhatsApp: 8618912476630
Product details
|
Part Number
|
466375-5002S
|
|
Previous Version
|
466375-0002, 466375-2, 466375-9002
|
|
OE number
|
102-0301, 1020301, 6I2088
|
|
Description
|
Industrial Genset, Various
|
|
CHRA
|
410349-0035 (6I2085, 102-0298, 0R6787, 410349-5035S) $2242.01 NEW IN STOCK
|
|
Turbo Model
|
TW9206
|
|
Engine
|
3512 SITASCAC GS
|
|
Generator Set Engine
|
G3512
|
|
Generator
|
SR4, SR4B
|
|
Industrial Engine
|
G3512, SR4
|
|
S/N
|
4KC433-633, 7NJ15-UP, CTM1-UP, CRN1-UP
|
|
Equip.
|
466340
|
|
Displacement
|
51800 ccm, V12 Cylinders
|
|
Fuel
|
Diesel
|
|
Generator Set
|
G3512
|
|
S/N
|
CTM1-UP; CRN1-UP, 7NJ15-UP, 4KC433-633, 7NJ1-14, 4KC291-432, 4KC00001-UP, 7NJ00001-UP, 6JW00001-UP, CRN00001-UP
|
|
Angle α (compressor housing)
|
175°
|
|
Angle β (turbine housing)
|
60°
|
|
Bearing Housing
|
443245-0001/410310-0002 (4W1224)
|
|
Turbine Wheel
|
442208-0001 (4W1223)
|
|
Comp. Wheel
|
441813-0008/445035-0004 (6I2104)
|
|
Back plate
|
408487-0042 (1093481, 4W4609)
|
|
Heat shield Number
|
410370-0005 (1900388, 4W1329)
|
|
Repair Kit
|
707899-0001/468416-0000 (1101090750, 1101090755) (1N3593, 1089342)
|
|
Turbine Housing (Water Cooled)
|
409339-0114 (409133-0114, 448406-0001)(9N2035, 7C6707, 6N7215, 90741, 4P4605) $1250.00 NEW IN STOCK
|
|
Compressor Cover
|
443892-0008 (6I2086)
|
|
Plug-Cup
|
3B0645
|
|
Plug-Pipe
|
8T6761
|
|
Plug-Cup
|
4N0932
|
|
Plug-Cup
|
3P1896
|
|
Plug-Cup
|
1006816
|
|
Plug-Pipe
|
7X7731
|
|
Gasket oil inlet
|
210019 (409266-0004, 210019-0000, 201049, 129119, 409266-0003)
|
|
Gasket (oil outlet)
|
210018 (409267-0002, 1S4810, 3519763, 3500682, 3709738, 9738, 9988, 201048, 129120)(1900000025)
|
|
Gasket (turbine outlet)
|
210255 (4W2359)
|
|
Gasket (turbine inlet)
|
1215736
|
1.Our main products are turbocharger,turbo cartridge/chra/core,nozzle rings,electric actuator valve ,turbo repair kit and so on
2.We usually supply original size turbo ,and also we can modify size according to customers requirement .
3.Our own factory ,high quality and lowest price .
4.Our aim is :quality assurance ,credit first ,mutual benefit ,customers first .
Products show
Packages
plastic paper, shock bubble, neutral carton,pallet or as your requirements
CVE Electron Beam Welding from UK
Studer CNC grinding machine from Switzerland
Okuma CNC machine from Japan
Schenck balancing machine from Germany
Booshiwheel has attended the Auto exhibition in Thailand ,Turkey,Dubai, Russia,Germany,U.S.A and Panama in 2018 year
Why you choose us?
1.We are Assessed Gold Supplier and trade assurance .
2.We have our own factory , best production capability ,best quality control, Best Service .
3. Inspected by the Inspection Institution of SGS /CE /ISO.
4. 100% qualified inspection Before Shipment .
Company Profile
1.Wuxi Booshiwheel Power Technology Co,Ltd.,established in 2002,is engaged in designing and producing turbochargers and turbo parts that are used in vehicle and engineering machinery.We can also provide maintenance and technological services.
2.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.
3.The company’s business concept are “make contribution to the development of society by technology” and “talent is the biggest and unique wealth”,focus on manufacturing global the most cost-effective turbochargers.
Last ,we are looking forward to cooperating with you .
Welcome to inquiry!
