New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper

New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper thumbnail-1
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper thumbnail-2
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper thumbnail-3
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper thumbnail-4
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper photo-1
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper photo-2
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper photo-3
New Style Turbo TD04-11G 49177-07612 28200-42540 Turbocharger With 4D56 Engine for Truck L200, Pajero, Galoper photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Overseas Office:
Yes
Contact Supplier Request Quote Chat Now
Sunshinepower (wuxi)co.,ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper





Contact Person: Asura Zou
Tel No    /   Whats app: 0086 13912471025
Skype: asura.zou77
TradeManager: cn1516179703cqtf
Line: asura_azi
We Chat: zouziyu_Azi
FAX:0086 0510 83595327
QQ: 3251713281
Web: http://wuxibswe.en.china.cn





Production  Description


Part Number 49177-07612
Model TD04-11G
OE number 28200-42540
Displacement 2.5L, 2476/2477 ccm

Description

SuitforTruckL200,Pajero,Galoper with 4D56 engine
CHRA 49377-08510
Testing Pass high speed balancing test
Engine

4D56
Speed 140000
KW 73
Cooled Type Oil Cooled
RPM MAX 4000
Brand Booshiwheel
Bearing Housing 49177-25420
Turbine Wheel 49177-25100
Certificate BV/GMC/TUV/ISO9001
Silicon molybdenum  High temperature & pressure resistance
Fuel Type Diesel
Year 96-98
Turbine Housing 49177-15122
Compressor Cover 49177-55880
Actuator 49177-19100

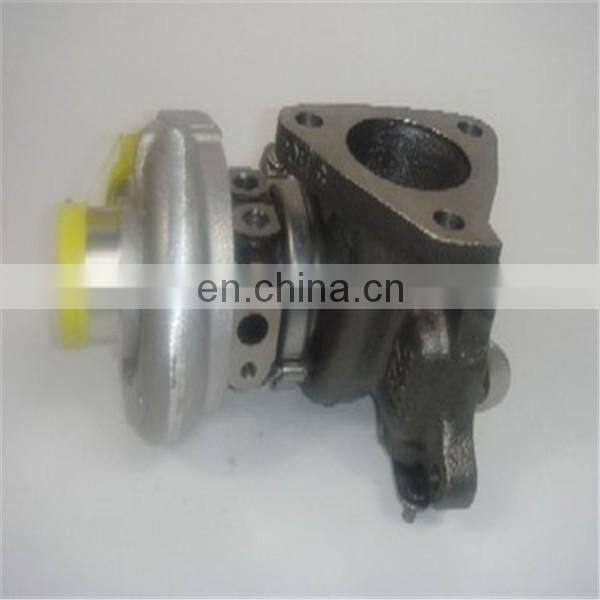

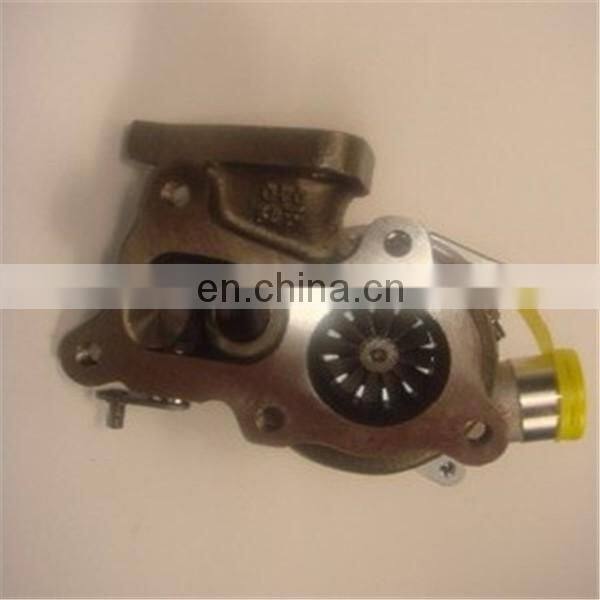

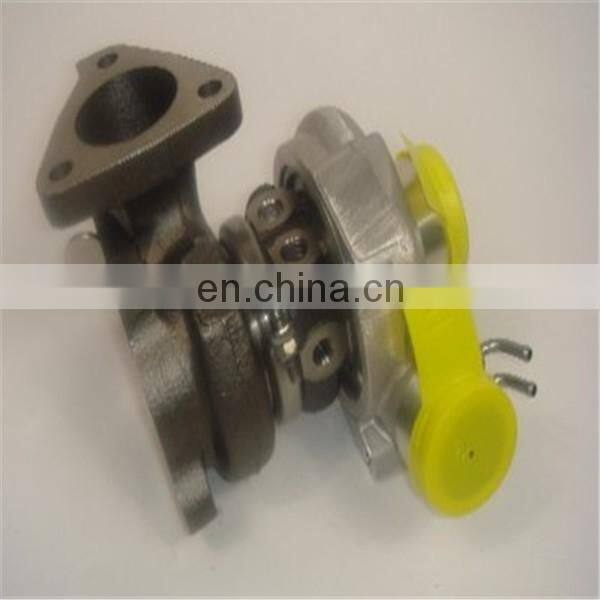

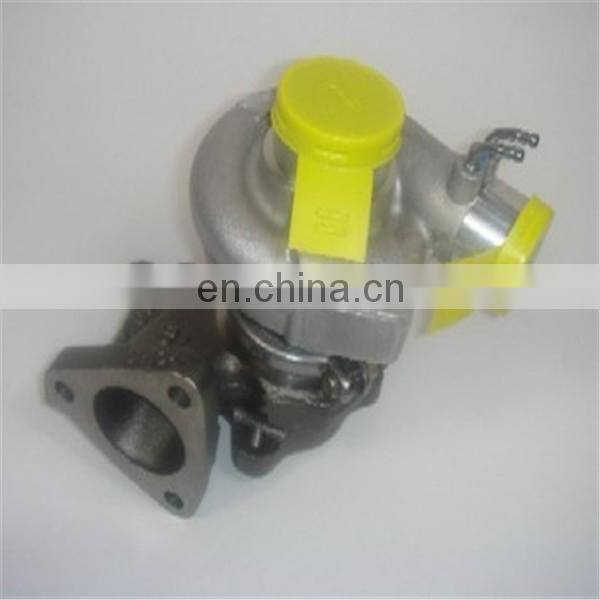

Product  Show

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper





Related Series

Model

Part  Number

OEM

Application

Engine

TD04

49177-01512

MR355222

L200

4D56

TD04

49177-01510

MD106720



4D56



49177-02511

MD094740







49177-01501

MD168053







49177-01500

49177-01511





TD04

49177-01515

49177-02513



4D56/4BB1



49135-02100

49135-02110







49177-02500

28200-4A210





TD04

49135-04121

28200-4A201

D4BH Starex

4D56A-1 2.5LD

TD04

49177-02400

MD168264

6G72 Left



TF035

49135-03101

49135-03100

Delicia Cars

4M40 2.8L



49135-03130

49135-03311







ME202012

ME21677





TF035

49135-03310

49135-03033

Pajero,FUSO Canter

4M40 2.8L



49377-03031

49377-03043





TF035

49135-02920

1515A123

Shogun,Pajero,Montero 4M41

3.2L 4M41

TF035

49135-02652

MR968080

L200,W200-Shogun

4D56

TF035

1515A041





4M41

VT10

1515A029

VC420088

Truck L200/W200

2.5TD 4D5CDI

TD025L-07G

49173-01400

A30507

Galant VR4 4WD V6



TD05

49178-00550

6208-81-8100

4D31T

4BD1



49178-00500

49189-00500







ME080098

ME013134





TD05H

49178-02320

49178-03122

Truck 4D34T1

2.5L



ME014878

28230-41500







Packing & Shipping

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper

Warehouse & Sample room

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper



Equipment

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper

Machine Testing

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, GaloperNew style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper



Our Advantages

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper



FAQ

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper

Welcome to inquiry at your convenience.Thank you!

New style turbo TD04-11G 49177-07612 28200-42540 turbocharger with 4D56 engine for Truck L200, Pajero, Galoper
