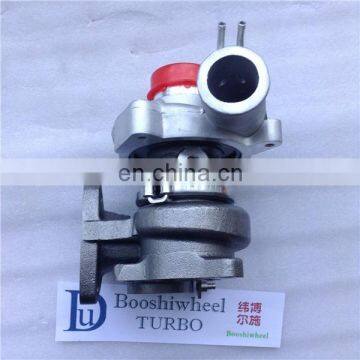

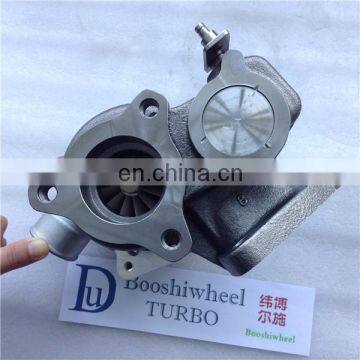

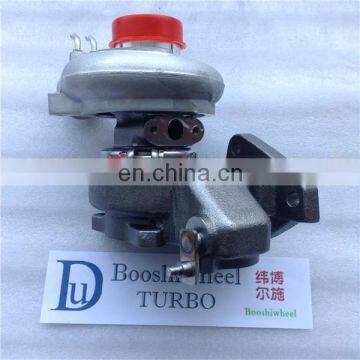

TD04 49177-01510 turbo charger oil cooling 4D56 engine L300 L200 Pajero Diesel 2.5L TD04 49177-01504 TD04 49177-01502
Welcome to contact us :
Whatsapp / Wechat :+86 18262294090 Skype : _15
QQ: 1127776325
Products description
Car make:
1992-1996 Mitsubishi L 200 2,5L TD 4WD (K_4T) with 4D56 Engine
1988-1996 Mitsubishi L 300 2,5L TD 4WD (P25W,P25V) with 4D56 Engine
1986-1989 Mitsubishi Pajero I 2.5L TD with 4D56 Engine
1989-1990 Mitsubishi Pajero I 2.5 TD with 4D56 Engine
1990-1991 Mitsubishi Pajero II 2.5 TD with 4D56 Engine
Part Number |
49177-01510 |
Previous Part Number |
49177-01511, 49177-01511 |
OE Number |
MD168053, MD168054, MD094740 |
Year |
89-90 |
Description |
Mitsubishi Shogun |
CHRA |
49177-08020 |
Turbo Model |
TDO4-10T/4, TD04 |
Engine |
4D56, 4D56DE |
Engine Manufacturer |
Mitsubishi |
Displacement |
2.5L, 2477 ccm |
Fuel |
Diesel |
KW |
64/87 HP |
Bearing Housing |
49177-25100 |
Turbine Wheel |
49177-30130 |
Back plate |
49173-22500 |
Heat shield Number |
49170-19100 |
Repair Kit |
49177-80410 |
Turbine Housing |
49377-15310 |
Turbine Housing AR |
4 |
Gasket (turbine inlet) |
210501 |
Gasket (turbine outlet) |
210502 |
Gasket (oil outlet) |
210243 |
Manufacturer |
Mitsubishi |
Products show
Turbo parts
The turbocharger parts including Turbo Chra ( turbo core / cartridge ) , Turbo actuator valve, Nozzle Ring ,Repair kit ,Compressor wheel,Turbine wheel,Turbine shaft , Journal bearing ,Thrust collar,Bearing housing ,Turbine housing,Compressor housing,Bypass-valve and so on
Test machine
All turbos are passted strict test,high temperature,high pressure,corrosion resistance,high speed
Why you choose us?
1.We are Assessed Gold Supplier and trade assurance .
2.We have our own factory , best production capability ,best quality control, Best Service .
3. Inspected by the Inspection Institution of SGS /CE /ISO.
4. 100% qualified inspection Before Shipment .
Company Profile
1.Wuxi Booshiwheel Power Technology Co,Ltd.,established in 2002,is engaged in designing and producing turbochargers and turbo parts that are used in vehicle and engineering machinery.We can also provide maintenance and technological services.
2.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.
3.The company’s business concept are “make contribution to the development of society by technology” and “talent is the biggest and unique wealth”,focus on manufacturing global the most cost-effective turbochargers.
Last ,we are looking forward to the cooperation with you .
Welcome to inquiry!
