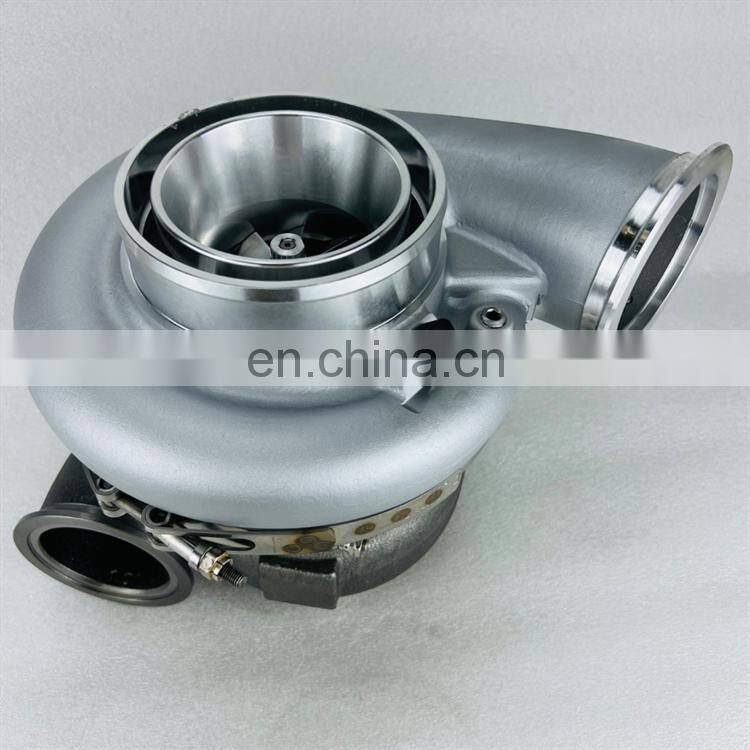

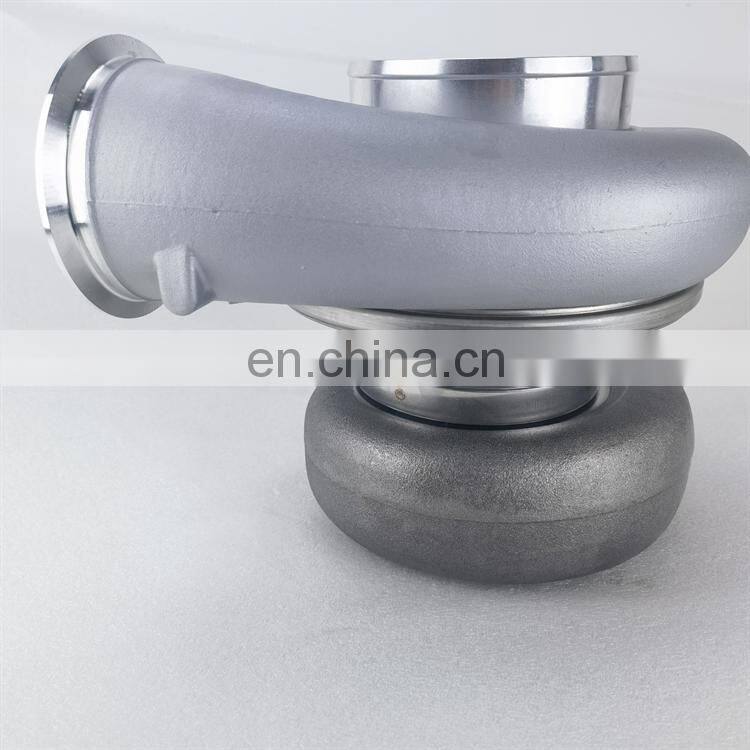

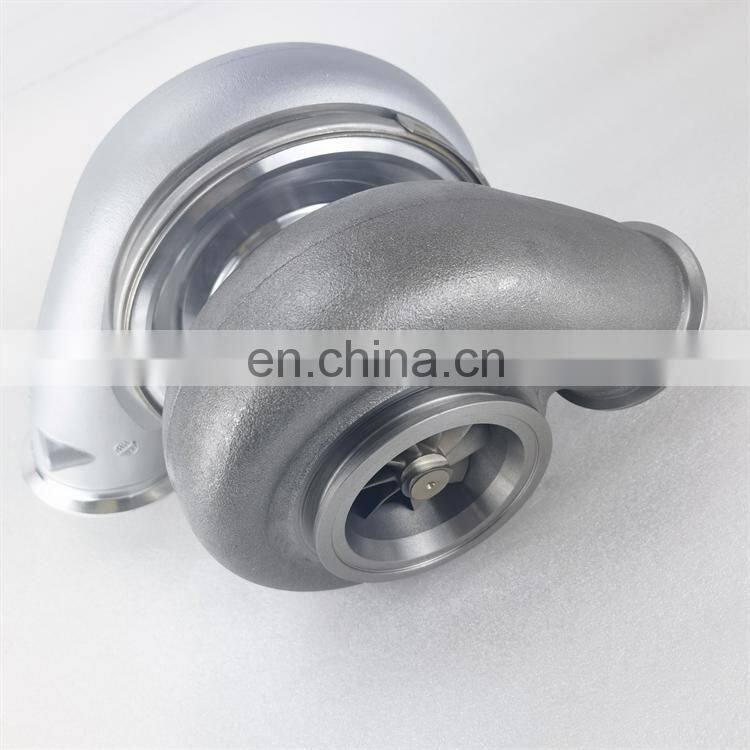

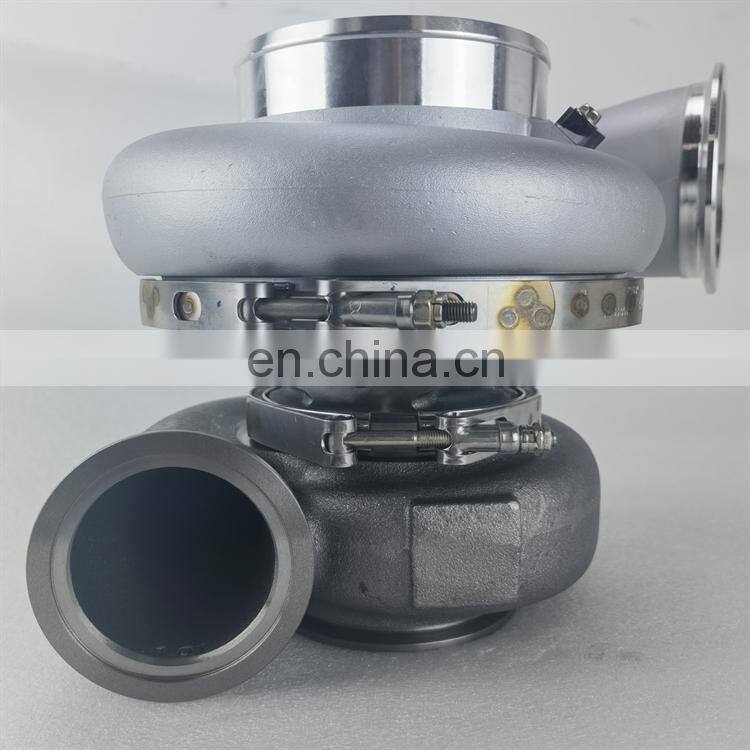

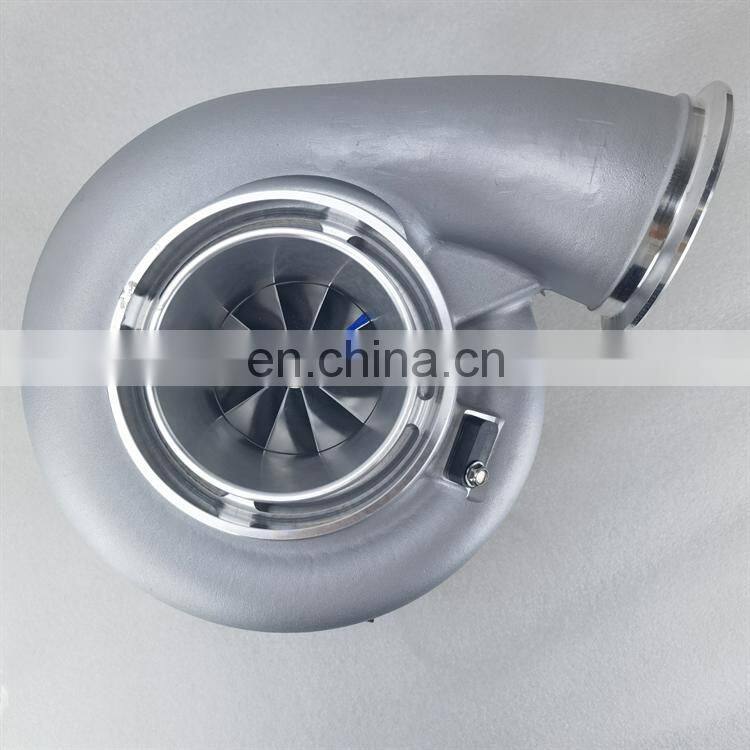

G42 1200 Turbo G42-1200 A/R 1.01 V Band Standard Rotation Cast Iron Ball Bearing Turbocharger
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
G42 1200 Turbo G42-1200 A/R 1.01 V Band Standard Rotation Cast Iron Turbocharger
-
G35 Turbo Standard Rotation AR 0.61 V-Band 1.4848 Turbine Housing 880696 for G35-900 G35-1050
-
G35 1050 G35-1050 Turbo 880695-5002s Standard Rotation Ball Bearing Stainless Steel Turbocharger
-
F55V Modify Turbocharger RHF55V Engine 4HK1 Turbocharger 8980277723 8982096510 8980277725 VDA40016
-
Modify Turbocharger RHF55V 898027 7723 898209 6510 898027 7725 F55V VDA40016 Engine 4HK1 Turbo
-
F55V VDA40016 Modify Compressor Housing RHF55V 8980277723 8982096510 VDA40016 Engine 4HK1 Turbo 8980277725
Product Description
G42 1200 Turbo G42-1200 A/R 1.01 V band standard rotation cast iron turbocharger
Welcome to contact us :
November Gao.
Mob/Wechat/WhatsApp: 8618912476630
produtct description
| Turbo Model |
G42-1200 |
| part number |
879779-5007S |
| Rotation | standard |
| Condition | Brand New |
- The new G42 Series line of turbochargers features the latest Garrett Motion technology. This 100% clean sheet product has many advanced features. New Compressor aerodynamics deliver up to 1450 horsepower. High flowing Inconel turbine wheel handles up to 950 degrees. New 8mm ball bearing cartridge is compact in size allowing us to produce a narrower center housing.
- Horsepower: 475 - 1200HP
Displacement: 2.0 - 7.0L - Garrett® G Series Compressor Aerodynamics (10 blades) for maximum HP.
- Fully machined Speed Sensor and pressure ports.
- Turbine Wheel Aero constructed of Inconel super alloy rated 950ºC
- Stainless Steel non wastegated turbine housing capable of 950°C.
- Oil restrictor and water fittings included.
- Standar rotation.
- Compressor side: TRIM 65 A/R 0.85
- Compressor Air Inlet: Hose
- Compressor Air Outlet: V-Band 4.20" (107.00mm)
- Turbine side: TRIM 84 A/R 1.01
- Turbine Inlet: V-Band 3.60" (92.00mm)
- Turbine Outlet: V-Band 4.30" (109.00mm)
- Bearing housing: Water and Oil cooled system.
- Product Features:
- Quick spooling, high horsepower solution for 2.0 liter up to 7.0 liter engine platforms
- Ten blade, forged, fully-machined G Series compressor wheel with high flowing aero
- Low inertia compressor wheel resulting in faster boost response
- New turbine aero wheel flows 10% more and has peak efficiency of 77% (Compared to GTX42 at 74% with 1.01A/R)
- Engineered with inconel super alloy to withstand operating temperatures up to 950C
- Product Specifications:
- Compressor Wheel Inducer: 73mm
- Compressor Wheel Exducer: 91mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.85
- Turbine Wheel Inducer: 82mm
- Turbine Wheel Exducer: 75mm
- Turbine Wheel Trim: 84
- Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed flange (-4 AN with built-in Restrictor): ATP-FLA-040
- Oil feed gasket: GRT-GSK-011
- Oil drain flange: ATP-FLA-009 (Other oil drain flange options)
- Oil drain gasket: GRT-GSK-007
V-Band Compressor Outlet Flange/Clamp Set: ATP-FLS-055 V-Band Inlet Flange (for Turbo Manifold): ATP-FLS-379 V-Band Inlet Clamp: CLC-CLA-291 V-Band Outlet Flange (for Downpipe): ATP-FLS-380 V-Band Outlet Clamp: CLC-CLA-292
NOTE: Alternate coolant and oil fittings and flanges are available.
