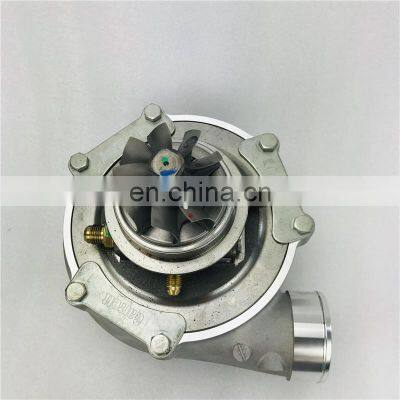

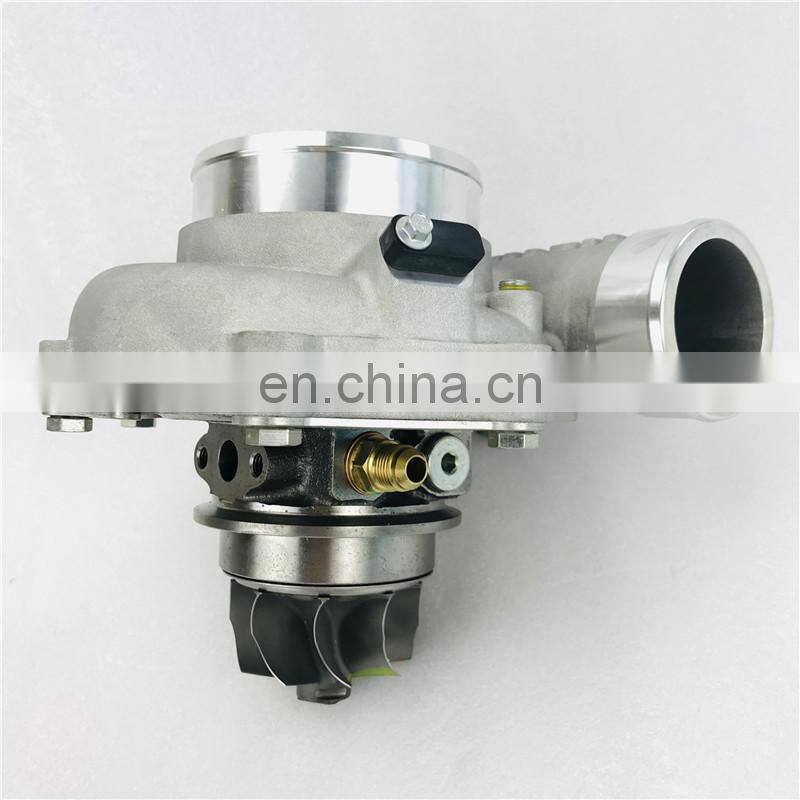

Genuine G35-1050 Standard Rotation 880695-5002S 880695-5002 880695 Supercore Turbocharger

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Turbo Model	G35-1050
part number	880695-5002S 880695-0002
Rotation	Standard
Condition	Brand New

Horsepower: 700 - 1050HP
Displacement: 2.5 - 5.5L
Garrett^® G Series Compressor Aerodynamics for maximum HP.
Fully machined Speed Sensor and pressure ports.
New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
Oil restrictor and water fittings included.
Reverse rotation.
Compressor side: TRIM 65 A/R 0.75
Compressor Air Inlet: Hose 4.00" (101.60mm)
Compressor Air Outlet: Hose 2.00" (51.15mm)
Bearing housing: Water and Oil cooled system.

Product Description:
Garrett® G35-1050 REVERSE Rotation Supercore (Turbo without turbine housing).
Product Features:
New G Series compressor wheel aerodynamics
Fully machined speed sensor and pressure ports
Standard and reverse rotation configurations available
Oil restrictor and water fittings included with purchase
One piece center housing and backplate for increased durability
4 water jacket ports for customizable installation
Mar-M turbine wheel material rated up to 1050° C | 1922° F
Product Specifications:
Compressor Wheel Inducer: 68mm
Compressor Wheel Exducer: 84mm
Compressor Wheel Trim: 65
Compressor Housing A/R: 0.72
Turbine Wheel Inducer: 68mm
Turbine Wheel Exducer: 62mm
Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
Oil feed fitting with .035" restrictor: ATP-OIL-021
Oil drain flange: Product Code: ATP-FLA-010
Oil drain gasket: Product Code: GRT-GSK-008
Oil drain fasteners: Product Code: MIA-FST-034
Boost Pressure Port Fitting: ATP-FTG-198

NOTE: Alternate coolant and oil fittings and flanges are available.

Packaging & Shipping

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Technique

CVE Electron Beam Welding from UK

Studer CNC grinding machine from Switzerland

Okuma CNC machine from Japan

Schenck balancing machine from Germany

Company Profile

Wuxi Booshiwheel Power Technology Co.,Ltd is specialized in manufacturing turbochargers used for various vehicles and ships, including car, pickup truck, light truck, SUV and mechanical engineering. Our factory was established in 2003 in Wuxi City, covering an area of 3,000 square meters. Our business is comprehensive, integrating industry and trade. Our turbocharger is complete and varied for different engines and brands.
Our company has introduced advanced assembly lines from Japan, production lines, high-speed balancing and advanced detection equipment and produced a series of new items which can pass the test of the market.
The principle of our company is to provide high-quality turbochargers, professional service, and honest communication. Welcome all friends to place trial order for creating a long-term business relationship.
