Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > Ship Turbo MY58 RHC61W 6T582 VD24007 VA240076 119171-18010 119171-18011 Turbocharger for Yanmar Marine 3.5L 4LH-TE Engine

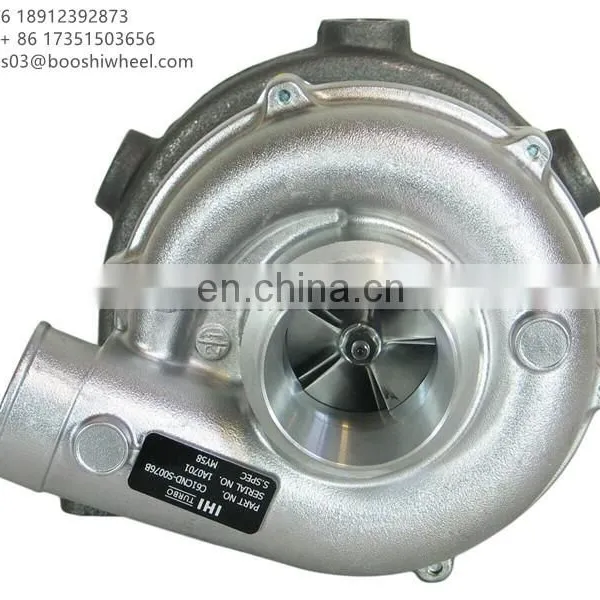

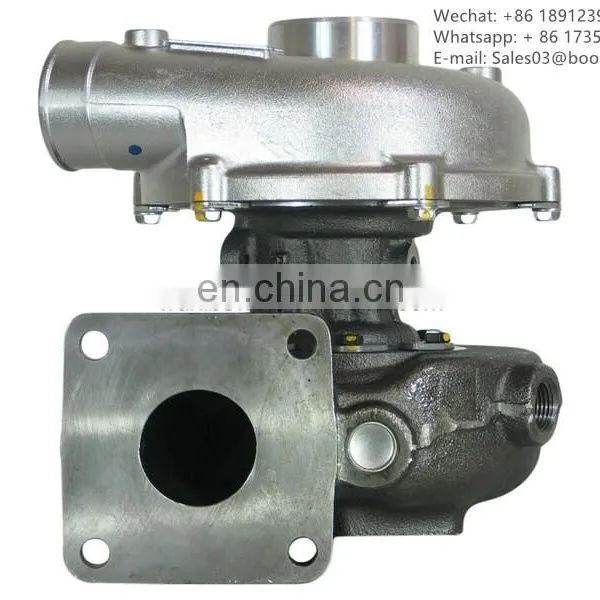

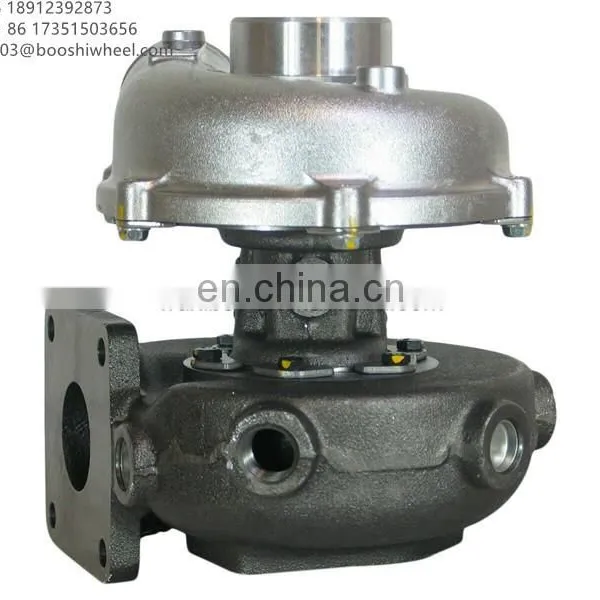

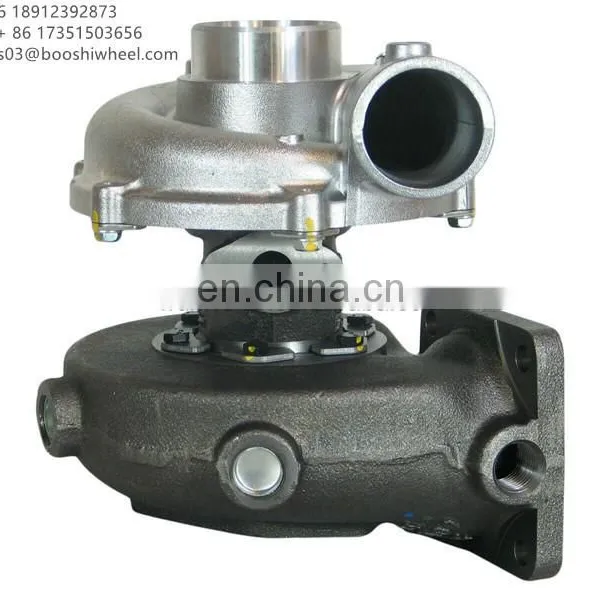

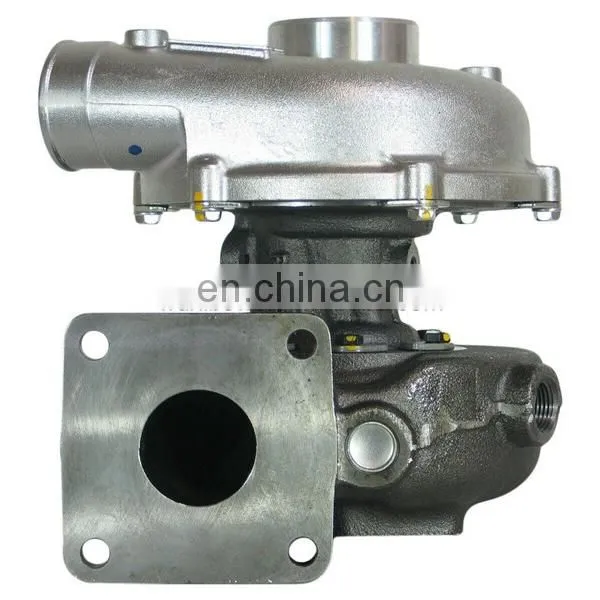

Ship Turbo MY58 RHC61W 6T582 VD24007 VA240076 119171-18010 119171-18011 Turbocharger for Yanmar Marine 3.5L 4LH-TE Engine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BTV7501 5260200805 471084-0008 5260201005 23540088 R23540088 Turbo for DDC-MTU Genset With 12V4000 EngineNegotiableMOQ: 1 -
RHC6W 119173-18040 VC240101119173-18041 MYDH Turbo for Yanmar Marine With 4LHA-DTE Engine C61CND-S0101B C61CND-S0101GNegotiableMOQ: 1
-
RHC6W MYDA Turbocharger 119175-18030 119175-18031 VD240090 C61CAD-S0090G 4LHA-STE EngineNegotiableMOQ: 1
-
BTV7501 714322-0003 23540089 471084-5006S Turbocharger for DDC-MTU Genset With 12V4000 Engine 714322NegotiableMOQ: 1
-
RHC7 Turbo Charger 126677-18011 126677-18010 VA290051 VB290051 VC290051 12667718011 Engine 6LY3 6HY-ETNegotiableMOQ: 1
Ship turbo MY58 RHC61W 6T582 VD24007 VA240076 119171-18010 119171-18011 Turbocharger for Yanmar Marine 3.5L 4LH-TE Engine
Product Description
Specification
Part Number |
VD24007 |
Previous Part Number |
6T-582, 6T582, NH160022, VA240076, VB240076, VC240076 |
OE number |
11917118010, 119171-18010, 1-19171-18010, 119171-18011, C61CND-S0076B, C61CNDS0076B |
V-SPEC. |
MY58 |
Year |
1988-01 |
Description |
Marine |
CHRA |
N/A |
Turbo Model |
RHC61W-1183P20NWBRL504A |
Engine |
4LH-TE, HT-4LH |
Fuel |
Diesel |
Displacement |
3455 ccm, 4 Cylinders |
KW |
110 HP |
Fuel |
Diesel |
Angle α (compressor housing) |
70° |
Angle β (turbine housing) |
182° |
Bearing Housing |
NH163155 (Oil Cooled) |
Turbine Wheel |
NH161402 (NH161312, NH165203)(Wheel BR504A)(Ind. 56.33 mm, Exd.30.91 mm, 11 Blades) $306.98 |
Comp. Wheel |
NH165203 (NH161300)(Ind. 45.63 mm, Exd. 65. mm, 5+5 Blades, Superback) $1007.42 NEW IN STOCK |
Back plate |
NN193012 $61.40 NEW IN STOCK |
Heat shield Number |
NH261107 |
Repair Kit |
NH169836 (NN169836) $151.17 NEW IN STOCK |
Turbine Housing (Water Cooled) |
NH167519 (NE967160) $1040.69 |
Compressor Cover |
NH164602 (NE964530) $365.90 |
Turbine Housing AR |
20 |
Gasket (turbine inlet) |
210235 (Stainless Steel) $33.00 |
Gasket (oil outlet) |
210161 (128300-1323, Gasket paper) |
Applications:
Yanmar Marine with 4LH-TE Engine
Yanmar Marine with 4LH-TE Engine
