Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for Ship With 3406E Engine

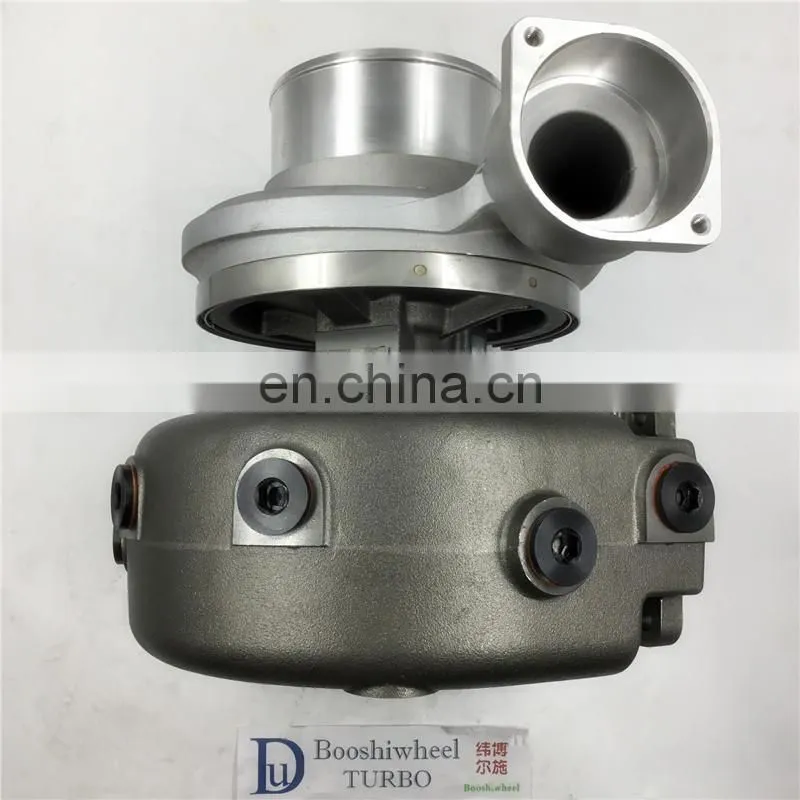

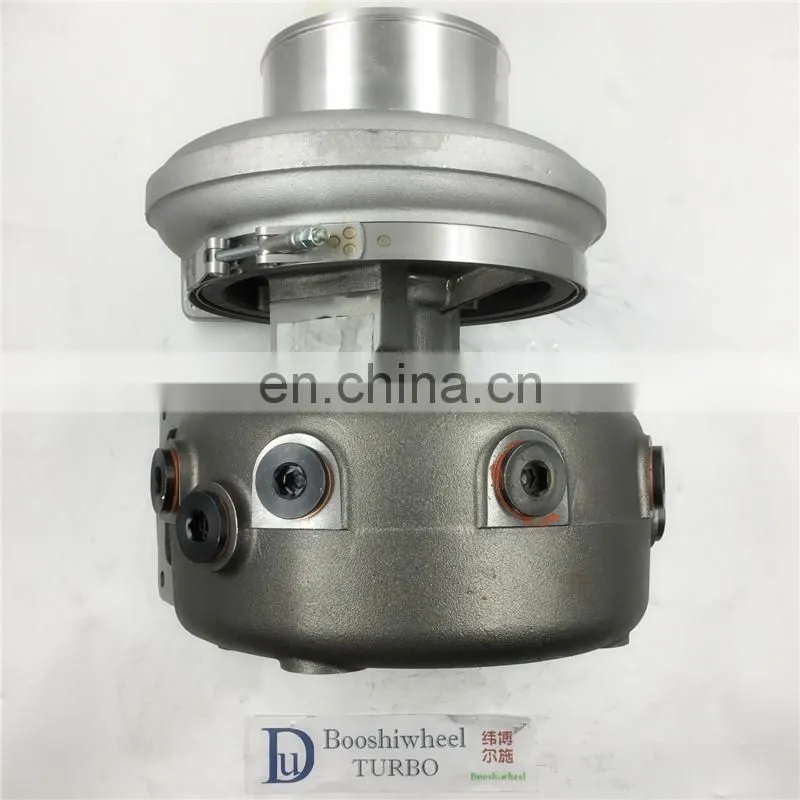

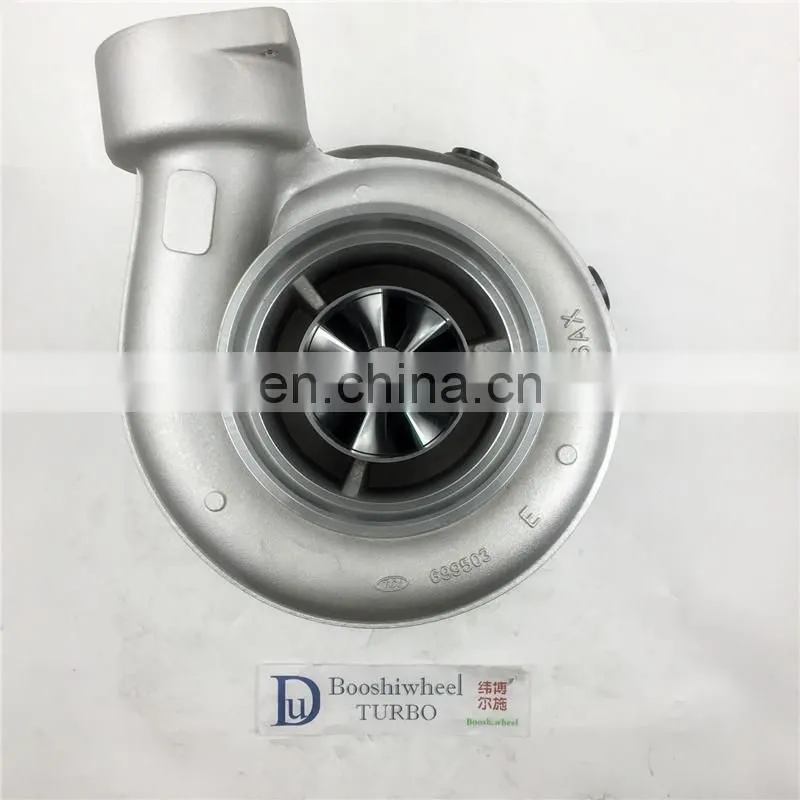

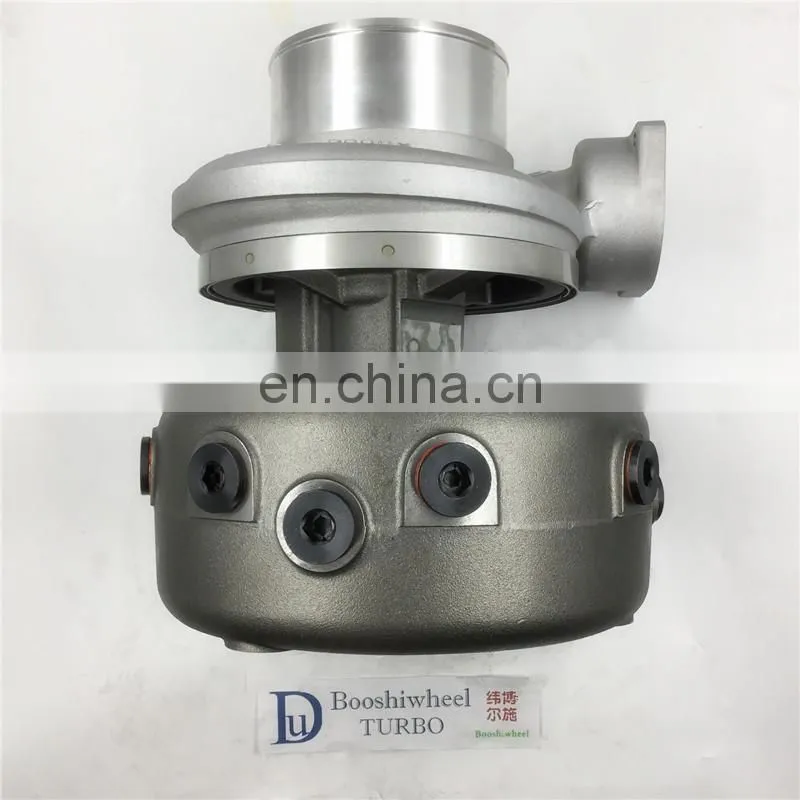

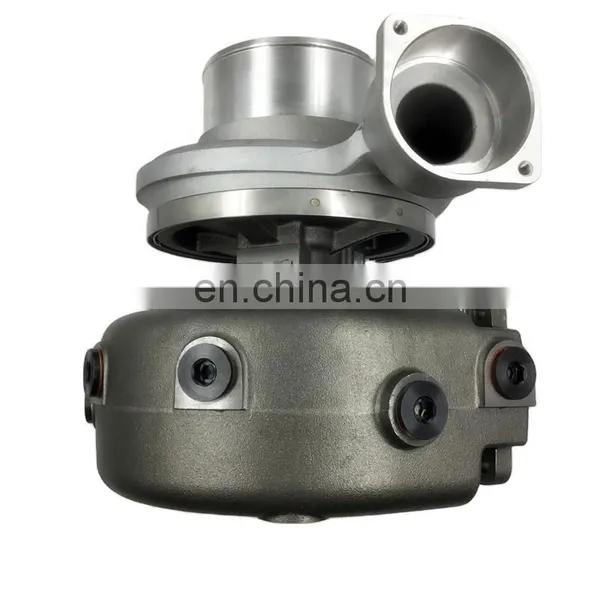

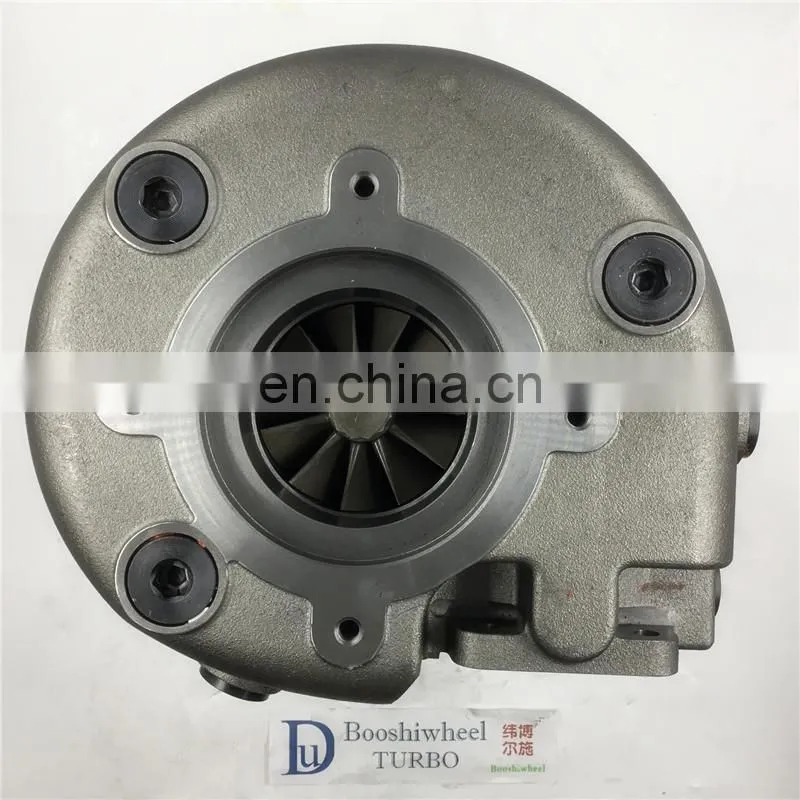

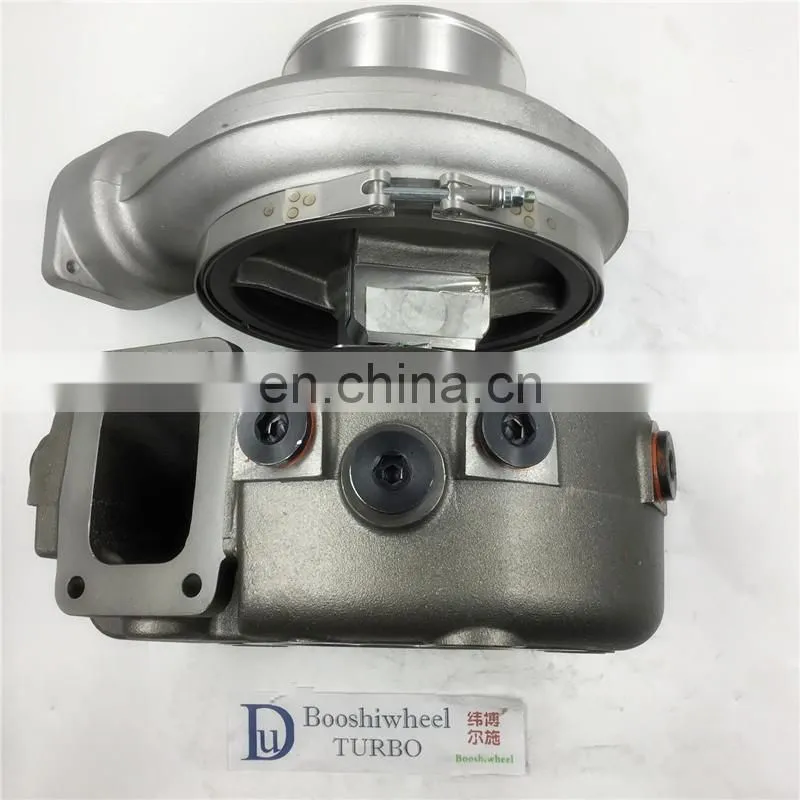

Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for Ship With 3406E Engine photo-1
Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for Ship With 3406E Engine photo-2
Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for Ship With 3406E Engine photo-3
Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for Ship With 3406E Engine photo-4
Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for Ship With 3406E Engine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Overseas Office:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E Engine



Part Number 471111-5001S
Previous Version 471111-0001, 471111-1, 471111-9001
OE number 131-8687, 1318687, 0R-7094, 0R7094
Description Ship, Marine
CHRA 449530-0016 (449530-5016S, 1318688, 0R7094)
Turbo Model UTW8501
Engine 3408E
Engine Marine 3406E
Engine Manufacturer Caterpillar
Displacement 14600 ccm, 6 Cylinders
KW 450/550 HP
Fuel Diesel
RPM 2300
S/N 9WR00001-UP
Bearing Housing 449072-0001 (Oil Cooled)
Turbine Wheel 449587-0001 (Ind. 111.45 mm, Exd. 97.1 mm, 11 Blades)
Comp. Wheel 441831-0017
Back plate 442732-0005
Heat shield Number 409794-0002 (407657-0008)(4P6527)
Repair Kit 711494-0001 (468267-0010)(176-4259, 125-5375)(1101085750)
Turbine Housing (Water Cooled) 409339-0204 (1318689, 23506458)
Compressor Cover 443892-0031 (1318690)
Turbine Housing AR 1.03
Plug-Cup (Standard) 3B0645
Plug-Cup (Standard) 4N0932
PLUG-CUP (Optional) 3P1896
Plug-Cup 1006816
Gasket (turbine inlet) 409038-0001 (210835-0000, 9749, 7M7273, 7H1558, 8N2835)
Gasket oil inlet 129119 (201049, 210019-0000, 409266-0003, 409266-0004)
Gasket (oil outlet) 210018 (210018-0000, 129120, 409267-0002, 201048, 157602, 3037537, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025)







Product Show



 Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E EngineTurbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E EngineTurbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E EngineTurbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E EngineTurbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E EngineTurbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E Engine

Turbo parts



Applications

Caterpillar Ship with 3406E Engine



 Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E Engine
Packing & Shipping







Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E Engine







Turbocharger TW8501 471111-5001S 471111-0001 471111-1 471111-9001 131-8687 1318687 0R-7094 for  Ship with 3406E Engine





                    Our       Company





1.Wuxi  Booshiwheel  Power Technology Co,Ltd. ,specialized in manufacturing turbochargers . Our factory was established in 2003 in Wuxi City .



2.The company has a wide range of products ,including Turbocharger for all types of vehicles, Turbine housing, Compressor housing ,Nozzle ring ,Cartridge, Actuator ect.



3.The company has imported Japanese advanced equipments,such as assembly line,processing production line and high speed balance,as well as the latest testing facilities.
