insulation transformer material insulation crepe kraft paper
1 Description:

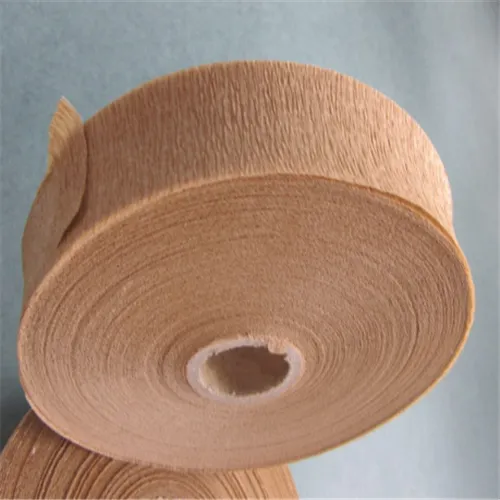

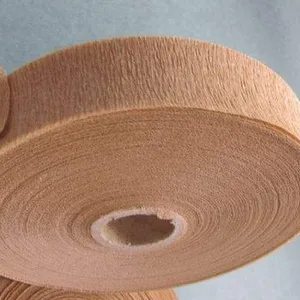

insulation transformer crepe paper is produced from base papers weighing 25 - 180 g/m2,(15 -111 lbs/ream) and has an elongation of between 15 to 80 %. They are available in master rolls of up to 1200 mm and slit width in a big variety of customer specified inside and outside diameters. Some of the grades are also traverse wounds. Insulation Crepe Paper is made of 100% superior sulfate insulating wood pulp.
2 Advantages:
Insulation material has excellent electrical, mechanical, and impregnating properties. Transformer insulation paper also has excellent tensile strength, reliable heat resistance,ce and good voltage characteristic.

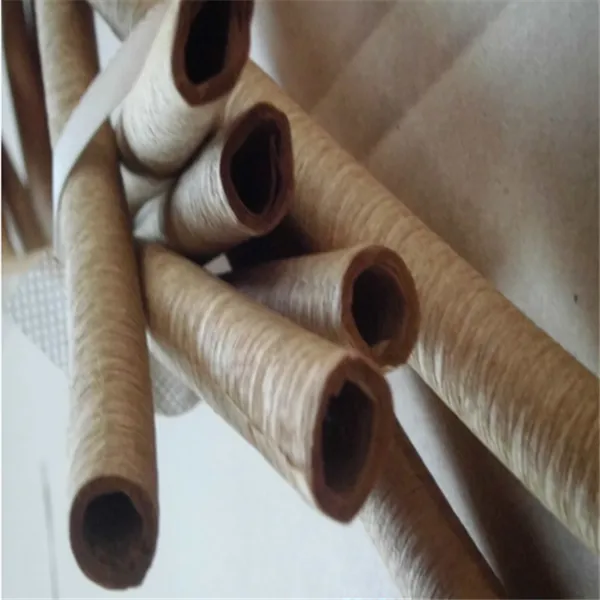

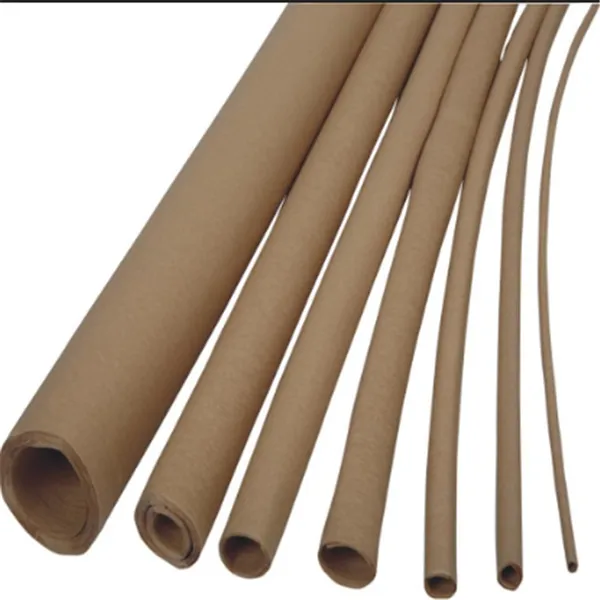

Crepe kraft paper is ideally suited to insulate irregular shapes and surfaces where proper insulation can not be reached with flat papers. Specialties were developed for applications such as magnet wire insulation, layer insulation, current transformers, in RIP bushing,s or shielding material.
insulation transformer material insulation crepe kraft paper
| S.N. | ITEM | UNIT | ORIGINAL PAPER THICKNESS | |||||||||
| 0.05mm | 0.075mm | 0.08mm | 0.13mm | |||||||||
| 1 | Crepe paper thickness | mm | 0.35±0.05 | 0.38±0.08 | 0.40-0.60 | 0.70-0.90 | ||||||
| 2 | Ash content | less% | 0.7 | 0.7 | 0.8 | 0.8 | ||||||
| 3 | Moisture | less% | 7 | 7 | 8 | 8 | ||||||
| 4 | Ether extract | less% | 0.3 | 0.3 | ||||||||
| 5 | Water extract PH | 6.0-8.0 | 6.0-8.0 | 6.0-8.0 | 6.0-8.0 | |||||||
| 6 | Pollution oil | less% | 0.1 | |||||||||
| 7 | Tensile strength | Longitudinal | N | 30 | 40 | 45 | 50 | |||||
| Transversal | N | 20 | 30 | 35 | 40 | |||||||
| 8 | Flexibility of crepe paper | % | 50 | |||||||||
| 9 | Breakdown voltage | V / layer | ≥950 | ≥1000 | ≥1000 | ≥1000 | ||||||
| 10 | Conductivity | ms/m | ≤9.0 | ≤10 | ||||||||
| 11 | GSM | g/m2 | 60±10% | 110±10% | 110±10 | |||||||
We also CNC to your CAD drawing, cut to size customized, and sell full sheets in quantity.
Please call our Sales Department for information.
Shenyang Youda Insulation Materials - Insulation Material Specialist for supporting Transformer and Electric machinery. Shenyang Youda Insulation Materials Co., Ltd. was founded in 1990 as, a private high-tech enterprise with R&D, production, sales, and exporting.
Our company specializes in producing, processing, and selling different kinds of insulation materials, such as laminated boards, bars, tubes, molded products, composite materials, dipping materials, insulating paper, insulating ribbons, insulation varnishes, mica products, and engineering plastics. Our products are widely used fotransformerser, electric machinery, mutuainductorsor, electrireactorsor, heavy industry machinery, mine, railway, aerospace and so on.
Our company takes the core value of technology - leading, supreme customers, honesty, and trustworthiness. Safety production, quality guaranteed, and eco-friendly materials are our promises. All the staff in Youda will provide high-quality products and the best service for domestic and abroad customers through our exquisite technology and our best work style.
If you need anything, click here to contact us.
(1). Q: Can you give me a discount price?
A: It depends on the volume.
(2). Q: Why is your price higher than other suppliers?
A: We can offer products of different quality levels depending on the customer’s target price and quality requirement.
(3). Q: How can I get a sample?
A: Noncustom samples are free of charge. You only pay for the goods. We promise to deliver the sample within 48 hours.
(4). Q: How can you guarantee the quality of mass production is the same as the sample sent to me before?
A: Our process wi based on the samples which are the same as yours.
(5). How do I know the progress of my product?
The production department uploads the production schedule every day, you only need to consult the customer service staff.
