Products Description：
| Product Model： | HDEV5003 | ||||
| Interface Standard | Type2：IEC62196 | ||||
| Rated Current： | 16A | 32A | Rated Current： | 16A | 32A |
| Rated Power: | 3.5KW | 7KW | Rated Power: | 11KW | 22KW |
| Cable Spec: | 3*2.5m㎡+2*0.75m㎡ | 3*6m㎡+2*0.75m㎡ | Cable Spec: | 5*2.5+2m㎡*2*0.75m㎡ | 5*6m㎡+2*0.75m㎡ |
| Operation Voltage: | AC 250V | Operation Voltage: | AC 480V | ||
| Contact Resistance: | 0.5MΩ Max | Contact Resistance: | 0.5MΩ Max | ||
| Mechanical Life: | No-Load Plug In / Pull Out >10000 Times | Mechanical Life: | No-Load Plug In / Pull Out >10000 Times | ||
| Rated Frequency: | 50Hz/60Hz | Rated Frequency: | 50Hz/60Hz | ||
| Leakage Protection: | TDC 6mA (Optional) | Leakage Protection: | TDC 6mA (Optional) | ||
| Fuction | RFID Card,APP | Fuction | RFID Card,APP | ||
| Status Indication: | LCD Status Indicator | Status Indication: | LCD Status Indicator | ||
| Flame Retardant Grade: | UL94 V-0 | Flame Retardant Grade: | UL94 V-0 | ||
| Withstand Voltage: | 2000V | Withstand Voltage: | 2000V | ||
| Relative Humidity: | 5%-95% | Relative Humidity: | 5%-95% | ||
| Operation Temperature: | -30℃+55℃ | Operation Temperature: | -30℃+55℃ | ||
| Storage Temperature: | -40℃+70℃ | Storage Temperature: | -40℃+70℃ | ||
| Waterproof Protection: | Ip55 | Waterproof Protection: | Ip55 | ||
| Standard: | EN61000-6-1/3, IEC 61851-21-2, IEC 62196-1, IEC 62196-2, EN300 328,EN 301 489, EN 300 330, EN 62311 |
Standard: | EN61000-6-1/3, IEC 61851-21-2, IEC 62196-1, IEC 62196-2, EN300 328,EN 301 489, EN 300 330, EN 62311 |
||
| Certification: | TUV, UKCA CE Approved | Certification: | TUV, UKCA CE Approved | ||
| Protection : | 1. Leakage Current Protection 2. Over Current Protection 3. Over Voltage Protection 4. Under Voltage Protection 5. Over Temperature protection 6. Low Temperature Protection 7. Short Circuit Protection 8. Surge Protection 9. Overload Protection (self-checking recovery) |
Protection : | 1. Leakage Current Protection 2. Over Current Protection 3. Over Voltage Protection 4. Under Voltage Protection 5. Over Temperature protection 6. Low Temperature Protection 7. Short Circuit Protection 8. Surge Protection 9. Overload Protection (self-checking recovery) |
||
| Rated Current： | 30A | 50A | Rated Current： | 30A | 50A |
| Rated Power: | 7KW | 11.5KW | Rated Power: | 7KW | 11.5KW |
| Cable Spec: | 3*10AWG+2*018AWG | 2*8AWG+1*10AWG+2*018AWG | Cable Spec: | 3*10AWG+2*18AWG | 2*8AWG+1*10AWG+2*18AWG |
| Operation Voltage: | AC 240V | Operation Voltage: | AC 240V | ||
| Contact Resistance: | 0.5MΩ Max | Contact Resistance: | 0.5MΩ Max | ||
| Mechanical Life: | No-Load Plug In / Pull Out >10000 Times | Mechanical Life: | No-Load Plug In / Pull Out >10000 Times | ||
| Rated Frequency: | 50Hz/60Hz | Rated Frequency: | 50Hz/60Hz | ||
| Leakage Protection: | TDC 6mA (Optional) | Leakage Protection: | TDC 6mA (Optional) | ||
| Fuction | RFID Card,APP | Fuction | RFID Card,APP | ||
| Status Indication: | LCD Status Indicator | Status Indication: | LCD Status Indicator | ||
| Flame Retardant Grade: | UL94 V-0 | Flame Retardant Grade: | UL94 V-0 | ||
| Withstand Voltage: | 2000V | Withstand Voltage: | 2000V | ||
| Relative Humidity: | 5%-95% | Relative Humidity: | 5%-95% | ||
| Operation Temperature: | -30℃+55℃ | Operation Temperature: | -30℃+55℃ | ||
| Storage Temperature: | -40℃+70℃ | Storage Temperature: | -40℃+70℃ | ||
| Waterproof Protection: | Ip55 | Waterproof Protection: | Ip55 | ||
| Standard: | UL 2594 3rd Ed, UL 2231-1-2021,UL 2231-2-2020, UL 1998 3rd, UL 991-3rd Ed |
Standard: | UL 2594 3rd Ed, UL 2231-1-2021,UL 2231-2-2020, UL 1998 3rd, UL 991-3rd Ed |
||
| Certification: | UL, ETL, FCC Approved | Certification: | UL, ETL, FCC Approved | ||
| Protection : | 1. Leakage Current Protection 2. Over Current Protection 3. Over Voltage Protection 4. Under Voltage Protection 5. Over Temperature protection 6. Low Temperature Protection 7. Short Circuit Protection 8. Surge Protection 9. Overload Protection (self-checking recovery) |
Protection : | 1. Leakage Current Protection 2. Over Current Protection 3. Over Voltage Protection 4. Under Voltage Protection 5. Over Temperature protection 6. Low Temperature Protection 7. Short Circuit Protection 8. Surge Protection 9. Overload Protection (self-checking recovery) |
||

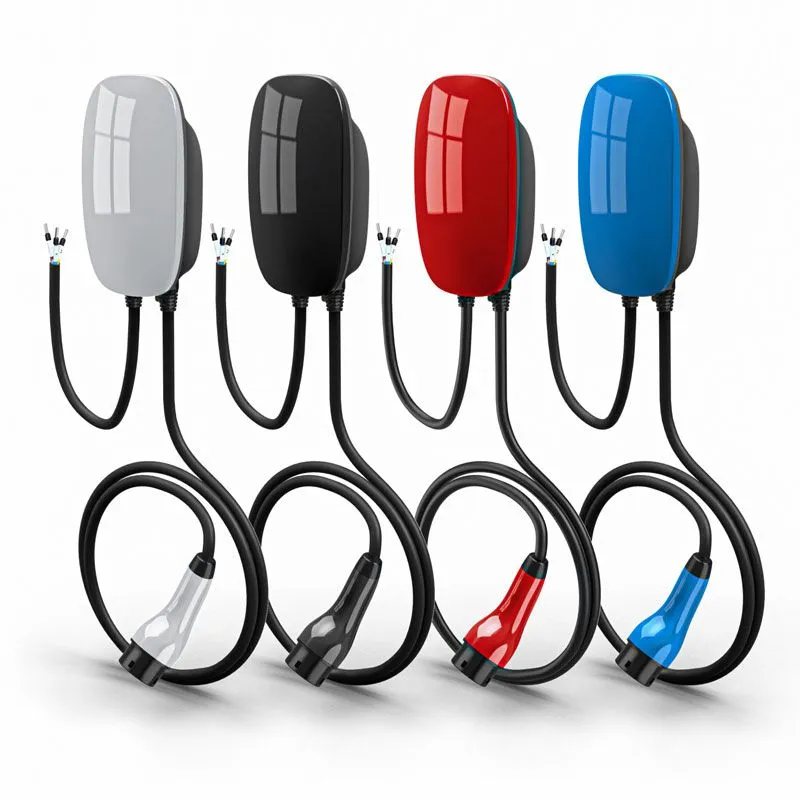

Product display
HuiZhou HD Era Technology Co., Ltd. is a professional supplier of electric vehicle parts,products include electric car charging plug and sockets，EV Charging Cables，Portable EV Charger, Discharge Gun，can meet the needs of different customers, we also provide customized OEM/ODM labeling services, according to the needs of domestic and foreign customers to increase research and development and production efforts, Provide more customized products in line with the market, and provide customers with the most cost-effective solutions.
Welcome all walks of life's friend's presence and guidance. We sincerely hope to establish long-term cooperation with customers domestic and abroad.
OEM/ODM SERVICES
MEYAGET can provide ODM and OEM services according to customer requirements, we will create a team for customer projects, and recommend and design products according to customer preferences, for all customer requirements, we will combine the actual situation and professional knowledge to give you satisfactory advice:
1. Contact with our salesman,tell us your demand;
2. Provide the materials you need;
3. Provide design, production and delivery time;
4. After-sales service
FAQ:
Q: Can I get samples from your factory?
A: Yes.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Q:What’s the delivery time ?
A: sample need 3-5 days；The production cycle is 25-45 days
Q. What is the standard of package?
A. Export standard package or special package according to customer requirement.
Q. Do you accept OEM business?
A. Yes, we are OEM supplier.
Q. what kind of certificate you have ?
A .We have CE, TUV and UL certification
Q. Does the company offer insurance?
A . Yes, all of the company's products are purchased by Pacific Insurance.
