WET-2008A Laser Diffraction Particle Size Analysis

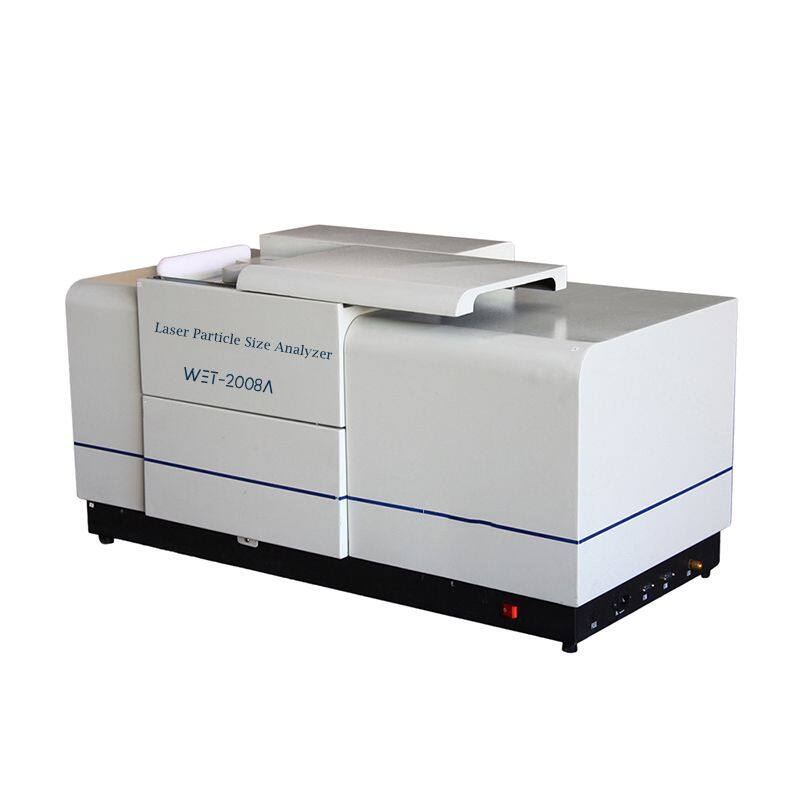

WET-2008A Liquid Laser Particle Size Analyzer Introduction:

WET-2008A fully automatic wet laser particle size analyzer measures particle size from 0.01 to 2000 micron, offers reliable and repeatable particle size analysis for a diverse range of applications. It uses dual-beam & multi-spectral detection systems, by side light scatter testing technology to significantly improve precision and performance of data.

WET-2008A Wet Laser Particle Size Analyzer Main Specifications:

WET-2008A Wet Laser Particle Size Analyzer Main Features:

• 1. Automatic optical path alignment system

The precision of four hybrid stepping motor in the automatic system of optical components, micro precision of 0.1um, the instrument of light path is always at its best status, further enhance the accuracy and stability of test results.

2. Intelligent operation mode

With intelligent automatic mode of operation, click the "test", all processes including water-supply, dispersion, circulation, testing, cleaning, data record, data analysis, save and print are automatically completed, not only reduce the testing workload, but also eliminate the interference of human factors, to further improve the accuracy and authenticity of testing results.

3. Full built-in dispersion system

The ultrasonic dispersion, mechanical stirring, and circulation channel reasonable integrated in the interior of the instruments, ensure the uniform dispersion and distribution of particles in the testing process, effectively avoid uneven distribution, large particle deposition phenomenon caused by long pipe line of outside dispersion system, to ensure the accuracy of the test results.

4. Patented optical path design

Converging light Fourier transform light patented technology, make scattering light not be restricted to lens aperture. Double spectrum design makes its precision achieves from 0.01um to 2000μm, and dual-laser orthogonal light make use of the semiconductor auxiliary laser extend the test angle from 45 degree to 135 degree, ensure receive all the angles of signals.

5. Accredited calibration

In the entire testing range by using the national standard materials for calibration, once a year, steps are simple and quick.

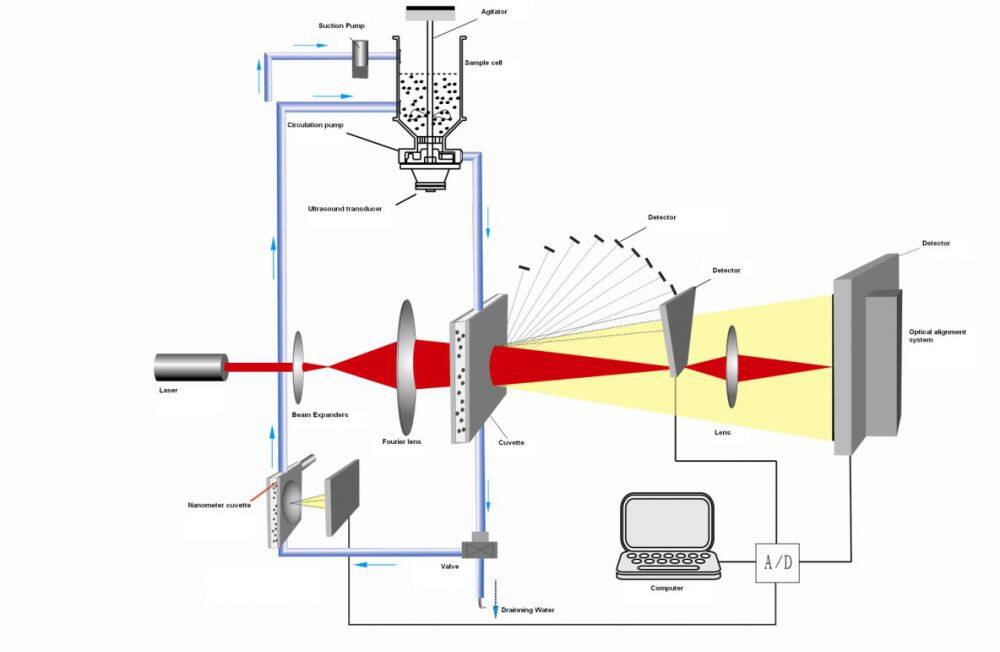

 laser particle size analyzer working principle schematic

WET-2008A Wet Laser Particle Size Analyzer Application:

Cement, ceramic, medicine, emulsion, dope, dye, padding, chemical products, catalyst, drilling fluid, abrasive, lubricant, braize, cell, germ, food, additive, pesticide, explosive, graphite, photosensitive material, fuel, ink, metal and nonmetal powder, calcium carbonate, kaolin, water-coal-slurry and other powder materials.
