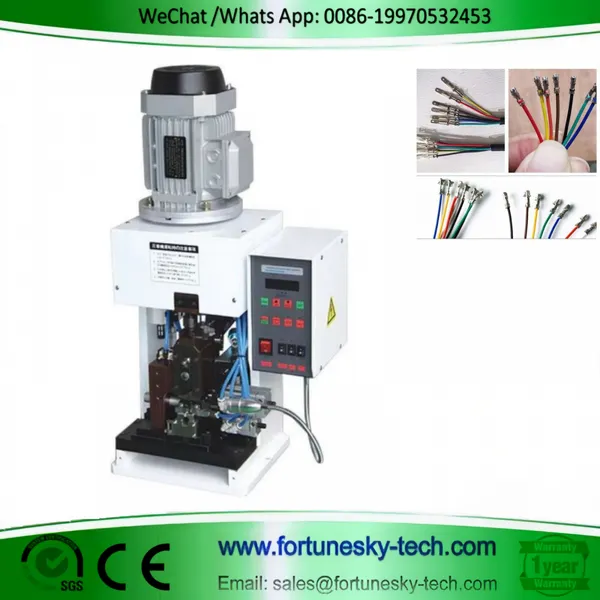

This innovative benchtop machine revolutionizes your wire processing workflow by combining stripping and crimping functionalities in a single, powerful solution. Designed for efficiency and versatility, it tackles multicore cables, especially ultra-fine and shielded wires, with exceptional performance.
Key Features:
Combined Stripping and Crimping: Streamlines your workflow by performing both stripping and crimping tasks in one step, saving time and effort.
Ultra-Fine Wire Compatibility: Specifically designed to handle delicate wires, including ultra-fine and shielded types, ensuring precise processing.
Quiet, High-Speed Operation: Delivers fast and efficient processing while maintaining a quiet operation ideal for workshops.
Minimal Power Consumption: Offers energy-efficient operation without compromising on performance.
Automatic Scrap Removal: Maintains a clean workspace by automatically removing wire scraps during processing.
Adjustable Speed Control: Provides flexibility to accommodate various skill levels and project requirements.
Durable Pneumatic Components: Ensures reliable and consistent crimping for a wide range of terminals and connectors.
Technical Specifications (Available in Two Models):
| Feature | Model 1 | Model 2 |
|---|---|---|
| Power Supply | Single Phase 200V-240V 50/60Hz (Customizable) | Single Phase 200V-240V 50/60Hz (Customizable) |
| Motor Power | 400W | 750W |
| Air Source | 0.3-0.4 MPa (Dry, Clean Air) | 0.5-0.6 MPa (Dry, Clean Air) |
| Dimensions (W x L x H) | 530mm x 400mm x 830mm | 500mm x 450mm x 1000mm |
| Weight | 70 Kg | 100 Kg |
| Applicable Wire Diameter | AWG36# - AWG20# (Wire Dependent) | AWG16 - AWG24 (Wire Dependent) |
| Applicable Wire Types | AV, AVS, AVSS, CAVUS, KV, KIV, UL, V Teflon, Fiber Wire, etc. | UL, IV Teflon, Fiber Thread, etc. |
| Stripping Length | 1.0mm - 10.0mm | 1.0mm - 8.0mm |
| Tangent Error | 0.05mm - 0.1mm | 0.05mm - 0.1mm |
| Position Error | 0.05mm - 0.1mm | 0.05mm - 0.1mm |
| Crimp Terminal | Open Continuous Terminal, Horizontal Open Continuous Straight Terminal | Open Continuous Terminal, Horizontal Open Continuous Straight Terminal |
| Pressing Ability | 1.5 Tons | 2 Tons |
| Stripping Stroke | 20mm | 20mm |
This All-in-One Wire Stripping and Crimping Machine is a perfect solution for anyone who needs to process multicore cables, especially delicate ultra-fine and shielded wires, with efficiency and precision. This user-friendly machine offers a combination of valuable features, quiet operation, and customizable options to elevate your wire processing experience.
