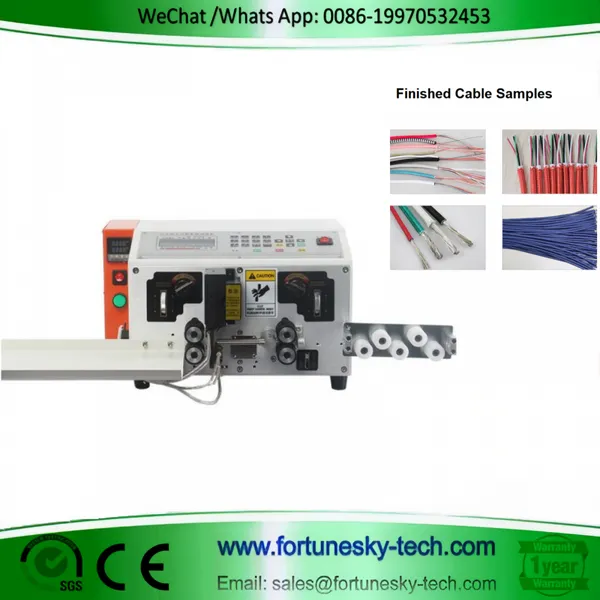

Introducing the HWN-220: Your High-Temp Wire Stripping Solution
The HWN-220 Automatic High-Temp Wire Stripping Machine tackles even the most challenging high-temperature wires with ease. This innovative machine boasts a unique combination of features, making it ideal for various applications.
Built for High-Temperature Wires:
Specially Treated Tool Holder: The tool holder can withstand temperatures up to 400°C, allowing for safe handling even during operation.
Imported Heating Tube: The high-performance heating tube reaches temperatures up to 450°C for efficient heat transfer.
Titanium Alloy Heating Gasket: This durable gasket is resistant to rust, corrosion, and oxidation, minimizing blade replacements and maintenance needs.
Unmatched Versatility:
Broad Wire Compatibility: Handles a variety of braided and insulated wires, including braided OD5.5 cotton, cloth thread, leather braided wire, and TPE outer sheath wire.
Wide Range of Processing Parameters: Process wires with diameters from 1.5mm to 6mm, and stripping lengths from 1-35mm (front) and 1-50mm (rear), providing maximum flexibility.
Efficient and User-Friendly Design:
High Production Rate: Delivers an output of 1800-2000 strips per hour per meter, ideal for high-volume production environments.
Adjustable Features: Fine-tune cutting and stripping lengths, wire diameter, stripping pressure, and speed for optimal results on various wires.
User-Friendly Controls: The bilingual (Chinese/English) display simplifies operation and parameter adjustments.
Technical Specifications:
Product Name: Automatic High-Temp Wire Stripping Machine
Model: HWN-220(Thermal)
Dimensions: 450mm x 450mm x 360mm
Weight: 36kg
Display: Chinese/English
Power Supply: AC220V, 50Hz
Power Consumption: 420W
Cutting Length: 1.0mm-999mm
Cutting Tolerance: Adjustable
Stripping Length: Front: 1-35mm, Rear: 1-50mm (material dependent)
Applicable Wire Diameter: 1.5mm to 6mm
Output: 1800-2000 pieces per hour per meter
Tool Material: Tungsten Steel
Stripping Speed: Adjustable (Faster)
Wire Diameter Adjustment: Adjustable
Stripping Quality: Excellent
High Precision Decimal Point: Yes
Drive Mode: Four-wheel Simultaneous Drive
Pressure Adjustment During Stripping: Adjustable
Speed Adjustment: 0-1
The HWN-220 Automatic High-Temp Wire Stripping Machine is a powerful and versatile solution for all your high-temperature wire processing needs. This innovative machine tackles challenging materials with ease, offering exceptional efficiency, user-friendly features, and minimal maintenance requirements.
