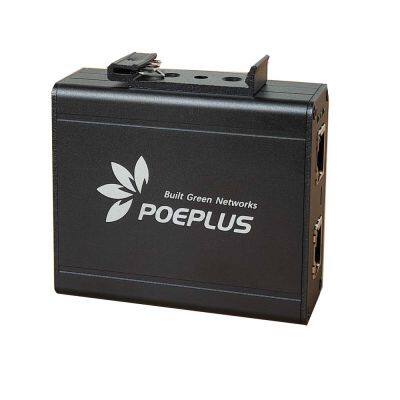

EC550-SK
Dual power input 150W DIN-Rail Industrial PoE Injector
Description
EC550-SK150 is a reliable IP40 rated Industrial Gigabit passive POE Injector with hardened components rated for extreme and rugged industrial environments. Connect the EC550-SK150 industrial PoE injector data port to a Non-PoE switch or router, and then run an Ethernet cable up to 100 meters (328 ft.) to power a PD device（Pay special attention to the terminal device which have to support the corresponding DC power input, otherwise the device will be damaged). Both DIN-rail and wall mount hardware are optional with the industrial PoE injector.
Features
l IP40 rated Gigabit max 150w POE Injector
l Passive POE 1236+ 4578-
l Power antenna up to 100m (328 ft.) away
l Extreme -40 to 80 °C operating temperature range
l Support DC inputs
l DIN-rail mount and wall mount accessories optional (DIN in default)
l Dual power input, support 12-48Vdc input max 180w input
Typical topology
Specifications
Model | EC550-SK150 |

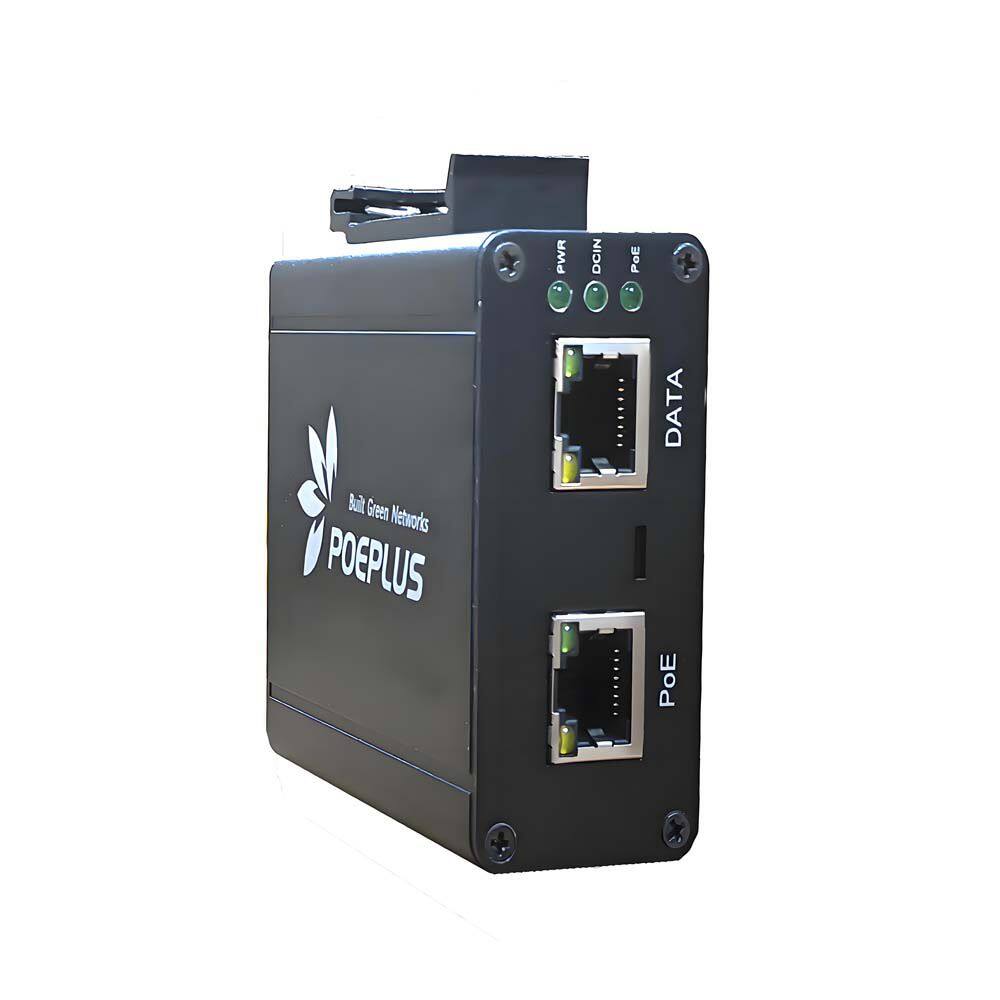

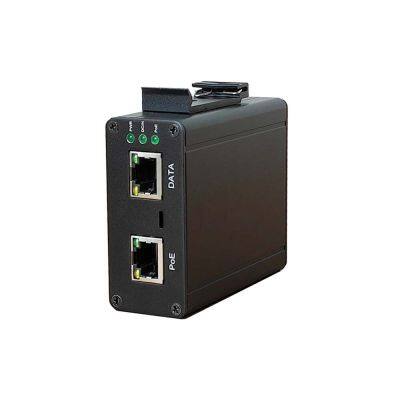

Port | 1*RJ45*10/100/1000M Data IN |
1*RJ45*10/100/1000M PoE OUT | |

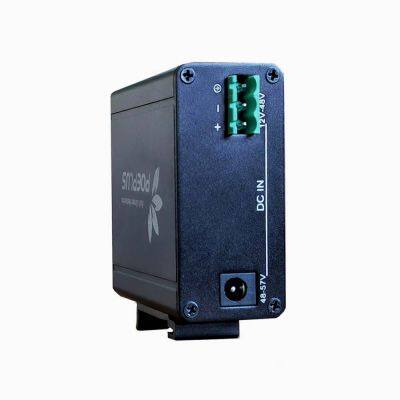

1* DC IN (2P) power terminals 1* DC 5.08mm (3P) power terminals | |
Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3ab |
DC IN | DC(2P)：48-57V MAX 3A DC(3P)：12-48V MAX 15A |
Boost efficiency | 85%-97%(12-48V) |
PoE Output | 48V=DC |
Poe Out Watt | MAX 150W |
Data Pin | 1234,5678 |
PoE Out | 1236+ 4578- |
Indicator | Power input，power output |
Transmission | 10Base-T: two pairs of Cat3 or latter UTP/STP(≤250m) 100Base-TX: two pairs of Cat5 or latter UTP/STP(≤150m) 1000Base-T: for pairs of Cat5e or latter UTP/STP(≤100m) |
Features | Plug and play without more configuration management Reliability：MTBF＞100k hours |
Lightning Protection | 6KV 8/20us；6KV ESD protection |
Protect grade | IP40 |
Operation Environment | Operation Temperature：-30℃～70℃ Storage Temperature：-40℃～85℃ |
Operation Environment Specifications | Operation Humidity：10%～90% RH Non coagulation Storage Humidity：5%～90% RH Non coagulation |
Product size：85mm*70mm*32mm (L*W*H) Weight：0.35kg | |
Warranty | 3 years |
