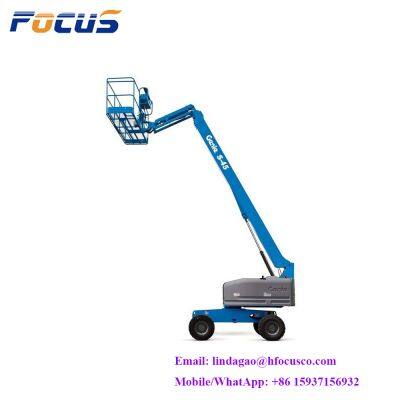

Hydraulic Towable Telescopic Boom Lift Tables Self-propelled Articulated Boom Lift for Building Construction Trailer Boom Lift
US$ 3000 - 60000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
GENIE
Place of Origin:
China
Model Number:
FOCUS157
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
Dongfeng Brand New 7 Seat Diesel Mini Coach Bus Van Left Hand Drive Mini Van,Delivery Van Coffee Van Mini Van Used Car Vans OriginalUS$ 6000 - 99999MOQ: 1 Unit -
Changan Cravel Trailer Truck Bed Camper Changan Caravan With Kitchen Bed Bathroom for Sale,China Road Motorhome Camper Travel TrailersUS$ 6000 - 49800MOQ: 1 Unit
-
Self Propelled Scissor Lift Platform Hydraulic Scissor Lift Jlg-R4045 R2632 Aerial Work Platform,Scissor Lift Rentals - 10 Ft. to 70 Ft. Maximum Lift HeightUS$ 3000 - 99999MOQ: 1 Unit
-
Scissor Lift - Scissor Lift Manufacturer,High Quality Jlg 8m 10m 12m Mini Hydraulic Battery Aerial Mobile Self Propelled Lift TablesUS$ 3000 - 49800MOQ: 1 Unit
-
High Quality Jlg 8m 10m 12m Mini Hydraulic Battery Aerial Mobile Self Propelled Lift TablesUS$ 9000 - 49850MOQ: 1 Unit
Brand Name
GENIE
Place of Origin
China
Model Number
FOCUS157
Certification
CE
After-sales Service Provided
Overseas third-party support available
Warranty
1 year
Weight
17700KGS
Power
200HP
Rated Loading Capacity
3t
Overall Dimensions
211.00cm * 152.00cm * 163.00cm
Min. Lifting Height
26M
Max. Lifting Height
21.44M
Table Size
211.00cm * 152.00cm * 163.00cm
Lift Drive / Actuation
Hydraulic
Lift Mechanism
Articulated Lift
Genie S65 4x4 21.8m Diesel Boom Lift Construction Equipment Diesel-powered S boom lift for sell
Genie® S®-65 XC telescopic boom offers a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial job sites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and job site materials.
Maximum capacity with a robust jib design to handle increased loads
Load sense technology for accurate load weighing and zero-load field calibration
Chassis tilt sensor technology maximizes access to hard-to-reach work areas
Onboard diagnostics maximize serviceability
Option to add the new Genie Lift Power™ generator system
| Genie S-65 XC Specifications | ||
| Measurements | Metric | US |
| Working height maximum | 21.81 m | 71ft |
| Platform height maximum | 19.81m | 65ft |
| Horizontal reach maximum | 16.51m | 54ft 2in |
| Below ground reach | 2.65m | 8ft 8in |
| Productivity | ||
| Maximum lift capacity - unrestricted | 300kg | 66lbs |
| Maximun lift capacity -restricted | 454kg | 1000lbs |
| Platform rotation | 160° | 160° |
| Vertical jib rotation | 133° (+ 79° /- 54°) | |
| Turntable rotation | 360° continuous | |
| Turntable tailswing | 1.41 m | 4 ft 7.5 in |
| Drive speed - stowed | 4.8 km/h | 3.0 mph |
| Drive speed - raised/extended | 0.3 m/s | 1 ft/s |
| Gradeability - stowed | 45% | 45% |
| Turning radius - inside | 2.40 m | 7 ft 9 in |
| Turing radius - outside | 5.50 m | 18 ft 2 in |
| Controls | 12V DC proportional | |
| Tyres | 355/55D 625 | |
| Power | ||
| Power source | Deutz D2011L03i, 48 hp (36 kW) | |
| Auxiliary power unit | 12V DC | 12V DC |
| Hydraulic tank capacity | 170 L | 45 gal |
| Fuel tank capacity - diesel | 132 L | 35 gal |
