Product Description

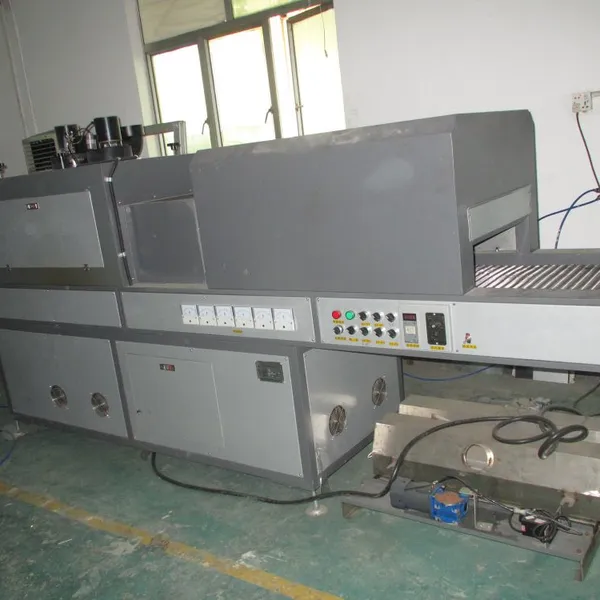

Machine size: L13500*D1100*H2250mm
A--: Rack part
1: The equipment body is made of 2.0T hot-rolled plate, bent and welded, and the surface is painted
2: Scaffold selection: Made of 1.5*50 square steel
3: Material bracket foot cup: using M16*150mm adjustable foot cup, adjustable range
B--: Conveying part
1: Conveying bandwidth: 700mm (material: stainless steel mesh and rod chain mesh belt)
2: Speed: 1-6/min variable frequency adjustable
3: Sprocket: Made of 5-point sprocket = 4 pieces
4: Conveyor drive: 2.2KW1: 60K horizontal reduction motor installation drive = 1 set
5: Loading area: 2 meters
6: Infrared leveling area: 6 meters
7: Empty section: 0.5 meters
8: UV curing area: 3 meters
9: Discharging area: 2 meters

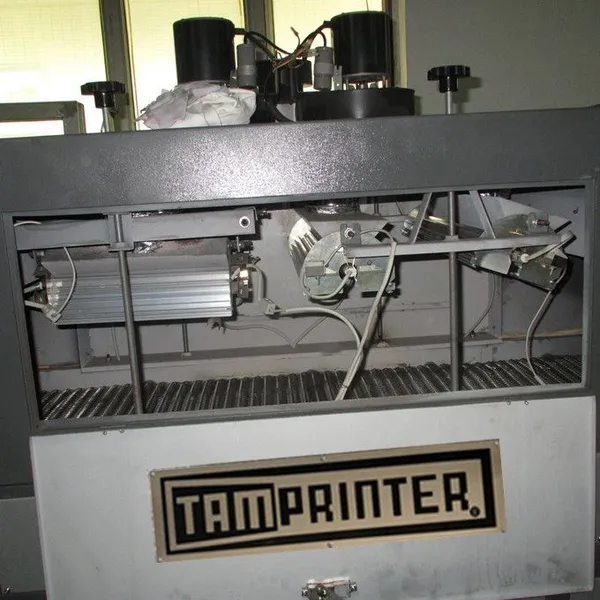

C--: UV curing part
1: UV system: 5.6KW*5 sets (transformer type)
2: UV lamp: 750Lmm/pc*5pcs
3: UV wavelength: 365nm
4: Cooling fan: 750W/2800 rpm = 3 units
D--: IR infrared part (6 meters, installed in 2 sections, single section 3 meters)
1: Outer box production: The outer box is made of 1.5T cold plate bending and welding, and the surface is painted
2: Domestic production: The surface of the inner box is packaged with 1.5T galvanized sheet
3: Heat insulation layer: Made of 50mm rock wool board for heat insulation

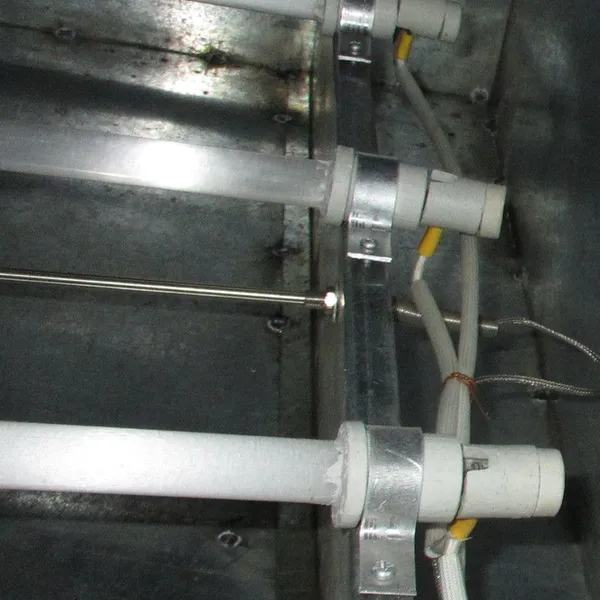

4: Heating lamp: installed with quartz glass heating tube
5: Heating power: 15KW single section * 2 sections = 30.7KW
6: Yunfeng motor: 370W long axis motor = 2 sets

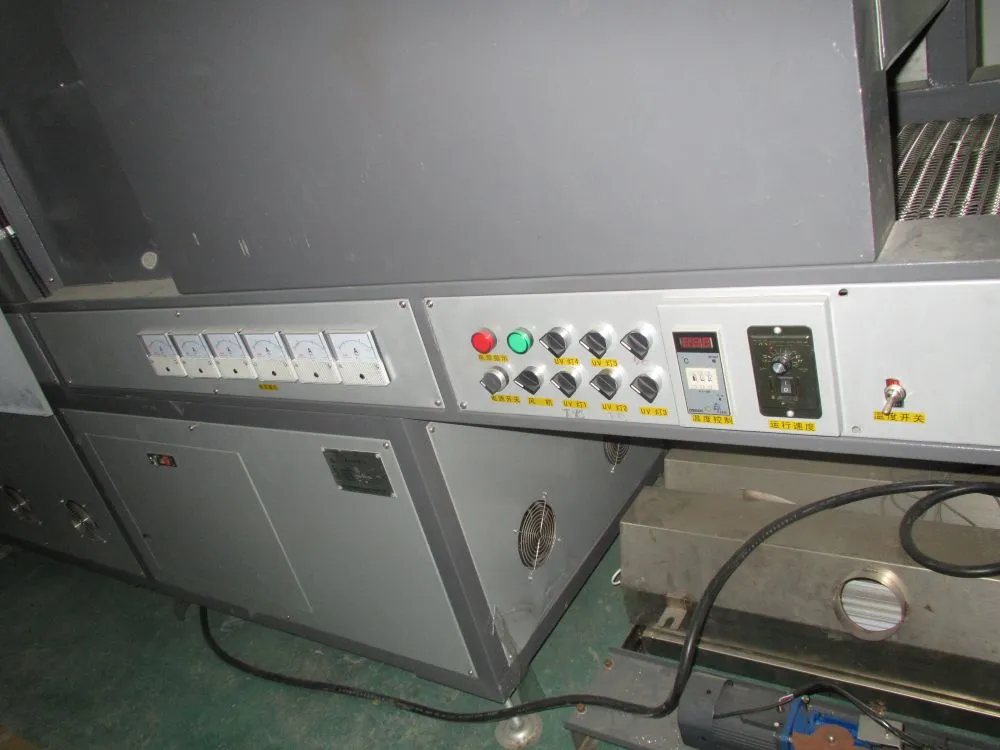

E--: Electrical part
1: Lamp tube: Paima brand
2: Fan: Super Yu fan
3: Control switch: Domestic famous brand Snyder brand
4: Switch control: Yijia brand
5: Wire: national standard domestic well-known brand Jinhuanyu brand
Free fitting：
ir lamps （3~5 year life）-------------2pcs
antistatic ion wind bar------------1pcs （300 dollars）
thermostat------------1pcs
Payment Terms︰ TT / LC
