full automatic stacker for paper printing line hs code 8428909090 or name Automatic take-up machine, also name Automatic paper collection machine
This machine is a necessary equipment for cutting rolls of white paperboard, kraft paper, aluminum foil paper, and self-adhesive paper into pieces of material. It can automatically lift and collect paper and stack neatly.
| Model | TM-ST6080 | TM-ST71102 |
| Max H of stacking paper | 650mm | 650mm |
| Max. paper dimension | 800X600mm | 1100X750mm |
| Min. paper dimension | 350X250mm | 350X250mm |
| Top speed | 4200p/h & 0~55m/min | 4200p/h & 0~55m/min |
| Power | 3p 380v 50Hz 0.92KW | 3p 380v 50Hz 0.92KW |
| Weight | 600kg+65KG | 650kg+65KG |
| Overall size | L183 × W138 × H125Cm | L183 × W168 × H125Cm |
video for many type:
/p/CPlD1N-gbIp/?utm_source=ig_web_copy_link
/p/CPlDbUcA3Vs/?utm_source=ig_web_copy_link
/tv/CRSf_w6AjEX/?utm_source=ig_web_copy_link
/p/CR-om4zAbc-/?utm_source=ig_web_copy_link
/p/CR-nB7Jgxs0/?utm_source=ig_web_copy_link
/p/CR-lRaBgw1h/?utm_source=ig_web_copy_link
/tv/CPjQgQ7ALnu/?utm_source=ig_web_copy_link
Video of the details before the actual goods are ready for shipment
/p/CQj9sVhgrBC/?utm_source=ig_web_copy_link
photo:
/p/CREIrnsrz4r/?utm_source=ig_web_copy_link
/p/CQj_kg5rTyr/?utm_source=ig_web_copy_link
/p/CQj-ANorSdT/?utm_source=ig_web_copy_link

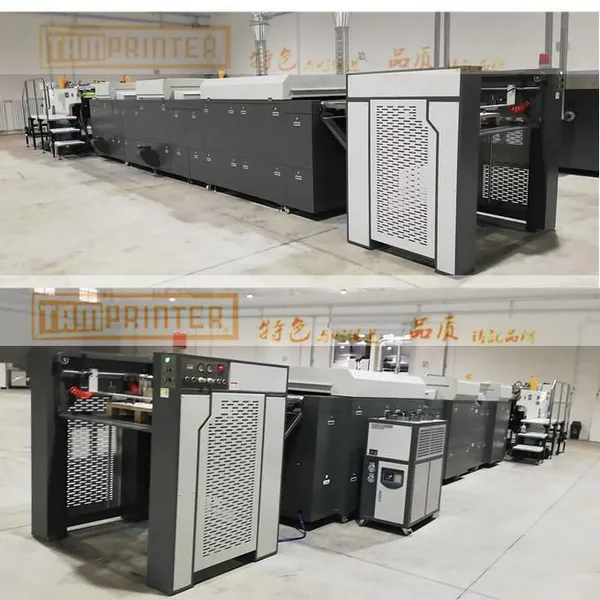

full automatic stacker can be used with full automatic screen press, UV machine or UV/IR dryer together, used to collect paper and make the paper in order automatically and enhance productive efficiency & product quality.
1. Collecting the paper and making the paper in order automatically.
2. Fit for all kinds of paper size, adjusted equipment in back, left and right side can be operated easily and conveniently
3. Photoelectric equipment inspects and controls boards, the pneumatic organ make the paper in order.
4. The induction equipment controls the paper holding board decline, and ensure the paper collecting automatically and glibly.
5. The paper feeding system is controlled by frequency conversion, stepless turning.
Automatic offset printing machine, automatic roller screen printing machine, automatic stop rotary partial screen printing machine, and one of the supporting equipment of other automatic paper printing production lines, complete the printing of finished products or semi-finished products, which can greatly improve production Efficiency and quality.
The whole machine can be divided into several parts such as the paper feeding frame mechanism, the whole paper mechanism, the paper delivery table lifting mechanism and the electrical control system.

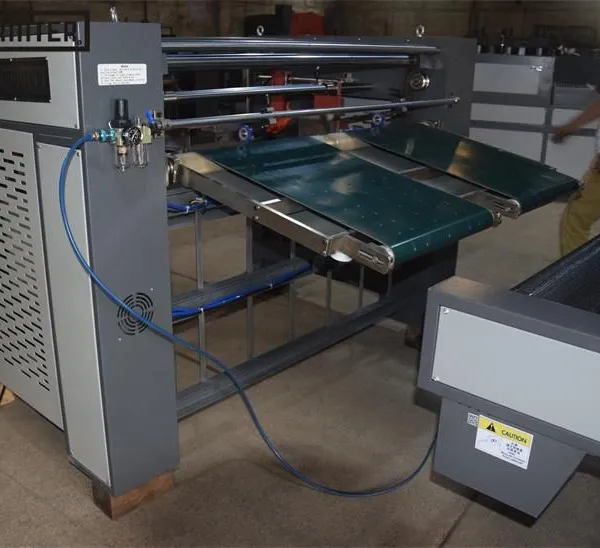

1. The paper feeder mechanism is composed of two parts, one is the conveyor belt part, which adopts frequency conversion speed regulation, which can easily adjust the conveyor belt speed to control the paper conveying speed, so as to adapt to different printing speeds. The other part is the air blowing device. When the paper is separated from the conveyor belt, the air flow blows out from the air blowing pipe, holding the paper up and moving it forward for a certain distance, then the air flow is turned off, and the paper falls onto the delivery table.

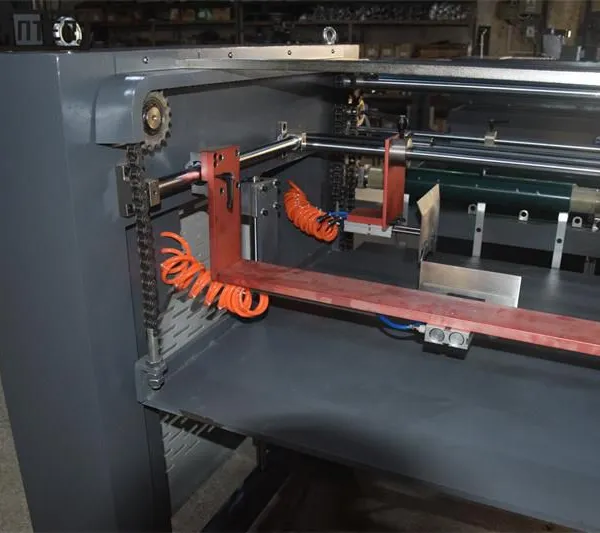

2. The whole paper part adopts a pneumatic paper arranging mechanism. The pneumatic structure has low working noise, stable and reliable action, and the adjustment of the cylinder position is convenient and adjustable to suit different sizes of paper or printed matter.
3. The lifting and lowering of the delivery table is driven by an electromagnetic brake motor and four synchronous motion chains, which can accurately stop at the required height and at the same time ensure the level of the delivery table.

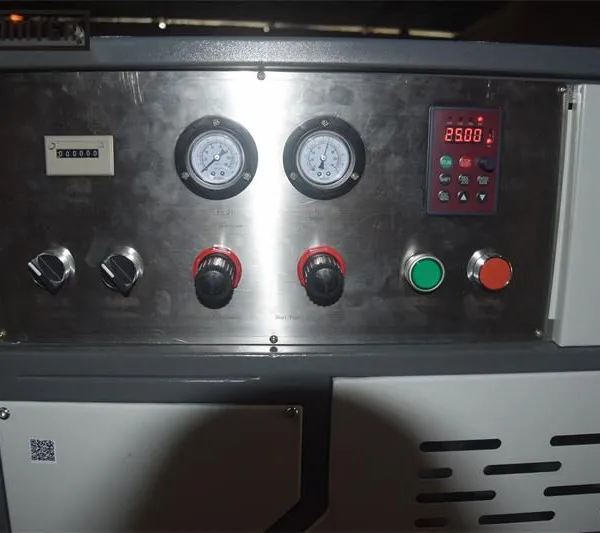

4. The electrical control part is simple and practical, with optional PLC program control, easy to operate, safe and reliable.
The utility model provides a palletizer and an automatic paper take-up machine, and relates to the technical field of paper take-up machines. The palletizer includes a base, a transmission and conveying mechanism, a lifting mechanism and a collection mechanism. The transmission mechanism includes a transmission frame, a transmission motor, a driving roller and a driven roller; the conveying mechanism is connected with a guide wheel and a photoelectric sensor. The conveyor belt and guide wheels on the palletizer can roll and guide the conveying of packaging paper, reducing the occurrence of packaging paper wrinkles or paper jams. The photoelectric sensor on the conveying mechanism transmits signals to make the lifting motor and the collecting cylinder move synchronously. The whole process does not stall until a pallet pallet is filled with a height of 65cm. The forklift removes it and replaces it with a new pallet, and so on.
The lifting mechanism includes a lifting platform, a lifting motor, a gear transmission structure and a support frame; the collection mechanism includes a side baffle, a rotating support plate and a collection cylinder. The patented technology of the utility model is a printing paper automatic receiving and palletizing device with ingenious design, reasonable structure, convenient use and strong practicability. This device has a high degree of automation and can improve work efficiency and reduce the labor cost of the enterprise after use, especially Suitable for continuous mass production.
[Summary of technical implementation steps]
The technology relates to the field of mechanical equipment, in particular to a printing carton automatic receiving and palletizing device.
Technology Introduction
At present, the cartons need to go through multiple processes such as printing, slotting, and collection during the processing. At present, the collection and palletizing process is done manually. Usually, workers collect the processed cartons at the discharge end and move them to the side for stacking. Neat, the defects of this method are: 1. The speed is slow, the efficiency is low, multiple workers are required to operate, and the labor cost is high. 2. The staff is labor intensive. 3. The palletizing is not neat.
Technical realization ideas
Payment Terms︰ TT/LC
