Home > Products > Rail Tamping Machine > YCD-2 Hydraulic Rail Turnout Tamping Machine
YCD-2 Hydraulic Rail Turnout Tamping Machine
US$ 7300 - 7500
/ Piece
2 Pieces(Min. Order)
- T/T L/C
You May Like
Product Details
| Brand Name | linkage | Place of Origin | China | |
| Model Number | YCD-2 | After-sales Service Provided | Overseas third-party support available | |
| Weight | 337 kg | Dimension(L*W*H) | 1420*660*1380mm | |
| Condition | New |
Product Description
Product Description

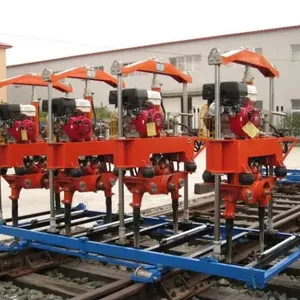

YCD-2 Hydraulic Tamping Machine
YCD-2 hydraulic tumout tamping machine is a special mainenance mechanical equipment for railway turmouts. it is mainly used for tamping the seeper bllast in the tumout section, and can also take into account the tamping efect of the main track bed ballast.
Specification
Model | YCD-2 |
Type | Rail Tamping Machine |
Material | Stainless Steel |
Dimensions (L x W x H) (mm) | 1420*660*1380mm |
Engine | HONDA GX390 petrol engine |
Power | 6.6 kW |
Vibrating frequency | 60~70 Hz |
Exciting force | ≥34kN |
Clamping force | ≥9.4 kN |
Insertion force | ≥2.9 kN |
Working pressure | 5.0 MPa |
Tamping insertion depth: | 90~ 120mm under sleepers |
Weight | 337 kg |
