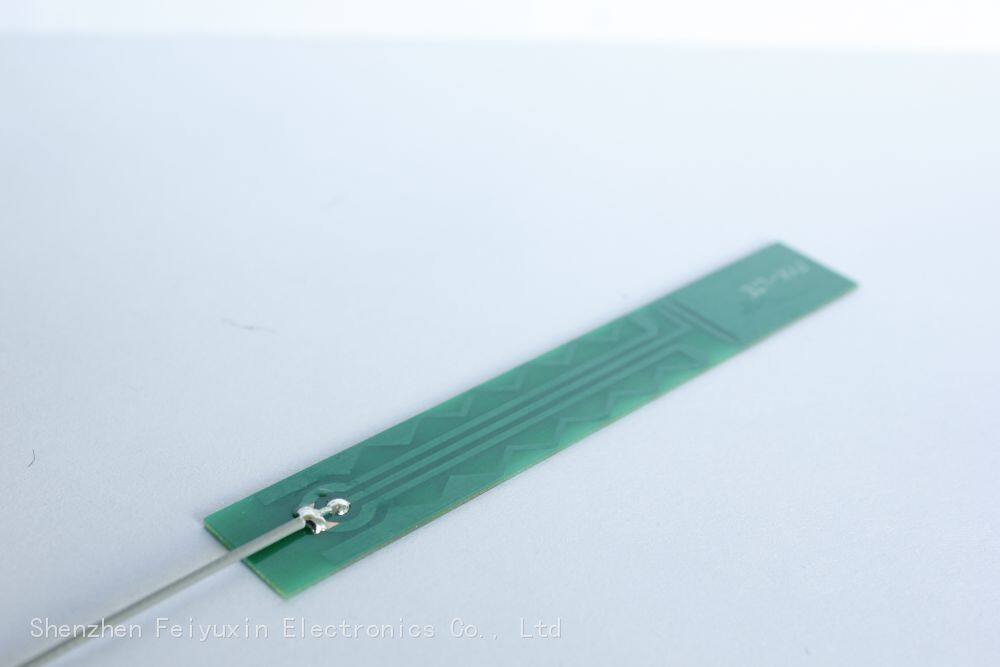

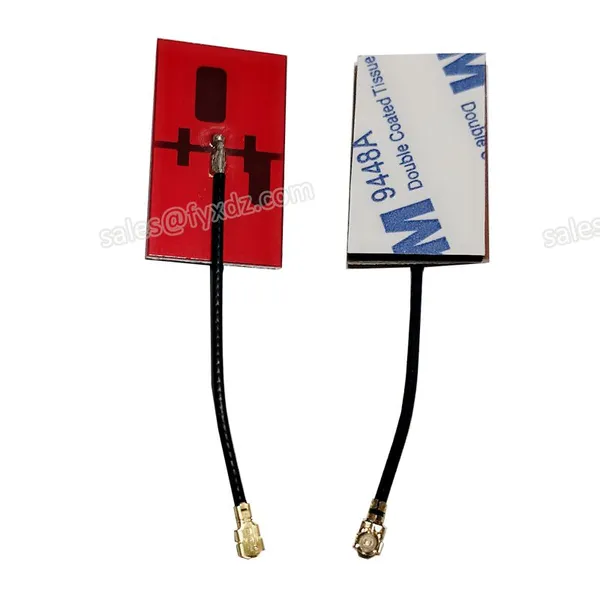

GPRS 2G 3G 4G LTE Antenna Flex PCB Board built-in IPEX Connector Embedded Antenna 700-2700 MHz
Features:
1. Built-in antenna with back adhesion, easy and convenient to use , high performance.
2. Light weight and easy to install. -- Suitable for Smart Meter, TV screen, ATM, M2M, IOT or Desktop Usage.

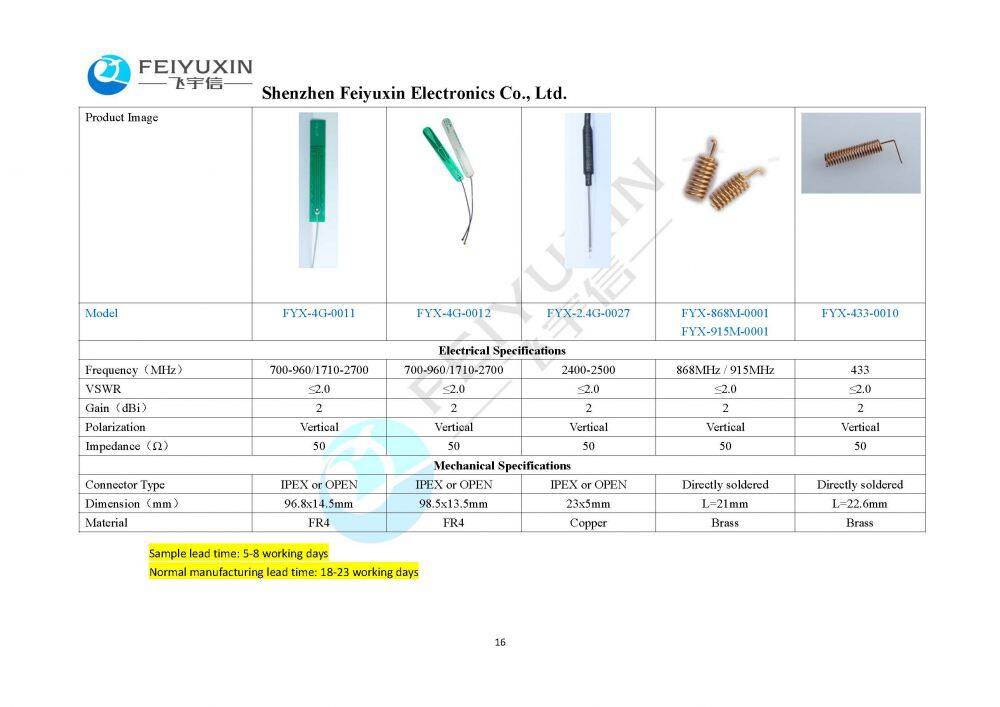

Product Specification - 4g lte embedded pcb antenna
I. Electrical Specifications
Frequency range (MHz): 700-960/1710-2700
Gain (dBi): 3
VSWR: ≤2.0
Input impedance (Ω): 50
Polarization: Vertical
Maximum input power (W): 25
Radiation: Directional

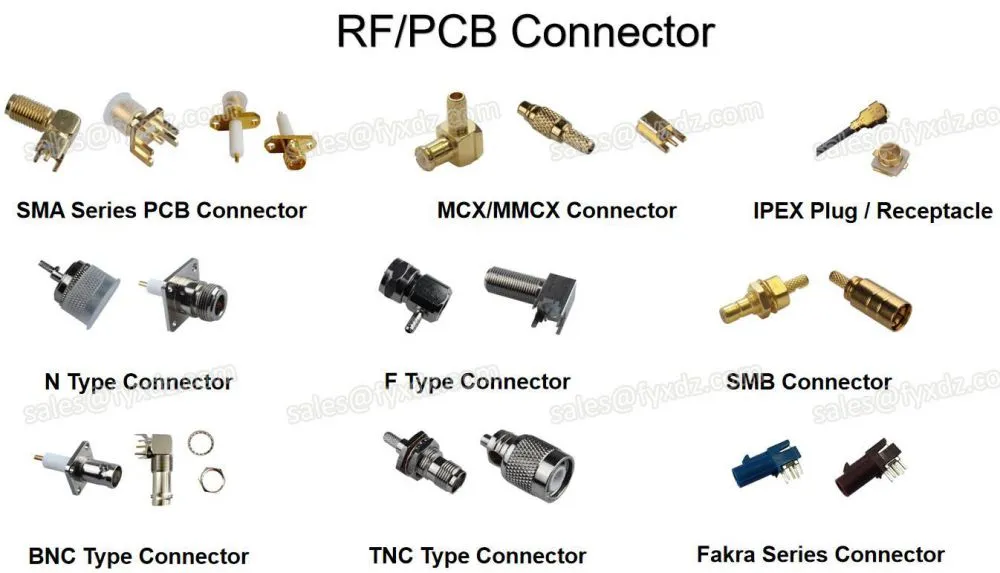

Input connector type: IPEX MHF1 or customized
II. Mechanical Specifications
Antenna Dimensions (mm): 97*14.5*0.8mm
Operating temperature(°c): -45～75
Radome color: Green
Installation way: Double side adhesive
Antenna dimension, cable length and connector type can be customized. Please contact us to design your own antenna type.
