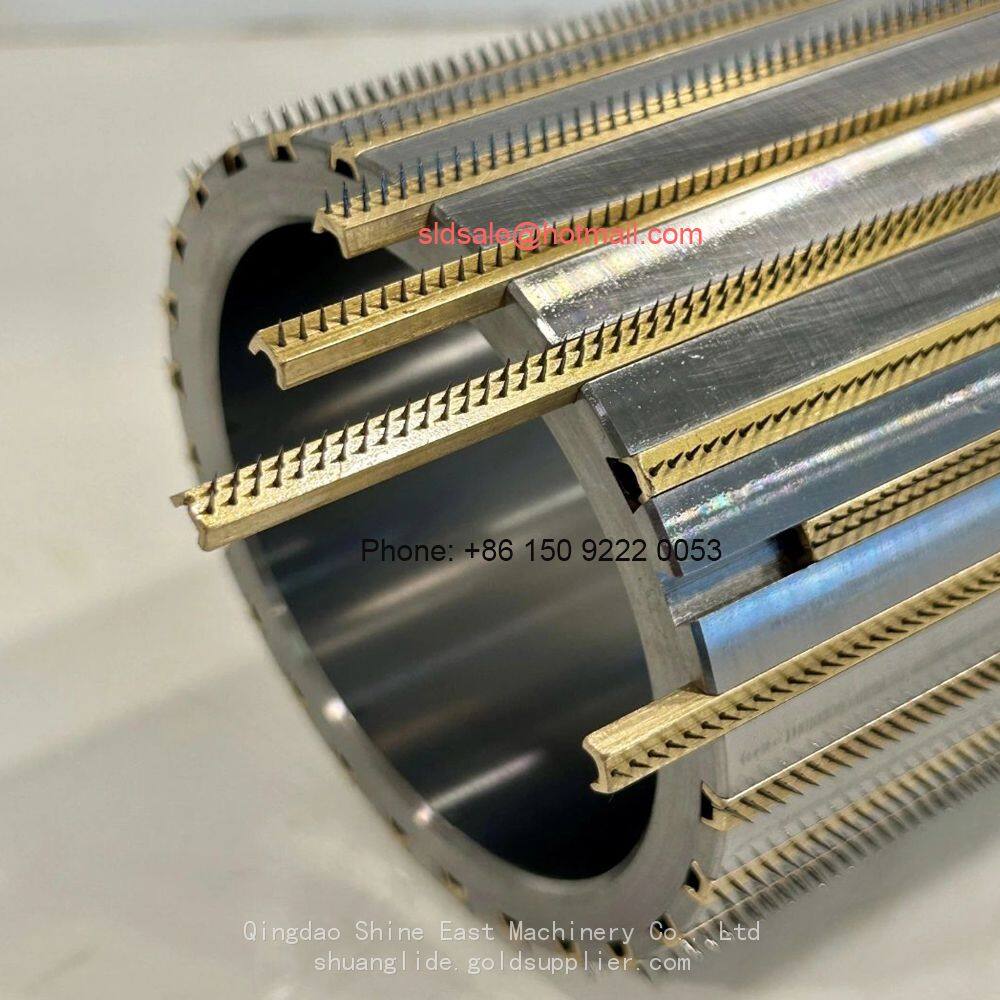

Brass Steel Aluminium Needle Roller / Perforating Pin Cylinder / Pinned Sleeve /Needle Punching Segments for Plastic Film Nonwoven Fabric
US$ 90 - 15000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Shine East
Place of Origin:
China
Model Number:
25/50/75/100/150/200 or customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Plastic Film Nonwoven Fabric Needle Perforation Roller / Perforating Pin Cylinder / Pinned Sleeve /Needle Punching Segments for Foil PaperUS$ 90 - 15000MOQ: 1 Set -
Brass Steel Aluminium Perforation Roller With Needles / Perforating Pin Cylinder / Pinned Sleeve Segments for Plastic Film Nonwoven FabricUS$ 90 - 15000MOQ: 1 Set
-
Fibrillation Roller / Perforating Pin Cylinder / Pinned Sleeve /Needle Punching RingsUS$ 90 - 15000MOQ: 1 Set
-
300m/min 800 Degree Hot Needle Micro Perforation Machine Rotary Needle Roller Punching MachineUS$ 5000 - 50000MOQ: 1 Set
-
300m/min 800 Degree Micro Perforation Machine Hot Pin Roller Perforated Punching MachineUS$ 5000 - 50000MOQ: 1 Set
Brand Name
Shine East
Place of Origin
China
Model Number
25/50/75/100/150/200 or customized
Certification
CE
After-sales Service Provided
No overseas service provided
Warranty
1 year
Weight
5kg
Dimension(L*W*H)
customized
Voltage
380V3P50Hz or customized
Product Type
Other, plastic film nonwoven paper
Condition
New
Power(W)
7kw
Processing Type
Other, perforation roller
Product Overview

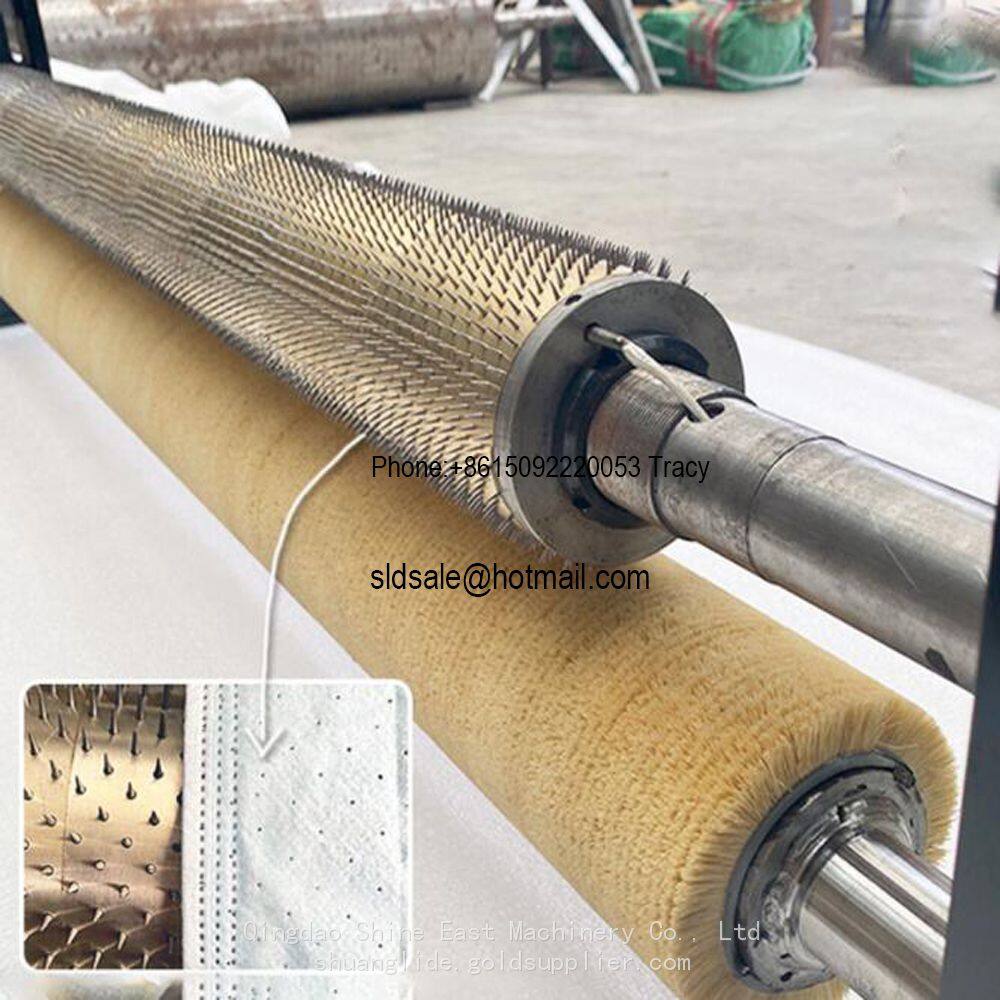

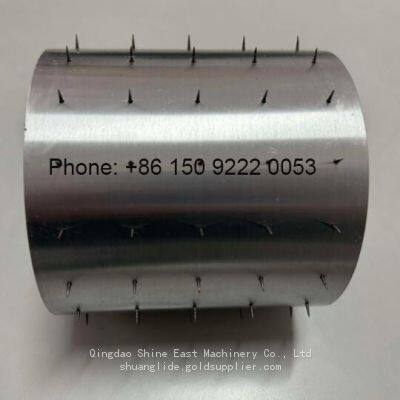

Pinned roller / Perforating roller
Use for Plastic films, aluminium foils, leathers, artificial leathers, textiles, non-wovens,
papers, etc
papers, etc
FEATURES AT A GLANCE

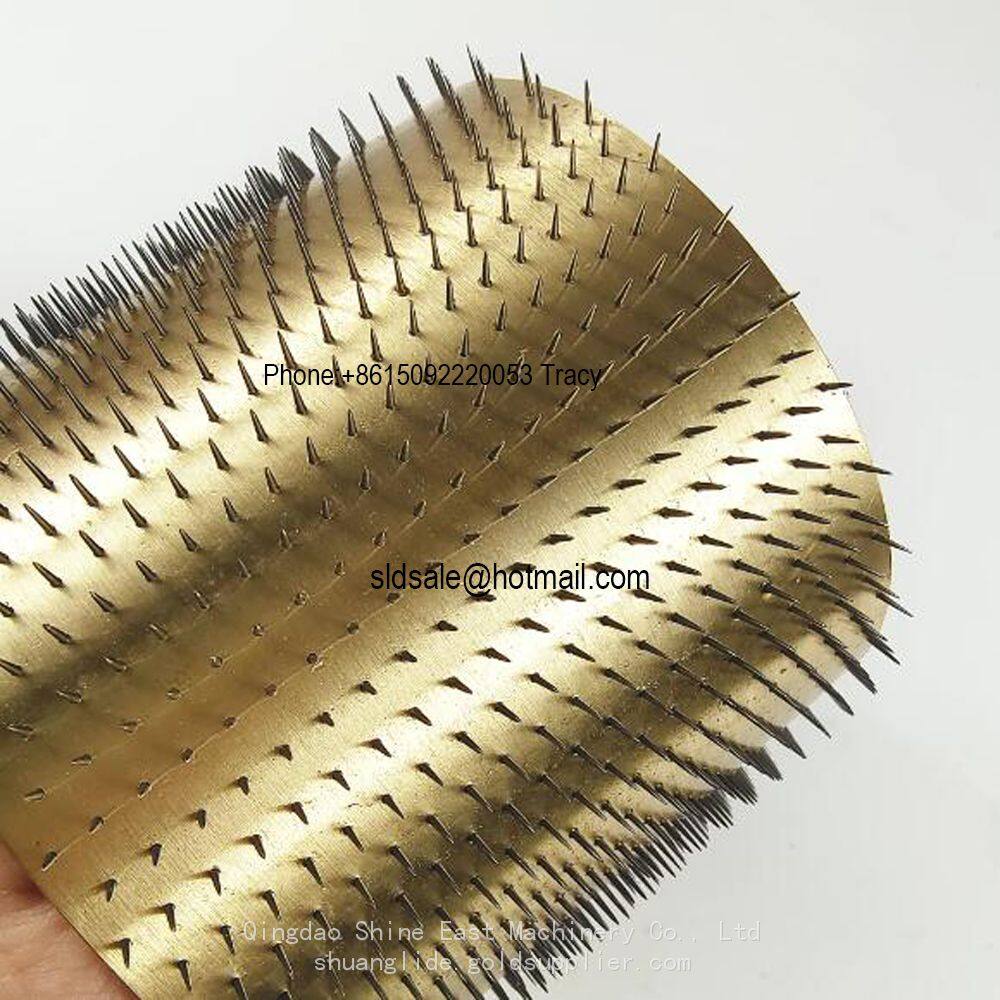

BRASS MATERIAL

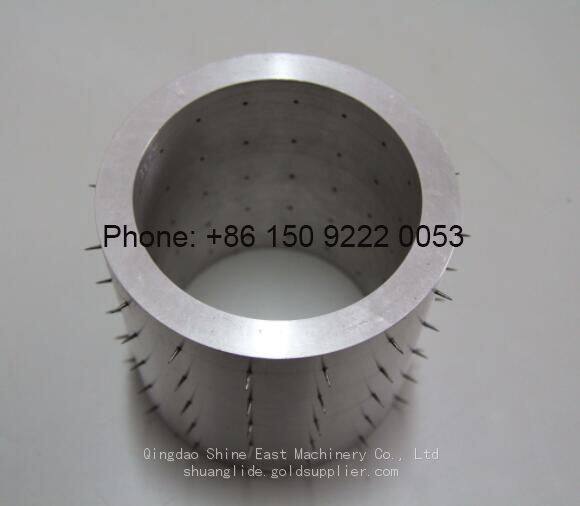

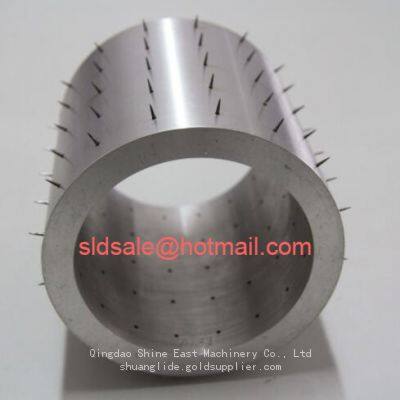

ALUMINUM MATERIAL
SIMPLE INSTALLATION

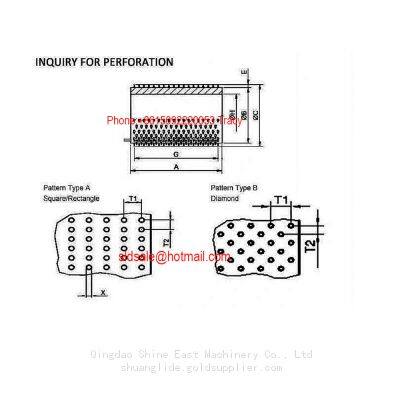

HOLES DISTANCE AND HOLES DIAMETER CUSTOMIZED
PRODUCT SPECIFICATIONS
Cold rotary pin perforating
Cold pin perforating is the process of taking a sharpened pin and piercing a substrate with the pin point. This usually results ina "volcanic" looking aperture in poly- based materials, which can be beneficial in some applications, such as those that require aone way valve. Cold perforation is the least expensive and fastest methods of perforating.
Cold rotary pin perforating can be applied continuously, or can be made to work in register or intermittently.
Benefits:
Least expensive method of perforating
Fastest method of perforating
Simple to install and operate
Simple to maintain
Can be used on just about any material
Disadvantage:
Some benefits from a volcanic style apertureDusting can occur in some materials
Punctured hole can potentially close back up, but will open again in above normal atmospheric conditionsCold pin perforators canbe made from 25mm wide up to 4000mm wide as standard
Hot rotary pin perforating
Hot pin perforating is the process of taking a heated, sharpened pin and piercing a substrate with the pin point. This results ina melted hole, where the center of the hole is melted into a re-enforced ring around the punctured hole.
Benefits:
Less expensive method of perforating than laser with often similar results
Great for perforating all the way across a web
Straightforward to install and operate
Simple to maintain
Heat helps prevent dusting seen in cold perforating applications
Can be used on just about any material
Some benefits from the molten ring style aperture
Stronger resulting holes are helpful, especially in brittle material applications
Melted hole will not close back up, and allows for excellent flow control of air, moisture or water
Disadvantage:
The center of the hole is pierced and melted, debris can sometimes be an issue, depending on the substrate
Cold pin perforating is the process of taking a sharpened pin and piercing a substrate with the pin point. This usually results ina "volcanic" looking aperture in poly- based materials, which can be beneficial in some applications, such as those that require aone way valve. Cold perforation is the least expensive and fastest methods of perforating.
Cold rotary pin perforating can be applied continuously, or can be made to work in register or intermittently.
Benefits:
Least expensive method of perforating
Fastest method of perforating
Simple to install and operate
Simple to maintain
Can be used on just about any material
Disadvantage:
Some benefits from a volcanic style apertureDusting can occur in some materials
Punctured hole can potentially close back up, but will open again in above normal atmospheric conditionsCold pin perforators canbe made from 25mm wide up to 4000mm wide as standard
Hot rotary pin perforating
Hot pin perforating is the process of taking a heated, sharpened pin and piercing a substrate with the pin point. This results ina melted hole, where the center of the hole is melted into a re-enforced ring around the punctured hole.
Benefits:
Less expensive method of perforating than laser with often similar results
Great for perforating all the way across a web
Straightforward to install and operate
Simple to maintain
Heat helps prevent dusting seen in cold perforating applications
Can be used on just about any material
Some benefits from the molten ring style aperture
Stronger resulting holes are helpful, especially in brittle material applications
Melted hole will not close back up, and allows for excellent flow control of air, moisture or water
Disadvantage:
The center of the hole is pierced and melted, debris can sometimes be an issue, depending on the substrate
The welted style hole is not always suitable for the application
