Help CenterFactory Price HKNC450 4 Axis Bridge Saw Stone Cutting Machine for Marble Granite Slab Tiles
Related Products
-
Low Noise Marble Bridge Saw Stone 5 Axis CNC Stone Engraving Machine Router With Polished Cutting FunctionUS$ 43000 - 46000MOQ: 1 Set -
China High Quality Good Service 5 Axis Stone Bridge Cutting MachinesUS$ 43000 - 46000MOQ: 1 Set
-
HKNC650 High Precision CNC Router Stone Processing Center for Cutting Shaping Polishing Edging Cut CenterUS$ 43000 - 46000MOQ: 1 Set
-
High Precision Cutting Working Machine HKNC650 Stone CNC Machining CenterUS$ 43000 - 46000MOQ: 1 Set
-
CNC Stone Profiling Machine Shaping for Marble Granite Quartz Factory PriceUS$ 43000 - 46000MOQ: 1 Set
CNC Stone Machine

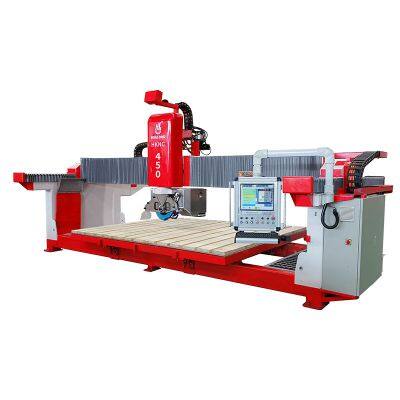

5 axis interpolated cnc bridge saw HKNC-450 is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
Functions:
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make any cut with ease. HKNC-450 can also been equipped with a vacuum manipulator for the automatic moving of slabs to optimise workpiece usage during the cutting process.
Main Features:
1) 5 axis lnterpolation with Italian CNC Esa system.
2) Easy to use interface with 19" color touch-screen.
3) Blade can rotate 0°-360° and tilt 90° for any any direction's and any angle's chamferring cutting.
4) Working platform can tilt 85 degrees, easy for slabs loading.
5) Easy for loading, unloading and installation due to monobloc structure with size suitable for container.
6) Manual cuts available for simple machining.
7) Nesting manual / automatic to optimize slab surface usage
8) Optional - Vacumm manipulator for workpieces handling.
9) Optional - Photo slab for nesting and avoiding defects.
10) Optional - Vein match for easily matching up perfectly each vein,color at the seam of your project.
11) Optional - Slab thickness probe
12) Optional - Tool measuring system
Application Fileds:
* 2D decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art
* Street furniture
* Ventilated facades
