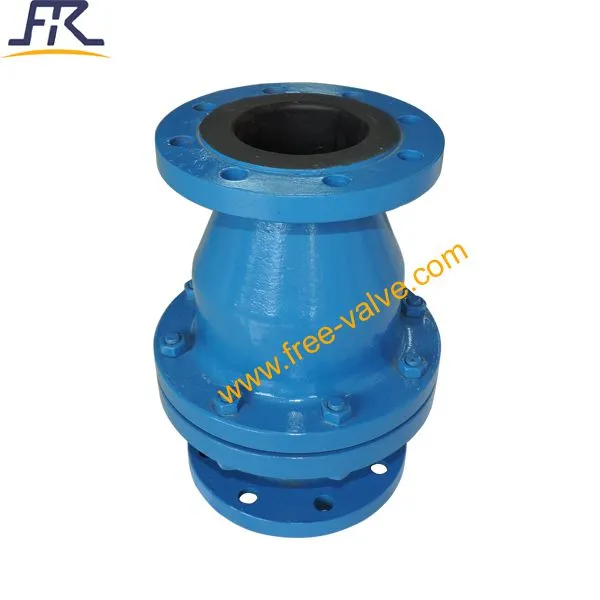

FREE-VALVE brand Rubber Lined Vertical Flap Check Valves are swing type and have a flat disc that swings about a hinge pin or shaft, installed in the piping system, their main function is to prevent medium from flowing backwards, the valves are normally designed for horizontal flow condition, but can also be installed in vertical pipeline, but in vertical pipeline, the flow should be in upwards direction and under the disc.
Features
1. The eccentric mounted hinge pin in combination with the disc seat guarantees a positive shut off of the returning medium.
2. The sealing surface of disc is ground and lapped for better finish and sealing
3. Bolt bonnet provides easy access to the disc and hinge pin without removing the valve from the pipeline in case of maintenance.
4. Disc nut secures the disc to the hinge and allows the disc to rotate about pin axis and assist in tight shut off.
5. Rubber lined material makes the valve with anti corrosive performance .
Technical Specification:
1. Size Range: NPS2~NPS36,DN50~DN900
2. Applicable Temperature:-20~550℃
3. Connection Type: Flange
4. Body material：WCB+NBR
5. Test standard：GB/T13927,API598
6. Flange To Flange:ANSI B 16.10,GB/T12221
Application:
FREE-VALVE brand rRubber Lined Vertical Flap Check Valves are mainly used in water supply systems, petroleum, chemical and other industrial sector for anti-corrosive function and installed at the pipe on vertical position.
Model:FRH42J
Price:200-300USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
