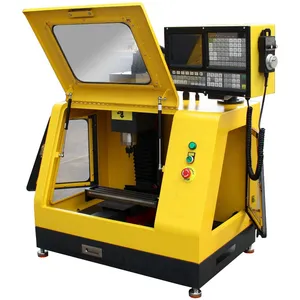

Features
(1). High performance 4 axis milling CNC controller. (2).The standard spec includes electronic hand wheel.
(3).Selection of high -quality casting materials,more compact.
(4).X, Y, Z, A four axis micron level interpolation accuracy controlling;
(5).USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6).Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(7).Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters ,convenient to the user programming
(8). Can run ISO G code
(9).With the automatic aligning instrument.
(10).Teaching function: Teaching+ simplified instruction programming, teaching methods in table format, that is simple and intuitive.
(11).Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(12). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display, processing time, the number.
(13).Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.
(14).8 inch super large colorful(800*600) LCD screen.
(15) .Applicable industry: technology development, advertising design, art, vocational technical college Education & Training CNC and DIY enthusiasts.
(16)
Technical parameters | ||
X axis travel |
220mm |
|
Y axis travel |
120mm |
|
Z axis travel |
200mm |
|
A axis travel |
±360°（Optional Accessory） |
|
Tool DIA. range |
4-12mm |
|
Control system |
KY1000MC controller |
|
Instruction |
Run ISO G code |
|
MPG hand wheel |
4 axis |
|
Spindle motor |
2.2kw |
|
Spindle speed |
300-24000r/min |
|
The max moving speed |
2000mm/min |
|
The max feeding speed |
1000mm/min |
|
Guide rail |
High-precision linear guide |
|
Positioning accuracy |
0.02mm |
|
Repeatability accuracy |
0.01mm |
|
Transmission |
ball screw |
|
Table size |
460*130mm |
|
T slot (amount*width) |
35*12mm |
|
Max. load |
30kg |
|
Table structure |
Full cast iron |
|
Power |
220VAC / 110VAC |
|
Weight(NW/GW) |
200/220kg |
240/270kg with pedestal |
Overall dimension |
850*650*1100mm |
850*650*1700mm with pedestal |
Packing size |
950*750*1200mm |
950*750*1800mm with pedestal |
