FK-ETD34 clamp, ETD34 transformer clamp, interlocking style, made of SUS301 stainless steel, with good elasticity, easy assembly of the product, and stable fastening force.
- SHENG ZHEN
- T/T L/C
- 7 days
You May Like
-
Electronic component hardware accessories, connection terminals, heat sink terminals. We can customize the mold according to the customer's design plan.
-
Bobbin connection terminals, Bobbin wiring terminals, brass stamped terminals, H65 brass material, surface tin plated, easy to solder. Inventory.
-
Relay switch terminals, relay connection terminals, brass body can be riveted with silver contacts, and can be customized according to customer drawings.
-
Apple phone protective case damping hinge, phone case bracket hinge, phone case pivot hinge, parking at any angle. Surface nickel plating is wear-resistant.
-
Mobile phone protective case bracket hinge, phone case bracket hinge, phone case pivot hinge, parking at any angle. Surface nickel plating is wear-resistant.
-
SMD EFD15 Core and Bobbin with clips. EFD15 high-frequency transformer matching materials. Dongguan provides one-stop production services. Affordable prices.
Product Details
| Brand Name | LI CHENG | Place of Origin | China | |
| Model Number | FK-ETD34 clamps | Material | Stainless Steel | |
| Usage | Other, transformer | Standard or Nonstandard | Standard | |
| Structure | Spring Clamp |
Product Description

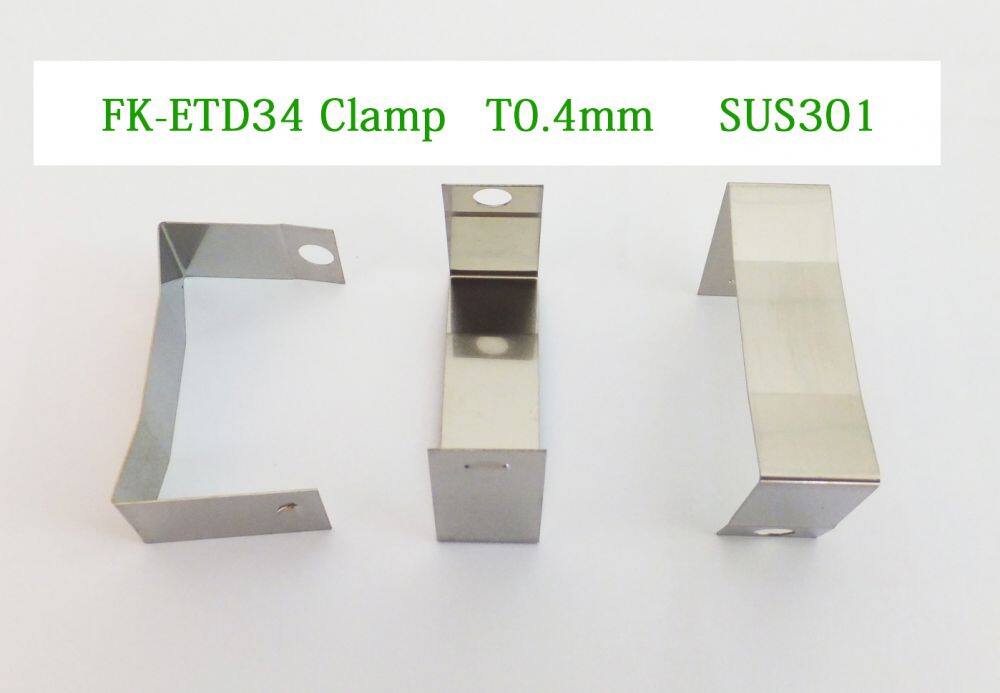

FK-ETD34 clip, ETD34 clamp, stainless steel material, quality assurance, fast delivery.

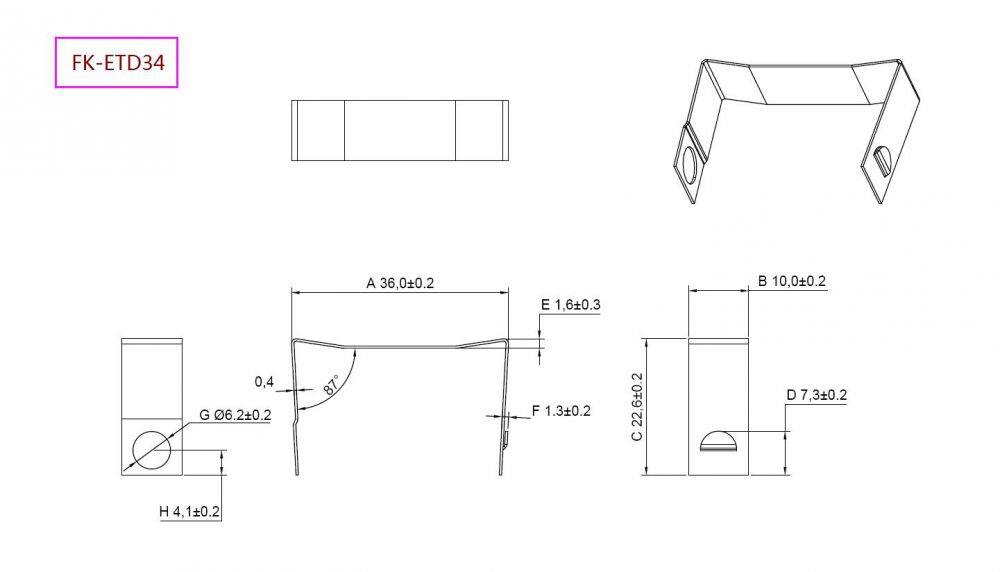

Product size: 36*22.6*10mm;
Corresponding core size: 34*34*12mm;
Material: SUS301 stainless steel;
Thickness: 0.4mm
FK-ETD34 clamp, ETD34 transformer clamp, interlocking style, made of SUS301 stainless steel, with good elasticity, easy assembly of the product, and stable fastening force.
Characteristic: ETD29ETD34ETD39ETD44ETD54 clamp is made of SUS301 stainless steel. The material has the characteristics of elasticity, stability, durability and corrosion resistance. It is suitable for transformer magnetic core clamping. ETD34 interlocking steel clamp has simple assembly, strong clamping force, fixed magnetic core inductance, and core transformer with FK-ETD34 steel clamp has low drying noise. Point, suitable for high-end transformer products and export products.
Commonly used materials for transformer clamps:
A) Stainless steel (SUS301) B) SK7 C, phosphorus copper (C5191) copper (C1100)
Common classification of transformer clamps:
RM Series (RM4, 5, 6, 7, 8, RM10, 12, 14)
ER Series (ER9.5, 11.5, 13.6, 14.5)
EF Series (EF20, 12.6, 16, 19, 25, 30)
EPC Series (EPC10, EPC13, EPC17, EPC19, EPC25, EPC30)
EE Series (EE5.0, EE5-1, EE5-2, EE5-3, EE5-4)
UU Series (UUU9.8, UUU10.5 with ears, 15.7, 16, 25)
EFD series (EFD10-1 half package, EFD12 square cover, EFD15, EFD15-1, EFD20, ETD20-1, EFD25, 30)
EFD double-button (EFD15 double-button, EFD20 double-button, EFD25 double-button, EFD30 double-button)
ETD Series (ETD29, 34, 39, 44, ETD49, 54, 59)
EP Series (EP7 Button, EP7-1, EP13, EP17, EP20)
PQ series (PQ2020, PQ4040, PQ5050, PQ34)
FK series (FK-ETD29,FK-ETD34, FK-ETD39, FK-ETD44, FK-ETD49, FK-ETD54)
