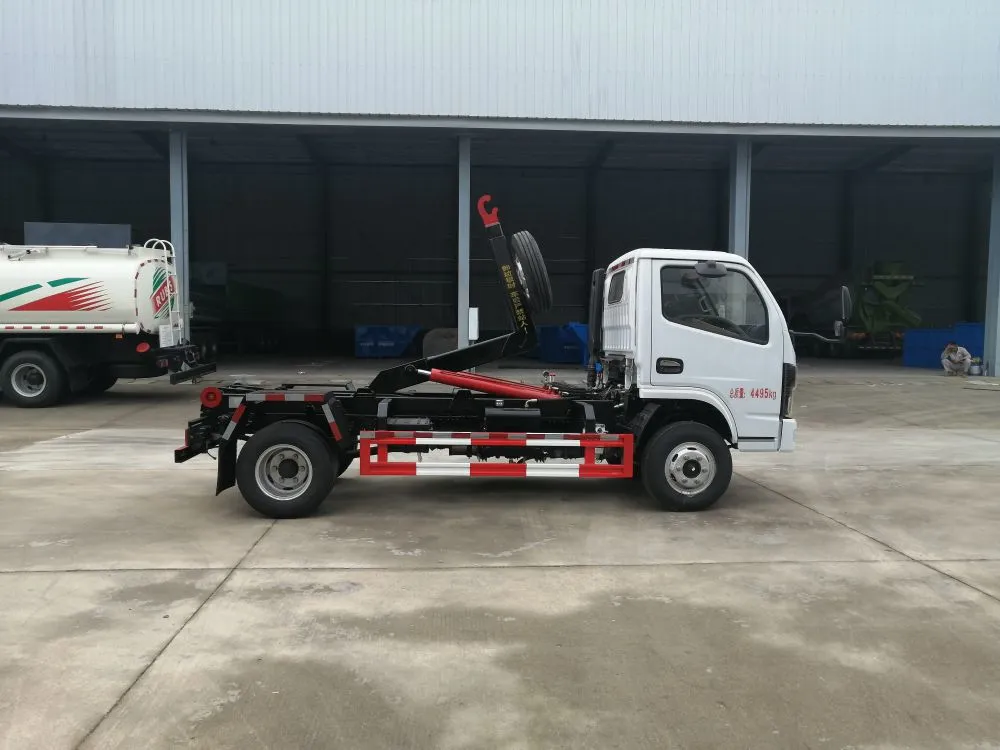

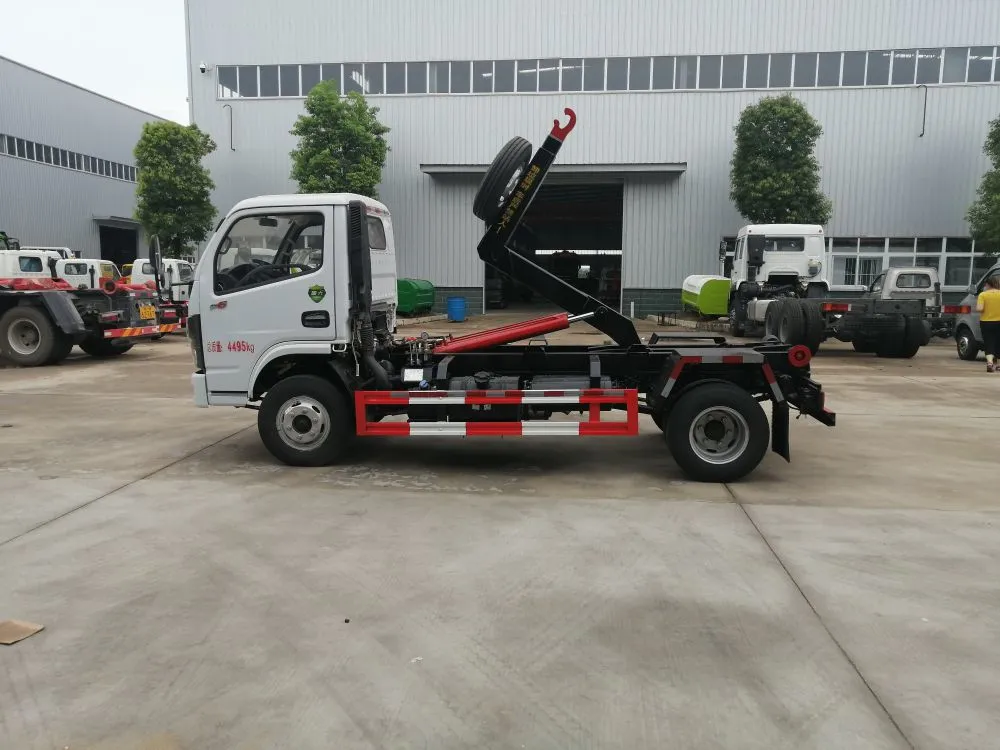

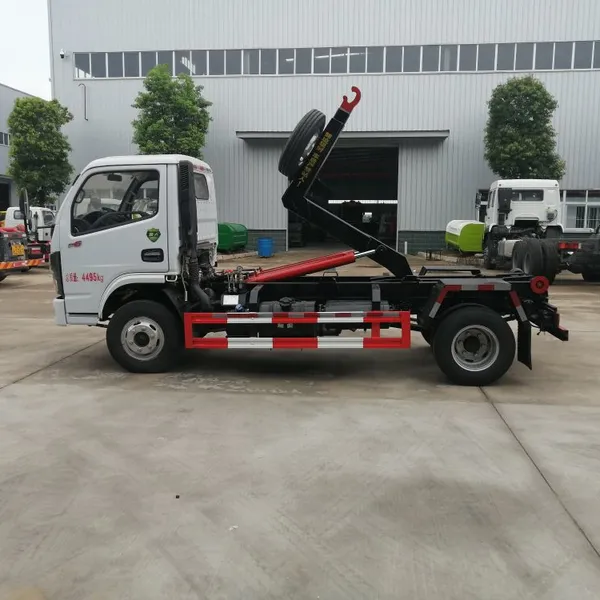

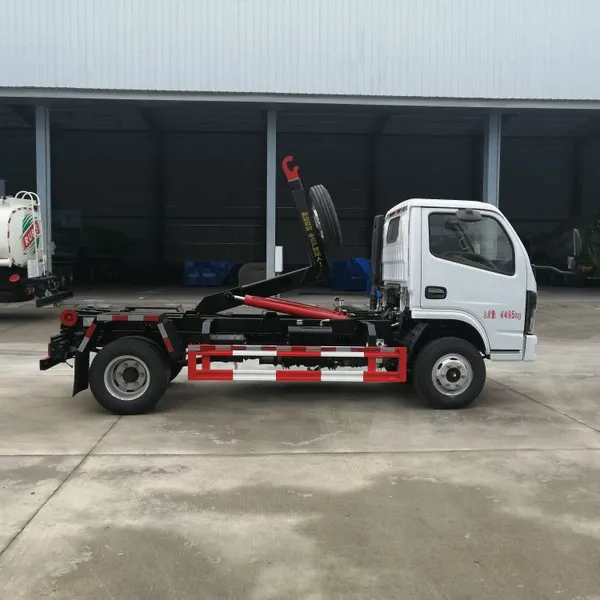

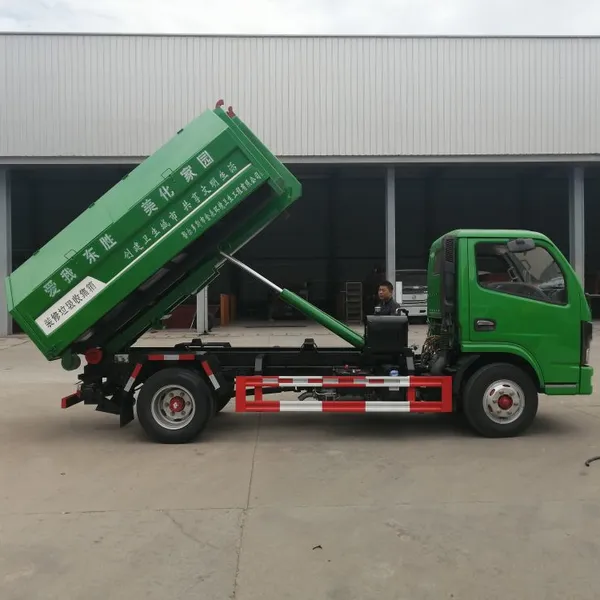

Hook arm garbage truck

Vehicle performance characteristics:

1. Electric and hydraulic joint control: The control system of this vehicle comprehensively utilizes the advantages of electronic control and hydraulic control. By controlling the hydraulic valve group through the electronic control system, the reliability and efficiency of use are improved.

2. Automatic control of engine power output: The engine power output control, also known as throttle control, can be fully automated through the electrical system to meet the power requirements for garbage filling cycles and pushing and unloading. In other working conditions, the engine will automatically idle, reducing power loss and failure rates, reducing fuel consumption, and improving usage economy.

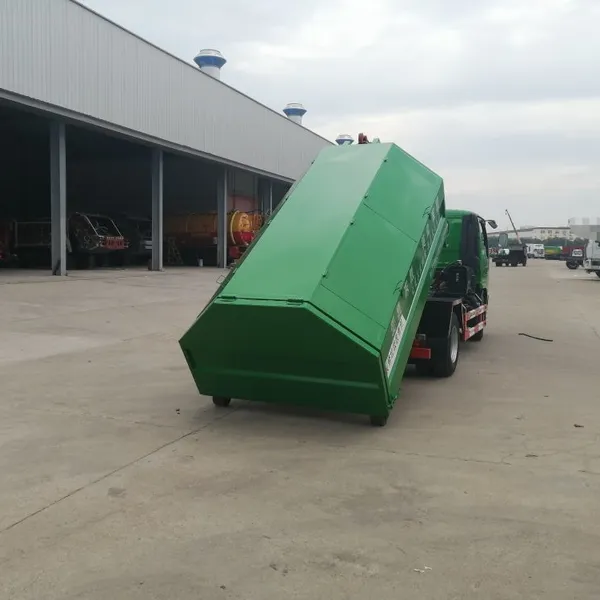

3. Framework structure: The garbage bin is made of reinforced beams and welded steel plates to form a sturdy framework structure. The side and top surfaces are curved, with a beautiful appearance, light weight, good stress, and no deformation; The push shovel is composed of a rectangular tube skeleton and a folding panel, which not only has a lightweight structure but also can evenly distribute garbage and discharge materials thoroughly and cleanly; The filler mainly consists of components such as the filler shell, skateboard, scraper, etc. Each component adopts a well stressed beam plate or box structure, which is sturdy and lightweight.

4. Sealing treatment to eliminate secondary pollution: Garbage is in a closed state during compression, loading, and transportation. The joint surface between the garbage bin and the filler is equipped with a special rubber sealing strip, which is compressed and sealed with a locking device; The sewage tank is equipped with a unique drain valve, which is reliably sealed and not easily clogged. The optional filler cover completely covers the feeding port of the filler, eliminating the phenomenon of garbage and dust flying caused by the disturbance of vehicle exhaust flow during transportation, and making the appearance more beautiful.

5. Hydraulic lifting safety circuit: A bidirectional balance valve is installed in the hydraulic system of the lifting loader. This valve not only ensures a smooth descent of the filler, but also isolates the direct connection between the lifting oil cylinder and the hydraulic hose. Even if the oil pipe bursts, the filler will not suddenly fall, improving the safety of use.

6. Advanced electronic control system: Controlled by CAN bus onboard controller, the control circuit is generated within the controller, and a logic circuit is used to ensure that each operation instruction is executed in sequence. At the same time, it ensures that each operation instruction is interlocked, with only external line connections, reducing the occurrence rate of faults, avoiding accidents caused by misoperation, and improving reliability; The specially set emergency brake button can stop the garbage filling mechanism in any state or position, ensuring the safety of operators and equipment.
