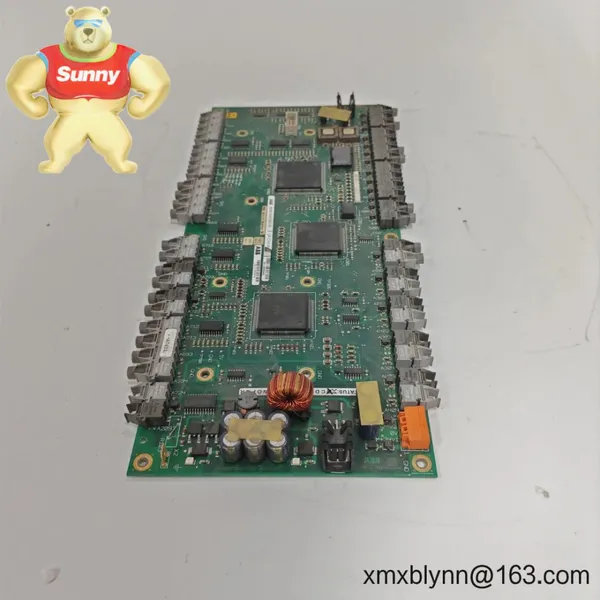

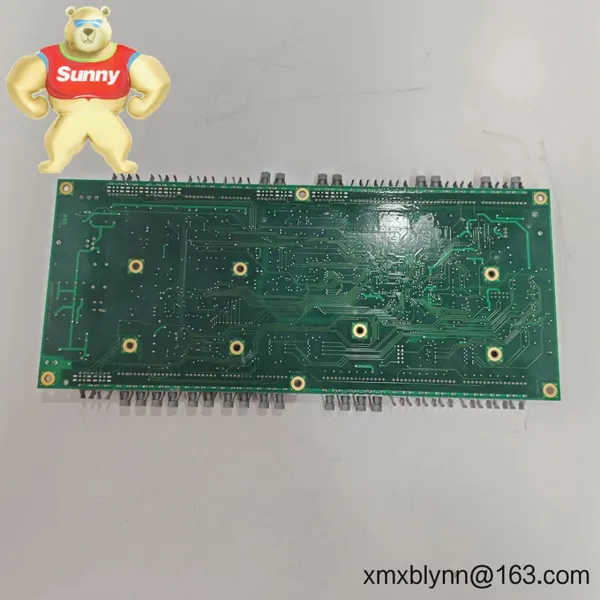

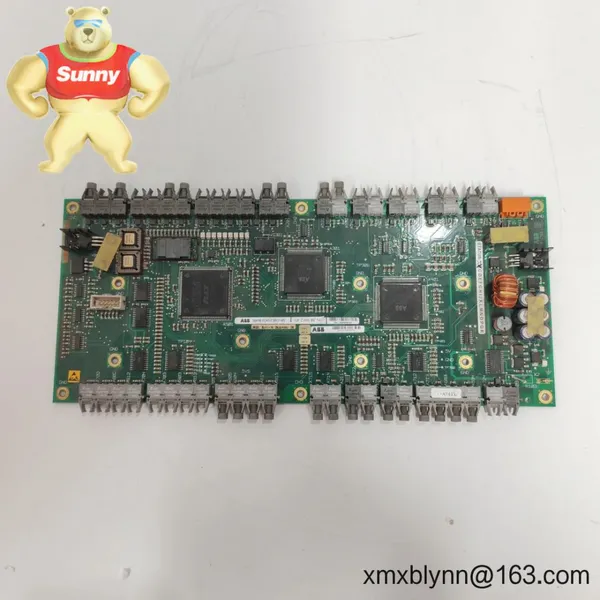

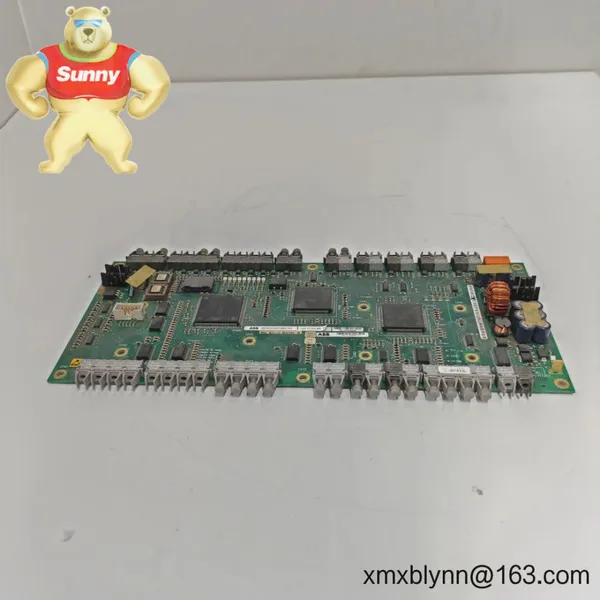

Help CenterABB UFC760BE145 (3BHE004573R0145) – Plug‑in Control Board for ABB Excitation and Drive Cabinets
Related Products
-
CS-7100 Clone Software Edit by Cloning SoftwareNegotiableMOQ: 1 Bag -
PPA322B HIEE300016R2 HIEE400235R1 Control Motherboard ControllerNegotiableMOQ: 1 Bag
-
2213-75TSLKTB3009 Industrial Control Module Have Anti-jamming CapabilityNegotiableMOQ: 1 Bag
-
5SHX1445H0002 3BHL000387P0101 Driver Board Module Stable Turn-off CapabilityNegotiableMOQ: 1 Bag
-
DSDP140A Pulse Counter Board Long Life and Low Failure RateNegotiableMOQ: 1 Bag
Warranty: 365 days
Lead time: In stock: typically ships within 1 week; not in stock: no more than 1 month
Payment: 50% advance payment; full payment prior to delivery
Express options: FedEx, UPS, DHL
Packaging: ESD-safe, moisture-protected packing for sensitive electronics
Plug-in rack module: Designed to fit ABB excitation/drive system backplanes for fast replacement.
Industrial-grade I/O: Supports 24 VDC digital signals and, in many cases, standard analog ranges (4–20 mA / 0–10 V) for field interfacing.
Backplane system bus: Board-to-board communication through ABB’s internal rack bus for low-latency control.
Fieldbus connectivity: Typically supports serial interfaces (e.g., RS‑485/Modbus RTU) depending on system configuration.
Robust design: Built for cabinet environments; seems to be proven in long-running generator and industrial drive applications.
Service-friendly: Clear front-panel access for wiring/diagnostics; straightforward swap for maintenance teams.
| Brand / Model | ABB UFC760BE145 (Part No. 3BHE004573R0145) |
| HS Code | 853890 (Parts suitable for use with 8537 equipment) |
| Power Requirements | 24 VDC supplied via system backplane (typical for ABB control racks) |
| Operating Temperature | 0 to +55°C typical control cabinet environment |
| Signal I/O Types | 24 VDC digital I/O (opto-isolated); analog 4–20 mA / 0–10 V depending on configuration |
| Communication Interfaces | Internal backplane bus; RS‑485/Modbus RTU commonly used in projects |
| Installation Method | Plug-in module for ABB rack; cabinet-mounted per IEC/EN industrial standards |
Generator excitation systems: Common in ABB UNITROL-based setups for power plants and industrial generators.
Drives and power conversion: Often seen in ABB drive cabinets handling process lines, rolling mills, and cranes.
Retrofit/maintenance: Drop-in replacement during planned outages to restore cabinet functionality quickly.
Critical infrastructure: Utilities and oil & gas sites where stable field I/O and communication are essential.
“We swapped in the UFC760BE145 during a four-hour outage. Cabinet booted clean, I/O came back on spec, and we avoided a weekend shutdown.” — Maintenance Supervisor, combined heat and power facility
Reliability: Proven stability in long-duty generator and drive environments; reduces nuisance trips.
Compatibility: Works within ABB rack ecosystems, so cabling and addressing typically remain unchanged.
Cost control: Cut downtime and field engineering hours with a direct plug-in replacement strategy.
Traceability: Clear part number mapping (UFC760BE145 / 3BHE004573R0145) for BOM and maintenance records.
Support: Pre‑shipment functional checks on request; documentation assistance to match your cabinet revision.
Cabinet environment: Install in a clean, ventilated control cabinet; keep ambient within 0–55°C and avoid condensation.
Wiring & grounding: Follow ABB rack grounding; route I/O away from high-noise power cables; maintain shield continuity.
ESD handling: Use antistatic wrist straps and ESD-safe work surfaces when inserting/removing the board.
Firmware & parameters: Match firmware/parameter sets to your system revision; back up settings before replacement.
Routine checks: Periodic connector re-seating, dust removal with dry air, and verification of analog scaling/calibration.
Spare strategy: Keep at least one tested spare on site for critical units; label by cabinet and slot for quick changeover.
Compliance: CE marking applicable to the complete system; RoHS-compliant components in most cases.
Manufacturing system: Built under ISO 9001 quality management.
Safety approvals: UL/CSA recognition typically applies at the cabinet/system level.
Warranty: 365-day warranty with replacement or repair, subject to evaluation.
For planning, teams usually pair UFC760-series boards with ABB rack power supplies, CPU/controller modules, and I/O expansion cards used in UNITROL and drive cabinets. If you share your cabinet tag and slot ID, we can cross-check compatible revisions and suggest tested spares.
