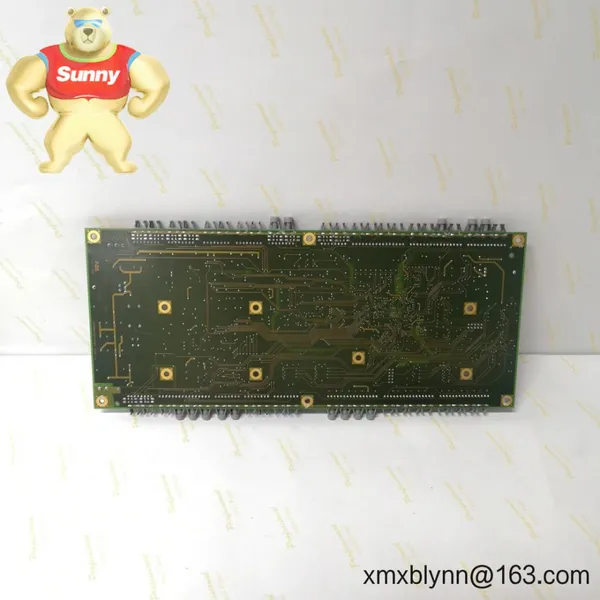

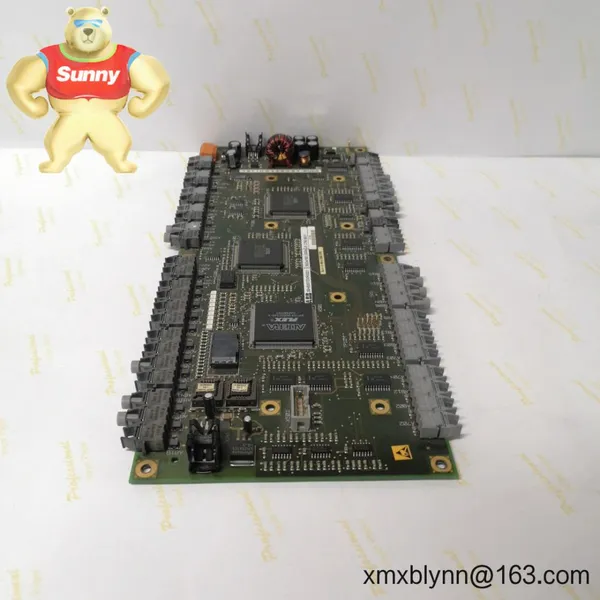

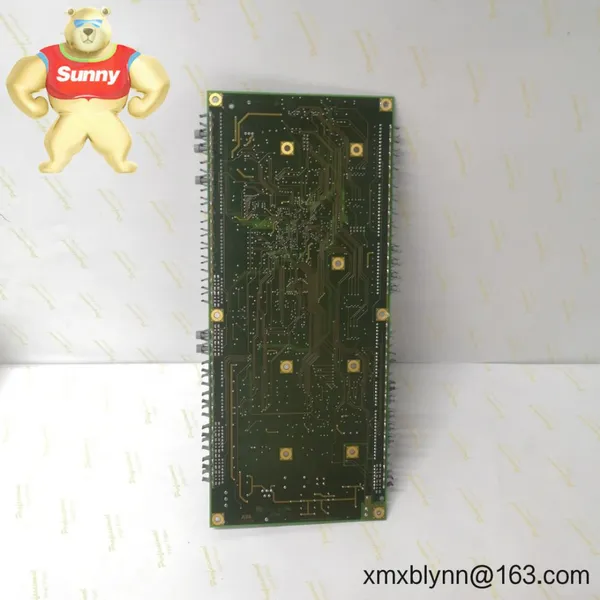

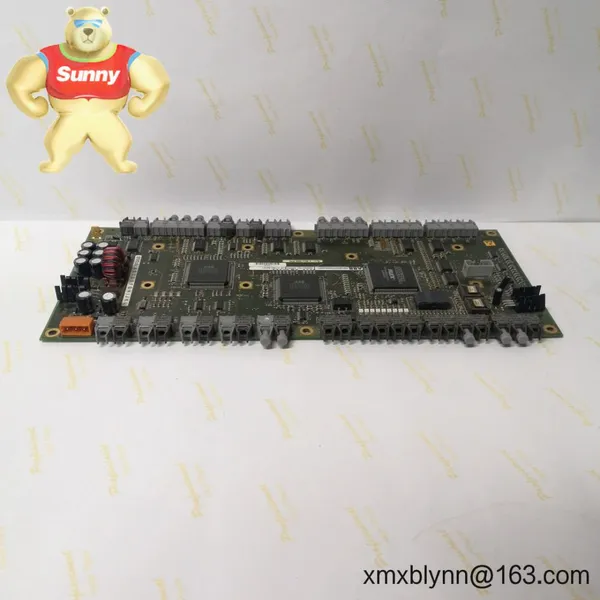

Help CenterABB UFC760BE01 (3BHB007030R0001) – Drive Control Board for ACS-series Variable Speed Drives
Related Products
-
3BHB020720R0002 Thyristor Module Suitable for DC Motor With EncoderNegotiableMOQ: 1 Bag -
PFSK162 3BSE015088R1 Distributed Control Module Equipped With up to 512 MB of SODIMM MemoryNegotiableMOQ: 1 Bag
-
PFSK160A 3BSE009514R1 Output Relay Module Integration Into Modern Ethernet /IP Network ArchitecturesNegotiableMOQ: 1 Bag
-
UNS4881b V4 3BHE009949R0004 Digital Input Module Ability to Respond to Input Signals in Real TimeNegotiableMOQ: 1 Bag
-
PFSK130 3BSE002616R1 Control Unit Motherboard Provides Fast Data Processing CapabilitiesNegotiableMOQ: 1 Bag
Warranty: 365 days
Lead time: 1 week if in stock; no more than one month at the latest
Payment: 50% advance payment, balance before delivery
Express options: FedEx, UPS, DHL
OEM control logic for ABB drives – Designed to operate the core regulation functions of ABB ACS-series drives.
DDCS fiber-optic links – In many cases, the board communicates with the power unit and internal modules via ABB’s fiber-optic channels for noise-immune control.
Supports encoder/resolver feedback – Works with feedback modules to enable vector control and precise speed/torque regulation.
Parameter storage and diagnostics – Typically retains drive parameters; status LEDs and fault codes help speed up troubleshooting.
Fieldbus-ready architecture – Compatible with ABB communication option modules to connect PROFIBUS, DeviceNet, Modbus, or Ethernet-based networks.
Form-fit replacement – Intended as a direct swap inside the drive’s control bay to minimize wiring changes and commissioning time.
| Brand / Model | ABB UFC760BE01 (3BHB007030R0001) |
| Product Type | Drive Control Board for ABB ACS-series inverters |
| HS Code | 8504.90.90 (Parts of static converters) |
| Power Requirements | Supplied from the drive’s internal 24 VDC auxiliary bus; typical consumption |
| Operating Temperature | 0 to +55°C (when installed inside a properly ventilated cabinet) |
| Signal I/O Types | Fiber-optic DDCS channels; supports digital/analog I/O and encoder/resolver via associated option modules |
| Communication Interfaces | Fieldbus via ABB plug-in adapters (e.g., PROFIBUS, DeviceNet, Modbus, Ethernet-based) depending on drive configuration |
| Installation Method | Internal card position within the drive’s control section; secured with card guides/screws; ESD-safe handling required |
| Dimensions & Weight | Board-level module; packaged weight typically |
You’ll usually find the UFC760BE01 inside ABB drives running continuous process equipment. Typical scenarios include paper machine sections, rolling mills, extruders, pumps and fans on utility systems, winders/unwinders, compressors, and test stands. One thing I appreciate is how well it holds up in electrically noisy environments—fiber links help a lot in high-HP motor rooms where EMI can be a daily battle.
Shorter downtime – Form-fit replacement means you can restore a line within hours rather than days.
Compatibility – Works with ABB-approved feedback and fieldbus modules, so you can keep existing wiring and network settings in most cases.
Stable process control – Reliable regulation of torque/speed under load changes; operators often report smoother starts and fewer nuisance trips after a clean replacement.
Risk reduction – Backed by a 365-day warranty and functional testing prior to dispatch.
A maintenance supervisor at a metals plant told us their spare UFC760BE01 paid for itself the first time a control board went out during a weekend shift—swap, parameter load, and they were producing within the hour.
Installation & MaintenanceEnvironment – Install inside a sealed or filtered cabinet; keep ambient 0–55°C with adequate ventilation around the drive.
ESD & handling – Use a grounded wrist strap and ESD-safe mat; avoid touching component pins and optical connectors.
Wiring/links – Seat the board fully in the card guides, verify fiber-optic DDCS connectors click in place, and route fibers with proper bend radius.
Parameter management – Back up parameters before removal. After installation, restore parameters and verify firmware compatibility with the existing drive setup.
Functional checks – Run no-load tests, confirm feedback polarity, and perform a brief ramp test to validate speed/torque control response.
Routine care – Keep the cabinet clean; blow off dust with dry, oil-free air periodically; check connector tightness during planned outages; update drive firmware when recommended by ABB.
Manufactured under ISO 9001 quality systems
CE conformity for EMC and safety when installed per ABB drive instructions
RoHS-compliant materials, where applicable for the regional supply
UL considerations follow the parent drive’s certification scope
Warranty: 365 days from shipment
