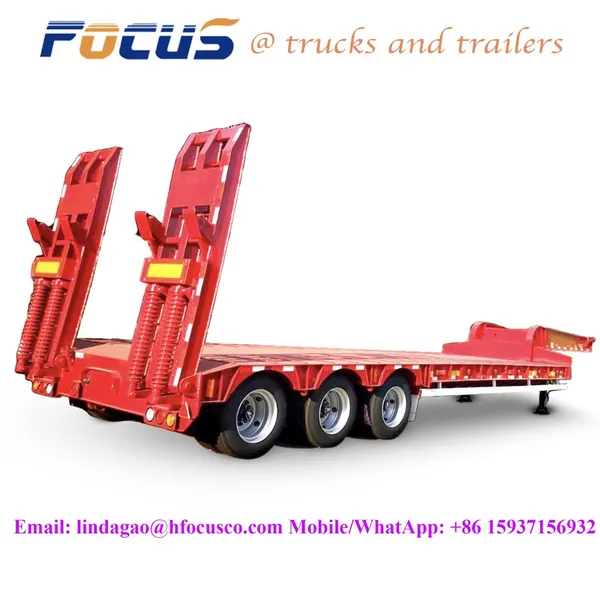

Different types of Lowbed Trailers , low bed trailer, low bed trailer for sale at cost price, with table sizes of 40ft , 2 axle , 3 axle

Chapter 1: What is a lowbed trailer?

Lowbed Trailer are usually used to transport a variety of machinery and equipment, heavy equipment, highway

construction equipment, large tank body, power station equipment, and various excavators, and are used to

transport heavy vehicles (such as tractors, coaches, Subway truck head, etc.), rail vehicles, mining machinery,

forestry machinery, construction machinery (such as excavators, bulldozers, loaders, pavers, cranes, etc.) and

other heavy-duty cargo.

The lower the platform height of the lowbed trailers, the better the stability and safety. Our lowbed trailer has a

large carrying capacity when transporting extra high and medium cargo. FOCUS lowbed trailer height from ground

is usually 1300mm. If you have special needs, FOCUS can also customize it for you.

Lowbed trailers are constructed with a strong and durable frame to handle the weight and stress of heavy loads.

They often have multiple axles, which help to distribute the weight evenly and provide stability during transport.

Some lowbed trailers are equipped with hydraulic systems that enable them to lower the rear end further, making

 it easier to load and unload heavy equipment.

Overall, lowbed truck trailer play a crucial role in facilitating the transportation of heavy and oversized cargo,

ensuring that it can be moved securely and efficiently to its destination.

What is the purpose of a low bed truck?

1. Heavy Equipment Transport: Low bed trucks are commonly used to transport heavy machinery and equipment,

such as excavators, bulldozers, cranes, and industrial machinery. Their low deck height and sturdy construction

enable them to handle the weight and dimensions of these large and heavy loads.

2. Oversized Cargo Transport: Low bed trucks are ideal for hauling oversized cargo that cannot be easily

 accommodated by regular trucks or trailers. This can include items like prefabricated structures, oversized tanks,

wind turbine components, or construction materials with non-standard sizes.

3. Construction Industry: Low bed truck play a crucial role in the construction industry by transporting construction

 machinery and equipment to and from job sites. They are essential for moving heavy construction equipment

between locations, ensuring that projects can proceed smoothly and efficiently.

4. Safe and Stable Transport: The design of low bed truck, with their strong frames, multiple axles, and specialized

suspension systems, ensures safe and stable transportation of heavy loads. This minimizes the risk of accidents, damage to the cargo, and maintains road safety.

1.1: How long is a lowbed trailer?

The 2 axle low bed trailer length: 11500mm

The 3 axle low bed trailer for sale length: 13000mm

The 4 axle lowbed truck trailer length: 15800mm

1.2: How wide is a semi low bed trailer?

Most popular semi low bed trailer width: 3000m. Can be customized if you have special needs.

1.3: Lowbed trailer dimensions

2 axle low bed trailer price dimensions: 11500*2500*2900mm

3 axle low bed semi trailer dimensions: 13000*3000*3400mm

4 axle lowbed trailer for sale dimensions: 15800*3000*3400mm

1.4: Lowbed semi trailer loading capacity

2 axle lowbed trailer capacity: 30-40 ton

3 axle low bed truck trailer capacity: 50-80 ton

4 axle lowbed trailer loading capacity: 90-120 ton

1.5: How much does a low bed truck trailer weight?

2 axle lowbed for sale: 9-11 ton

Tri axle lowbed trailer for sale: 10-12 ton

4 axle low bed truck trailer: 11-13 ton

Chapter 2: Common structure and transportation of lowbed trailer

There are many structures and styles of lowbed trailer. Below we introduce the two most common styles.

2.1 The first structure of the low bed trailer

Low bed trailer usually use a high-low frame, that is, the front section of the frame is a gooseneck (the traction pin

at the front section of the gooseneck is connected to the traction saddle on the tractor, and the back end of the

gooseneck is connected to the low bed semi trailer frame).The middle part is the cargo platform (the lowest part

 of the frame).

This structure can transport a variety of heavy equipment, can also transport other general cargo, can also

 transport 40-foot containers, 20-foot containers. The export volume of machine carriers of this structural style to

 Africa is the largest. Low bed trailer carrier for sale NZ India price.

2.2 The second structure of low bed truck trailer

Another structure commonly used in low bed truck trailer: a concave beam frame. The front section of the frame is

gooseneck (the traction pin at the front section of the gooseneck is connected to the traction saddle on the tractor,

and the back end of the gooseneck is connected to the low bed truck trailer frame), the semi low bed truck trailer

middle section is the cargo platform (the lowest part of the frame), and the rear end is Wheel frame (including

wheels).
