KW1-M119F-00X KW1-M229F-00X KW1-M329F-00X DRIVE ROLLER ASSY

Shen Zhen Zhongke Technology Co.,limited Verified Business License

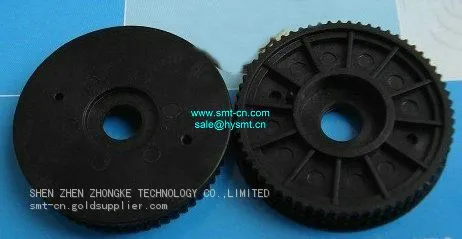

KW1-M119F-00X KW1-M229F-00X KW1-M329F-00X DRIVE ROLLER ASSY thumbnail-1
KW1-M119F-00X KW1-M229F-00X KW1-M329F-00X DRIVE ROLLER ASSY photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YAMAHA
Model Number:
KW1-M119F-00X
Condition:
New
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YAMAHA
Model Number KW1-M119F-00X
Condition New

KW1-M119F-00X KW1-M229F-00X KW1-M329F-00X DRIVE ROLLER ASSY

Other yamaha part：
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW1-M2210-00X BODY ASSY 1
2 K87-M1112-10X KNOCK PIN 1 FRONT
3 KW1-M1113-00X KNOCK PIN 1 REAR
4 K87-M1115-00X CIRCULAR RIVET 2
5 KW1-M226F-00X LEVER METAL 1
6 KW1-M226H-00X METAL AXIS 1
7 KW1-M226W-00X ROLLER 1
8 KW1-M2250-00X HANDLE LEVER ASSY 1
9 KW1-M116K-00X LEVER AXIS 1
10 KW1-M226D-00X TENSION LEVER ASSY 1
11 KW1-M116F-00X LEVER AXIS PIN 1
12 K87-M1115-00X CIRCULAR RIVET 2
13 KW1-M2231-00X CLAMP LEVER UNIT 1
14 KW1-M2232-00X CLAMP LEVER ASSY 1
15 K87-M213A-00X CLANK ARM ASSY 1
16 K87-M113D-00X ARM 2
17 K87-M113E-00X HINGE PIN 2 1
18 K87-M11D7-00X CIRCLIP E 2
19 K87-M213L-10X CLAMP LEVER AXIS 1
20 K87-M213M-00X AXIS PIN 1
21 K87-M113H-00X PUSH PIN 1
22 K87-M111V-00X SCREW,SET 2
23 KW1-M226J-00X METAL SHAFT 1
24 KW1-M22B5-00X BOLT,HEX SOCKET HEAD 3
25 KW1-M2291-00X DRIVE ROLLER UNIT 1
26 KW1-M2292-00X INDENTATION LVR ASSY 1
27 KW1-M229F-00X DRIVE ROLLER ASSY 1
28 K87-M117B-00X PLANE WASHER 1
29 K87-M11BB-00X SCREW,FLAT HEAD + IB 1
30 KW1-M229K-00X SPRING 1
31 KW1-M229L-00X IDLE ROLLER ASSY 1
32 KW1-M229R-00X COLLAR 1
33 K87-M21BB-00X SCREW,TRUSS HEAD 1
34 KW1-M119P-00X SPRING 1
35 KW1-M22A1-00X LOWER GUIDE PLATE R 1
36 K87-M53BS-00X SCREW,PAN HEAD + 2
37 KW1-M22A3-00X LOWER GUIDE PLATE L 1
38 K87-M111N-00X SCREW,PAN HEAD + 2
39 KW1-M125L-10X HOLD ARM 1 BLACK
40 KW1-M115M-00X ARM AXIS

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW1-M3210-00X BODY ASSY 1
2 K87-M1112-10X KNOCK PIN 1 FRONT
3 KW1-M1113-00X KNOCK PIN 1 REAR
4 K87-M1115-00X CIRCULAR RIVET 2
5 KW1-M226F-00X LEVER METAL 1
6 KW1-M326H-00X METAL AXIS 1
7 KW1-M236V-00X ROLLER 1
8 KW1-M3250-00X HANDLE LEVER ASSY 1
9 KW1-M116K-00X LEVER AXIS 1
10 KW1-M226D-00X TENSION LEVER ASSY 1
11 KW1-M116F-00X LEVER AXIS PIN 1
12 K87-M1115-00X CIRCULAR RIVET 2
13 KW1-M2231-00X CLAMP LEVER UNIT 1
14 KW1-M2232-00X CLAMP LEVER ASSY 1
15 K87-M213A-00X CLANK ARM ASSY 1
16 K87-M113D-00X ARM 2
17 K87-M113E-00X HINGE PIN 2 1
18 K87-M11D7-00X CIRCLIP E 2
19 K87-M213L-10X CLAMP LEVER AXIS 1
20 K87-M213M-00X AXIS PIN 1
21 K87-M113H-00X PUSH PIN 1
22 K87-M111V-00X SCREW,SET 2
23 KW1-M326J-00X METAL SHAFT 1
24 KW1-M22B5-00X BOLT,HEX SOCKET HEAD 3
25 KW1-M3291-00X DRIVE ROLLER UNIT 1
26 KW1-M3292-00X INDENTATION LVR ASSY 1
27 KW1-M329F-00X DRIVE ROLLER ASSY 1
28 K87-M117B-00X PLANE WASHER 1
29 K87-M11BB-00X SCREW,FLAT HEAD + IB 1
30 KW1-M229K-00X SPRING 1
31 KW1-M329L-00X IDLE ROLLER ASSY 1
32 KW1-M229R-00X COLLAR 1
33 K87-M21BB-00X SCREW,TRUSS HEAD 1
34 KW1-M119P-00X SPRING 1
35 KW1-M32A1-00X LOWER GUIDE PLATE R 1
36 K87-M53BS-00X SCREW,PAN HEAD +2
37 KW1-M32A3-00X LOVER GUIDE PLATE L 1
38 K87-M111N-00X SCREW,PAN HEAD +2
39 KW1-M325L-10X HOLD ARM 1 BLACK
40 KW1-M325M-00X ARM AXIS 1

The procedures of Electronic Components inspection includes:



▪ Lable Verification to check if the part is original and consistent with  the order
▪ Appearance Inspection to make sure the package is correct and there is no damage to the surface
▪ Package Inspection
▪ Third-party test conduction via our in-house, certified test labs for quality guarantee
▪ Picture archive for the shipping package

Each step of the inspection is very rigorous and aims to ensure that all products are delivered with the expected standard of excellence and quality.
