Product Details
Brand Name: | Hesheng | Model Number: | Packaging production line | Application: | Other |
Packaging Material: | Other |
Product Description
〖Introduction 〗

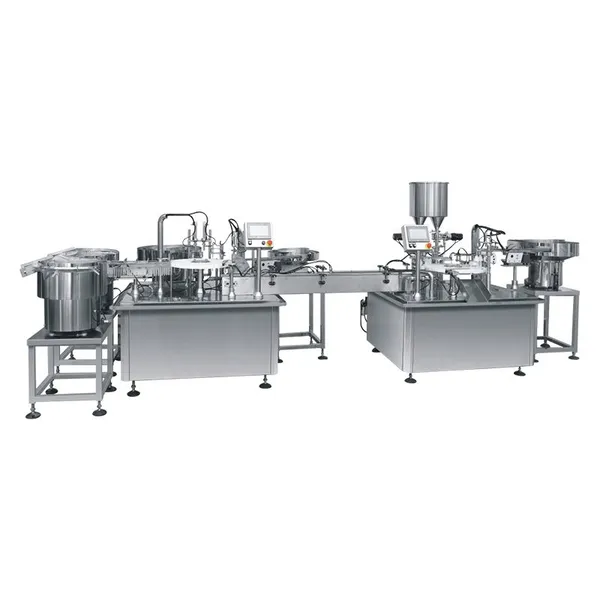

Drug packaging production line is a kind of automatic equipment used for drug packaging, it can complete each link of drug packaging, usually composed of multiple units, each unit completes a different process.
〖machine features 〗
〓 Glass bottle oral liquid production line: composed of bottle washing machine, tunnel oven, liquid filling and capping machine.
〖parameters 〗
〔〔16-channel number-grain packing lines——HS-BZX016〕〕
『Bottle machine』
Applicable bottle type: plastic round bottle
Production capacity: 30-100 bottles / minute (depending on bottle size)
Power supply: AC220V, 50 HZ
Overall dimension: L1350 * W1000 * H1270mm
Weight: 230 KG
『Electronic granator』
Applicable objects: tablets / capsule / soft capsule / pill, etc
Production speed: 10-70 bottles / min
Applicable bottle type: bottle diameter 20-50mm, height 40-180mm
Hopper capacity: about 70L
Power supply power: 220V / 50 HZ 0.9 KW
Gas consumption: 0.6 Mpa, 3.8 L / min
『Drying agent plugs into the machine』
Applicable bottle type: round, flat round, square, flat square bottle
Drying ant bag type: disk desiccant bag, specific size according to the size of the bottle
Production capacity: 10-70 bottles / min
Power supply and power: AC220V / 50 HZ 0.5 KW
Gas source: 0.6 Mpa
『Rub cover machine』
Applicable objects: ordinary cover, with protective ring cover, double cover, clamshell and other plastic cover
Production speed: 10-100 bottles / min
Power supply power: 220V / 50 HZ 1.8 KW
Gas consumption: 0.6Mpa 3L / min
『Air-cooled electromagnetic induction sealer』
Bottle diameter: 20-80mm
Bottle height: 0-490mm
Can meet the linear speed: 0-10m / min
Maximum power: 2,000 W
Sealing speed: 0-200 blts / min
『Round bottle labeling machine』
Label range: width not exceeding 110mm, length according to the circumference of the bottle
Production capacity: 50-100 bottles / min
Power supply and power: AC220V / 50 HZ 0.15 KW
Gas source: 0.6 Mpa
〔〔High-speed production line of oral liquid——HS-BZX350〕〕
Applicable specification: 20-100ml
Production capacity: 150-220 bottles / min
Fading error: ± 1-2%
Water pressure and water consumption: 0.3-0.5mpa 0.6~1.5m³ / h
Power supply: 380 / 220v 48KW
Pressure and gas consumption of purified compressed air: 0.6-0.8mpa 30~60m³ / h
Drain air volume: 3,200 m ³ / h
Weight: 8,000 KG
Overall dimension: 1200025002000mm
〔〔Eye drops production line——HS-BZX380〕〕
Applicable specification: 2-20ml
Production capacity: single head 40-55 bottles / minute double head 60-100 bottles / min
Pass rate:> 99%
Fading error: ± 1-2%
Capitance: 220 / 380V 2.5KW
Air pressure and gas consumption of purified compressed air: 0.6-0.8MPa 10-30m³ / h
Weight: 950 KG / 1200 KG
Overall dimensions: 7,500 x2000x1750mm
〔〔Spray production line——HS-BZX390〕〕
Applicable specification: 5-250ml
Production capacity: single head 30-60 bottles / minute double head 50-120 bottles / min
Pass rate:> 99%
Fading error: ± 1-2%
Capacity: 220 / 380V 3KW
Air pressure and gas consumption of purified compressed air: 0.6-0.8MPa 10-30m³ / h
Weight: 1500 KG / 2500 KG
Overall dimension: 8000x20001750mm
〔〔Gel pushrod combination filling production line——HS-BZX301〕〕
Applicable specification: 1-5g
Production capacity: 40-60 pieces / min
Fading error: ± 3%
Capitance: 220V,2.5KW
Pressure and gas consumption of purified compressed air: 0.6-0.8MPa, 50-60m³ / h
Weight: 1000-2000 KG
Overall dimensions: 550022001750mm
〔〔Control bottle, effervescent tablet bottle production line——HS-BZX305〕〕
Applicable specification: tablet / capsule / bolus
Production capacity: 30-100 bottles / min
Electric capacity: 220V, 3KW
Weight: 950kg
Overall dimensions: 300020001750mm
Note: As the machine is constantly updated, the specific parameters are subject to the physical or contract.
