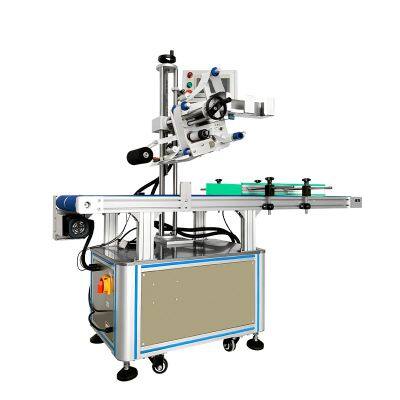

Round tanktargeting machine
- 23 Piece / Pieces per Month
- Toycover film sealing and cutting machine
- Fruitmulti-functional packaging machine Cloud warehousecombined packaging machinery
- Black teainternal and external package linkage line Packaging assembly line
- Hardware suppliescarton molding machine Logistics cartonfold bottom sealing machine
- Contraction equipment Skin care productsthermal shrinkage packaging machine
- Graphic cartonbag sealing and cutting machine
Product Details
Brand Name: | Hesheng | Model Number: | Labelling machine | Application: | Other |
Packaging Material: | Other |
Product Description
「equipment introduction 」
The marking machine is the equipment that pasted the adhesive paper label (paper or metal foil) on the PCB, product or specified packaging. The labeling machine is an important part of modern packaging, which can be produced by single machine or connected to the assembly line production.
「machine features 」
◆ The adjustment is simple, the labeling speed, the delivery speed can be adjusted according to the need.
◆ Widely used in food, daily chemical, medicine, electronics and other industries.
◆ Human-computer interaction interface, the parameter modification is intuitive and clear.
「machine parameters 」
〔〔One-button single-player——HS-TB101〕〕
Type: research control step motor control
Order speed: 40-100 pieces / min
Order accuracy: ± 3mm
Exit speed: 25 m / min
Conveyor belt speed: 25 m / min
Conveyor belt length: 1,000 mm
Height: 600-850mm
Host direction: right and left
Carton Height: Max.300mm
Carton width: Max.300mm
Overall dimension: L1000 * W500 * H1200mm
Weight: 100kg
Power: 400W
Power supply: 220V, 50 / 60Hz
Operating ambient relative temperature: 0 to 50℃
Use of relative humidity: 15~90%
〔〔Touch screen type stick single machine——HS-TB102〕〕
Type: research control step motor control
Order speed: 50-100 pieces / min
Order accuracy: ± 3mm
Exit speed: 31 m / min
Conveyor belt speed: 31 m / min
Conveyor belt length: 1,200 mm
Height: 600-850mm
Host direction: right and left
Carton Height: Max.300mm
Carton width: Max.400mm
Overall dimension: L1200 * W700 * H1300mm
Weight: 120kg
Power: 400W
Power supply: 220V, 50 / 60Hz
Operating ambient relative temperature: 0 to 50℃
Use of relative humidity: 15~90%
〔〔Rub the rolling vertical round bottle labeling machine——HS-TB211〕〕
Labeling speed: approximately 0-150P / min
Labeling accuracy: ± 1mm
Product diameter range: 20-110mm
Product height range: 30-350mm
Label length range: 10 to 300 mm
Width of the label base sheet: 10-150mm
Label OD: Max.300mm
Label inner diameter: Max.76mm
Ambient temperature: 0-50℃
Ambient humidity: 15-85%
Voltage specification: 220V, 50Hz
Dimensions: L2100 * W1300 * H1600mm
Weight: 150 Kg
〔〔Position the vertical bottle labeling machine——HS-TB212〕〕
Voltage specification: 220V, 50Hz
Labeling speed: approximately 0-60P / min
Labeling accuracy: ± 1mm
Product diameter range: 20-110mm
Product height range: 30-350mm
Label length range: 10 to 350 mm
Width of the label base sheet: 10-150mm
Label OD: Max.300mm
Label inner diameter: Max.76mm
Ambient temperature: 0-50℃
Ambient humidity: 15-85%
Dimensions: L2100 * W1500 * H1600mm
Weight: 150 Kg
〔〔Round bottle label machine——HS-TB320〕〕
Labeling speed: 30~50 pieces / min (related to bottle and label size)
Labeling accuracy: ± 1mm (excluding product, label error)
Product diameter range: φ 40~100mm
Product height range: 25~230mm
Label length range: 40 to 300 mm
Width of the label base sheet: 20~130mm
Label OD: Max.Φ300mm
Label drum inner diameter: Φ 76mm
Applicable power supply: 220V, 50Hz
Dimensions: L1750 * W800 * H1450mm
Weight: 185 Kg
〔〔High-speed single machine——HS-TB104〕〕
Type: research control step motor control
Order speed: 40-150 pieces / min or above
Order accuracy: ± 3mm (no stickers and labeling errors)
Exit speed: 5~50 m / minute
Conveyor belt speed: 5~50 m / min
Delivery line width: 400mm
Delivery line length: 1,500 mm
Height of conveying surface above ground: 700-850mm (adjustable)
Host direction: right and left
Carton Height: Max.400mm
Carton width: Max.400mm
Overall dimensions: about L1500 * W600 * H1500mm
Weight: about 150kg
Power: about 400W
Power supply: 220V, 50 / 60Hz
Operating ambient relative temperature: 0 to 50℃
Use of relative humidity: 15~90%
