ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization

ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization thumbnail-1
ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization thumbnail-2
ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization thumbnail-3
ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization thumbnail-4
ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization photo-1

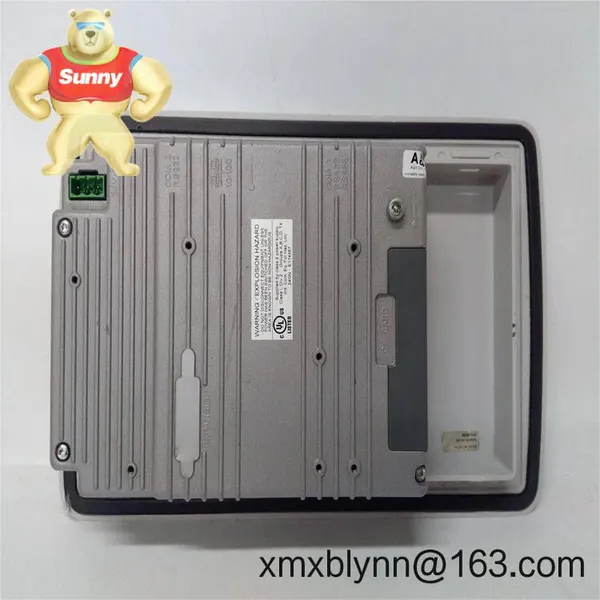

ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization photo-2

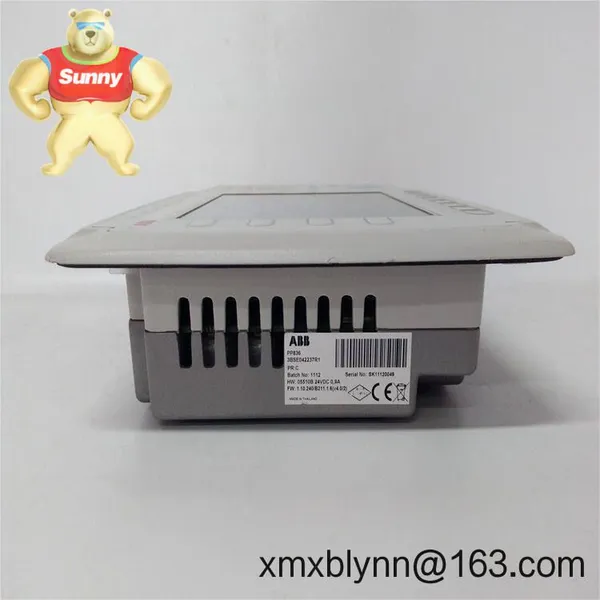

ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization photo-3

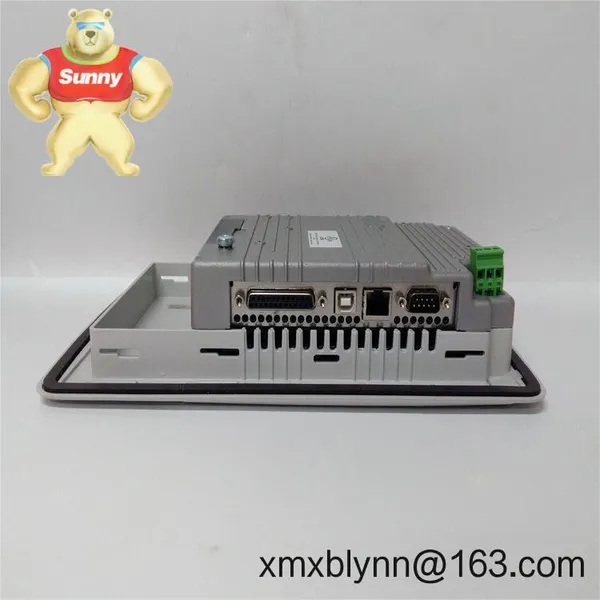

ABB PP836 (3BSE042237R1) – Panel 800 HMI for Reliable Machine and Line Visualization photo-4
US$ 1700 ≥1 Piece
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2014
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Xiamen Xiongba E-commerce Co., LTD
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Company's Order Placement Process and Guarantees

  • Warranty: 365 days from delivery

  • Lead time: 1 week if in stock; no more than 1 month at the latest

  • Payment: 50% advance payment; full payment before delivery

  • Express options: FedEx, UPS, DHL

  • Packing: Anti-static protection and shock‑absorbing materials for transit

Key Features

  • Industrial-grade touchscreen HMI – Panel-mounted operation that operators can use with gloves in most cases; IP-rated front helps in dusty shop floors.

  • 24 VDC power input – Common in control cabinets; simplifies integration with existing PLC panels.

  • Built-in Ethernet and serial ports – Typically includes 10/100 Ethernet plus RS‑232/RS‑485 for legacy devices and drives.

  • Protocol flexibility – Commonly used with Modbus TCP/RTU and ABB controller drivers in Panel Builder 800 projects.

  • Compact, service-friendly design – Front access to USB for application download or data logs; reduces maintenance time.

  • Stable runtime platform – In many cases runs the robust Panel 800 runtime, suitable for 24/7 duty.

Technical Specifications
Item Specification
Brand / Model ABB PP836 (3BSE042237R1)
HS Code 8537.10 (boards, panels, consoles for electric control, ≤1000 V)
Power Requirements 24 VDC nominal (commonly 18–32 VDC in typical installations)
Operating Temperature 0 to +50°C (typical for Panel 800 HMIs)
Signal I/O Types No onboard discrete/analog I/O; operator input via touchscreen
Communication Interfaces 10/100 Ethernet (RJ45), RS‑232, RS‑485; USB for project transfer/data
Installation Method Panel/flush mounting; front panel typically IP65 when correctly installed
Application Fields

The PP836 is commonly deployed in machine panels, packaged skids, and mid-size stations where operators need clear visualization and simple recipe handling:

  • Discrete manufacturing cells (assemblers, testers, indexing tables)

  • Process skids (pumps, filtration, CIP) using Modbus TCP/RTU

  • Drives and motion panels integrating via serial links or Ethernet

  • Utilities and facility systems (compressors, boilers, cooling towers)

  • Integration with ABB AC 800M/800xA environments via Ethernet

D1F2A77952A7729F5FB225D562FE4249

Advantages & Value

  • Reliability in 24/7 duty – PP-series HMIs are known for steady runtime behavior; fewer unexplained reboots in many cases.

  • Backward-friendly connectivity – Having both Ethernet and serial ports eases migration from older PLCs without gateways.

  • Engineering efficiency – Panel Builder 800 projects are typically fast to deploy and easy to maintain for multi-line rollouts.

  • Lower lifecycle cost – Readily available 24 VDC power, standard cutouts, and straightforward spares stocking.

  • Technical support – Documentation and firmware resources are widely available; we can assist with replacement mapping and protocol checks.

Installation & Maintenance

  • Cabinet standards – Mount on a rigid, properly cut panel; ensure the gasket seats evenly for IP protection. Keep clear airflow behind the unit.

  • Power & wiring – Use a clean 24 VDC source; in many setups, 18–32 VDC tolerance is acceptable. Ground the panel per EMC best practices.

  • Networking – Shielded Ethernet in high-noise areas; segregate communication and power cables where possible.

  • Safety – De‑energize before servicing; avoid solvent-based cleaners on the touchscreen; use antistatic precautions during handling.

  • Routine maintenance – Wipe the screen with lint-free cloth; back up application to USB; review alarm logs quarterly; apply firmware updates after testing on a spare if you can.

  • Spares strategy – Keep one spare PP836 or a compatible Panel 800 variant for critical lines to reduce downtime risk.

Quality & Certifications

  • CE and RoHS compliant; UL/cUL listing is typical for Panel 800 units

  • Manufactured under ISO 9001 quality systems

  • Warranty: 365 days (coverage as stated above)

Related Accessories and Compatible Items

  • Engineering software – Panel Builder 800 for project configuration and runtime deployment.

  • 24 VDC power supplies – ABB CP‑E series is a common pairing in control cabinets.

  • Industrial Ethernet switches – Unmanaged or managed 10/100 switches for segregated machine networks.

  • USB storage – For firmware upgrades, project transfer, and data logging exports.

  • Panel gaskets and mounting clips – Maintain proper IP rating after service or reinstallation.

A maintenance lead at a food & beverage plant told us they swapped a legacy HMI with a PP836 over a shutdown weekend. The biggest surprise seemed to be how quickly Modbus RTU tags came online—no gateway changes were needed, and operators recognized the screens immediately.
