ISUZU 21SEATS JEEPNEY

Henan Focus Vehicles Co.,ltd.
ISUZU 21SEATS JEEPNEY thumbnail-1
ISUZU 21SEATS JEEPNEY thumbnail-2
ISUZU 21SEATS JEEPNEY photo-1
ISUZU 21SEATS JEEPNEY photo-2
US$ 88888 - 99999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
focus
Place of Origin:
China
Model Number:
focus 035
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name focus
Place of Origin China
Model Number focus 035
Condition New
Transmission Type Manual
Fuel Type Diesel
Emission Standard Euro 3
Engine Capacity 6 - 8L
Seats 16 - 30

JEEPNEY MINIBUS

What is JEEPNEY

1. Structure:

The structure of Jeepney is based on the Isuzu chassis and to develop a 6 m medium bus coach, removing the rear siege of the cabs, and adding access cover; Chassis changes involving frame, fuel tank position, air filter intake, etc.

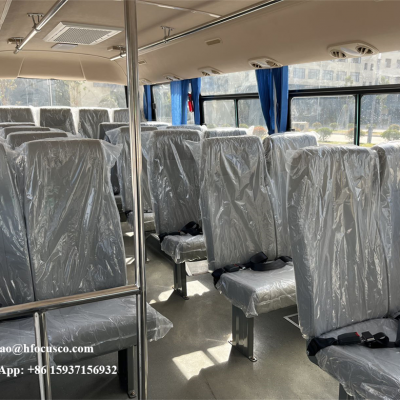

2.Seats:
The Seat is made of leather material, longitudinal seat, one row from each left and right side, can seats15-31 passenger.

3.Process:
The production process in our factory is superb, there are advanced production equipment, supporting mold, manufacturing process,It can custom produce for customers, and complete technology R & D, equipment assembly and commissioning .

4.Cabin:
The cab instrument panel, gearbox, engine, etc. are all equipped with Isuzu chassis, with good quality and strong performance.
TECHNICAL SPECIFICATION
Main specificationChassis brandISUZU
Chassis modelNPR
Overall dimension(L*W*H)6950*2250*2800mm
Internal height1730mm
Axle No.2
Curb weight4100kg
GVW7300kg
ChassisCabinSingle row with flip cab, radio
Drive modle4*2, left hand drive
Wheel Base3815mm
Front/rear suspension1110/2025mm
Front/Rear AxleQingling 3000010-LP51A/2400010-LE40A
Frame700×170 (4.5)
Clutch250mm Diaphragm spring clutch
GearsMSB-5SM：5.016;2.524;1.489;1.0;0.713;R4.783
Steering Rack803
Air filterFilter air filter
Fuel Tank100L
Number of leaf springs3/3+2
Tyre size7.00R16 14PR, with one spare tyre
Tyre number6+1 nos
EngineFuel/Engine type:4KH1CN5MD(4JH1-TC)
Type6 cylinders, in-line, 4-stroke,water-cooled,turbo inter-cooling,diesel engine
Engine power130hp/96kw/2900 r/min
Engine emission standardEURO 5
Displacement3L
Max. torque277N.m
Vehicle PerformanceMaximum speed98km/h
Minimum turning radius190mm
Maximum climbing angle30%
Van body structure parameters
Van body dimensionsLength5840mm
Width2250mm
Height1830mm
WindowTypeSliding tempered glass, with aluminum frame
Air conditioningTypeNon independent, overhead air conditioner
BrandKinglong
Maximum refrigerating capacity16000Kcal/h
SeatsNos.15+1
MaterialBus Seats，Imitation leather seats


    Product Tags: JEEPNEY MINIBUS , cheap bus , 21 seats bus , diesel bus , coach bus , China bus , city bus , 30 seats bus , left hand drive bus
