797 Audio CZB140-HL Custom 14mm Condenser Microphone Electret Capsule Hyper-cardioid For Diy Microphone
US$ 3 - 15
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
797Audio
Place of Origin:
China
Model Number:
CZB140-HL
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
10 days
Related Products
-
797 Audio CZB160-UL Custom 16Mm Mic Capsule Factory Supplier Cardioid Professional Electret DIY Condenser Microphone CapsuleUS$ 3 - 15MOQ: 1 Piece -
797 Audio CY011 Custom 16mm 3um Gold-plated Professional Cardioid Dynamic Condenser Microphone Electret CapsuleUS$ 3 - 15MOQ: 1 Piece
-
797 Audio CY020 20mm Electret Condenser Microphone Electret Capsule 3um Mylar, Gold-plated Noise Reduction High Sensitivity Mic ReplacementUS$ 6 - 25MOQ: 1 Piece
-
797AUDIO CY001 34mm Centering Single Condenser High Sensitive Microphone Capsule Gold-plated Large Diaphragm ProfessionalUS$ 17 - 35MOQ: 1 Piece
-
797AUDIO CY002 34mm Centering Condenser Microphone Capsule M7 Dual Side With Saddle Set for U47 Large-diaphragm for DIY StudioUS$ 17 - 35MOQ: 1 Piece
Brand Name
797Audio
Place of Origin
China
Model Number
CZB140-HL
Use
Other, microphone capsule
Style
Other, capsule
Communication
Wired

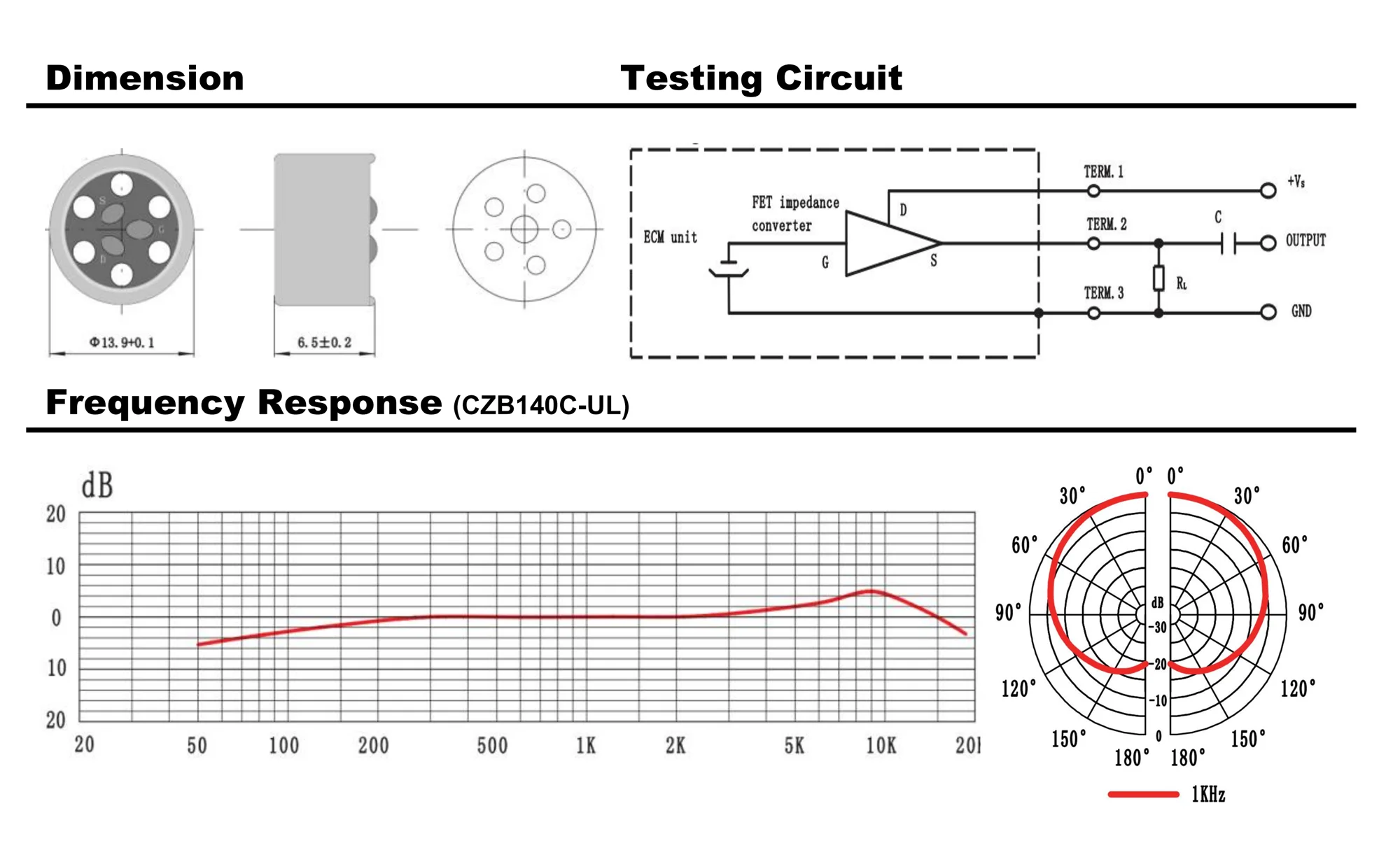

Type |
CZB140C-HL |
CZB140-HL |
CZB140-OL |
Sensitivity (dB@1kHz, 0dB=1V/Pa) |
-36.0 |
-34.0 |
-40.0 |
Polar Pattern |
Cardioid |
Hyper-cardioid |
Omni |
Frequency Response (Hz) |
50-18000 |
20-20000 |
20-20000 |
Signal-to-Noise Ratio (dB) |
≥ 76 |
≥ 76 |
≥ 72 |
Maximum SPL (1% T.H.D.@1kHz) |
120 |
117 |
120 |
Operating Voltage (V) |
5.0 |
5.0 |
5.0 |
Output Impedence (kΩ) |
≤ 1.0 |
≤ 1.0 |
≤ 1.0 |
Diaphragm |
3 μm Mylar, Gold-plated |
2 μm Nickel-plated |
|
Weight (g) |
1.7 |
1.7 |
1.8 |
Interview, Live Chat, Recording, Broadcasting, Conference, Speech, Gaming,Singing, Entertainment,Etc.
Beijing 797 Audio Co.,Ltd. was founded in 1953 as an electric-acoustic manufacturer with long history in the field of microphone,speaker system,audio,etc.
Beijing 797 Audio Co.,Ltd. has over 40,000 square meters area in total with over 20 production lines, and over 1,000 employees. With 70 years of development, we have full set of manufacture capability on die-casting,machining,painting,printing and assembly.
In the past two decades,we have been devoted ourselves into developing R&D, manufacturing, quality system and marketing activities.
We are working on the new technologies and supply better products and best service for our consumers.
Beijing 797 Audio Co.,Ltd. has set microphone, speaker, audio national standard,industry standard for audio, which cover audio products, public broadcasting and other fields. We already get over 70 patents on microphones and loudspeakers. We get ISO9001,ISO14001,ISO45001, and CE certificates, and our products have also been winning awards continuously.
And we cooperate with many famous brands in the world, also supply OEM&ODM for famous brands. Our cusomers give positive feedback to us.
Now,Beijing 797 Audio Co.,Ltd.'s microphones have been sold to over 50 countries in the world, such as United States,United Kindom, Germany,Austria,Japan,South Korea,Austrilia,New Zealand, Saudi Arabia,etc.
Belive in the power of the quality,Belive in 797 Audio.
Beijing 797 Audio Co., Ltd. has set microphone, speaker national standard, industry standard for audio, It covers audio products, public broadcasting and other fields. We already get over 70 patents on microphones and loudspeakers. We get ISO9001,ISO14001,ISO45001,and CE certificates, And our products have also been winning awards continuously.
Quickly to find out the question you concerned.
Q-Why choose 797Audio?
1.Beijing 797 Audio Co., Ltd. is founded in 1953 with over 70years experience. 2.Professional R&D team over 200 engineers, which ensure new, popular and good quality products are launched continuously. 3.Experienced QC team over 50 employee, we have our own R&D lab,Quality Inspection Department,strictly confirm to ISO9001,ISO14001,ISO45001,ect. 4.Beijing 797 Audio Co., Ltd. has set microphone, speaker national standard, industry standard for audio, It covers audio products, public broadcasting and other fields. 5.Patents and certificates: We already get over 70 patents on microphones and loudspeakers. And our products get CE,FCC,UKCA,RoHS,ect. 6.797 Audio can supply 797 Audio products,OEM,ODM. 7.Professional and responsible marketing team and service team supply one-stop sales service.
Q-Can 797 Audio supply OEM or ODM for us?
Yes.We can supply 797 Audio brand product, OEM or ODM for you. Just tell us your ideas and 797 Audio will help to carry out your ideas into perfect products. Beijing 797 Audio Co., Ltd. has a professional team with much more experience in design and manufacturing. 797 Audio provides exceptional one-stop integrated design and manufacturing services to help customers develop their existing brands or new product lines. Our dedicated R&D team closely follows global trends of microphone industry to ensure we are able to meet your high expectations and turn your idea into ready to sell products.
Q-How can I get a sample to check your quality?
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q-What is the sample lead time?
The sample is 1 day under the stock is available, If making sample,after we confirm all details we will inform you the delivery date.
Q-What about the lead time for mass production?
Honestly, it depends on the order quantity and the time you place the order. If the product is in stock, the lead time is about 1-5 workdays. If OEM/ODM, the lead time is about 4-8 weeks according to the quantity.
Q-What is your terms of delivery?
You can choose the one which is the most convenient or cost effective for you. EXW,FOB,CFR,CIF,ect.
The transportations are by express, by sea, by train or by air.
