Fin Swimming Timing Software

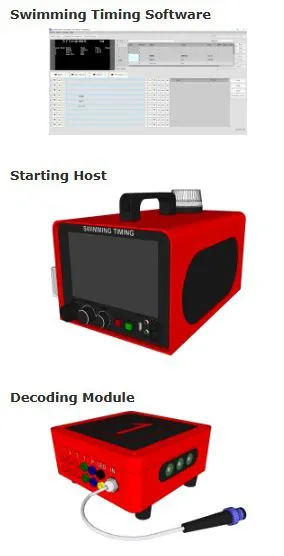

1. Fin Swimming Timing Software
Features:
Supporting Fin Swimming referee scoring.
Display welcome info, order info, score info and rank info.
Record results, and generate reports.

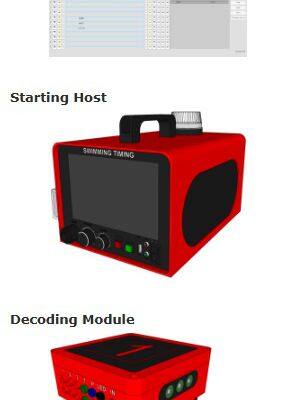

2. Starting Host
Specification:
Size: 320 x 220 x 170 (mm)
Weight: 6.4 KG
Features:
Swimming starting host, which is connected with the system, battery and horn.
Control software through wireless and wired network connection.
3. Decoding Module
Specification:
Size: 148 x 148 x 60 (mm)
Material: Plastic
Weight: 0.3 KG
Features:
It is used to connect starting block, touchpad, timing push button, speaker and other
equipments to realize the control and data reading functions of communication controller for each
equipment.

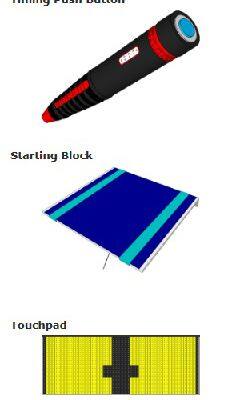

4. Timing Push Button
Specification:
Size: 115 x 25 x 25 (mm)
Material: Plastic
Weight: 0.1 KG
Features:
The single lane referee timed the time manually.
Take remedial measures to prevent the failure of the touchpad during the competition.
5. Starting Block
Specification:
Size: 450 x 400 x 45 (mm)
Material: Iron
Weight: 4.0 KG
Features:
The front of the device has a built-in LED green flash speed light synchronized with the starting system,
which is convenient for hearing-impaired swimmers to jump and start quickly.
Provides the starting reaction of the athletes and the baton handover time of the relay competition,
accurate to 0.01 seconds.
The device has 2 adjustable nylon fastening straps, which can be used with various domestic starting
blocks.
6. Touchpad
Specification:
Size: 2375 x 900 x 70 (mm)
Material: Iron + PVC
Weight: 10.0 KG
Features:
There are no blind spots on the entire touch panel surface. The touch panel is embedded with a
pressure electronic sensor,
equipped with a full-face switch system, with a sensitivity of 2~3kg and equal force.
The surface is made of all-plastic (PVC) non-slip shell. In order to protect the long-term use of the
swimming pool wall and the safety of personnel,
stainless steel products are not allowed.
7. Meet Management Server (OVR)
Specification:
Model: KS-MMS-MINI
Size: 260x135x35 (mm)
Weight: 1.0 KG
Features:
Easy to create a match, and import the match entry information.
Arrangement the match with variants of game systems. Including
elimination, round-robin, etc.
Provide the match information to the scoring software on each
venue/court.
Gather the real time score and statistics information from the scoring
software. Monitor the progress of the match.
Summary and print integrated report.
Generate standard reports for the match, including start-list, results,
combined results, ranking, etc.
Print certifications with adjustable print templates.
Print the team score report.
Open interface with ODF compatible data feed.
6. TTS Module
Specification:
Model: KS-TTS-MODULE
Size: 125x95x35 (mm)
Features:
Automatic voice call in the roll-call area.
7. Digital Timer
Specification:
Model: DT-40
Size: 570x200x120 (mm)
Weight: 2.3 KG
Material: ABS resin
Display: LED (White/orange/red/green)
Power: AC 100V~240V 50/60HZ
Communication: Wireless
Features：
Contest timer.
Timeout timer.
8. Video Arbitration System
Features:
Record and replay the HD video with different angles on maximum 8 channels.
Variant replay speed selection.
Mark and export video clips on any time.
Link with scoring and timing system, display the game clock and referee operations on the replay video.
Pan & zoom the video on any channel, which can see exactly the details of the view.
Display the live or replay video onto the LED screen in the stadium.
Success Stories：

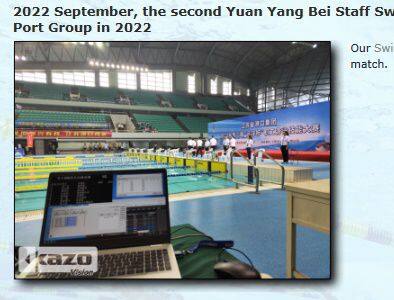

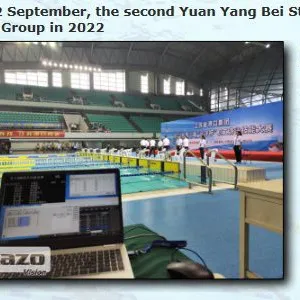

2022 September, the second Yuan Yang Bei Staff Swimming Skills Competition of Jiangsu Port Group in 2022
Our Swimming Timing System is successfully used in the match.

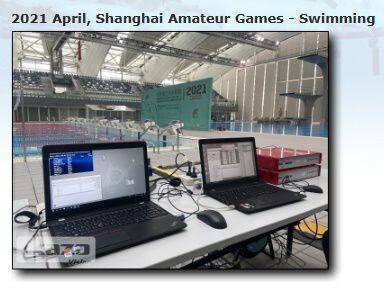

2021 April, Shanghai Amateur Games - Swimming
2020 August, Swimming Super Nova Games - Swimming
