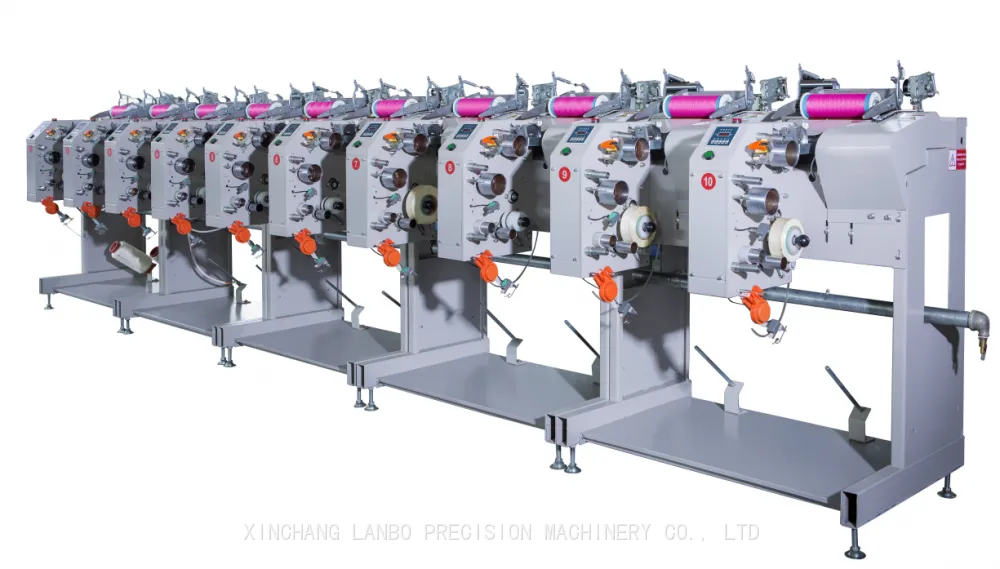

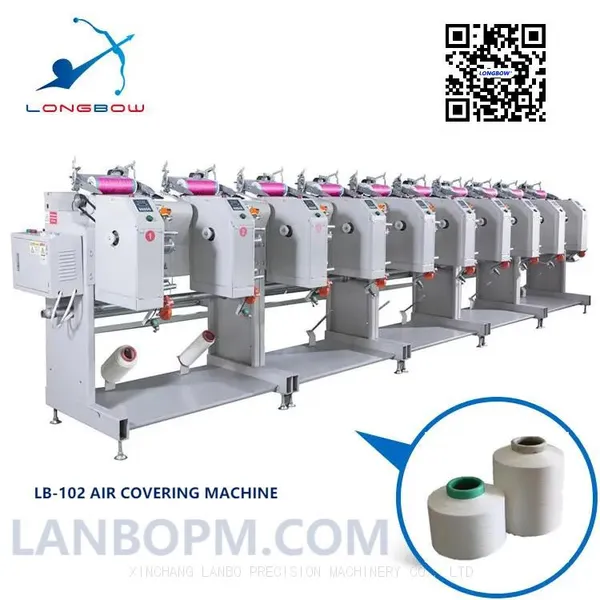

LB-102 AIR COVERING MACHINE
This machine is used to make air covered yarn, Spandex/Lycra, Polyester yarn, Nylon yarn, Polypropylene yarn air covering with air jet. It also can be used as rewinding machine and doubling machine.
The machine starts slowly with inverter, stable performance, easy operation. Individual spindle control, set length stop. When the yarn is full on the bobbin or yarn broken, the spindle will stop automatically.
It’s a highly cost effective machine ( small investment, large capacity, convenient production and different spindle can produce different yarn size). The final product suits for the seamless underwear, socks, gloves and so on.
Machine can be used to make for the FDY intermingle point. (option)
Features: Each Spindle with Air Jet, Yarn Sensor Device and Tensioner.
Technical Parameter:
Type |
|
The number of Spindles |
two spindles/ section (standard 24 spindles) |
Yarn Speed |
400~600m/minutes, Normal Speed 500m/minute |
Draw Ratio |
1.5~5 |
Friction Roller Diameter |
100mm |
Working pressure of air jet |
≧0.6Mpa |
Traverse Length |
210mm or 270mm |
Take-up Bobbin Size |
Φ69×L230mm or Φ69×L290mm 0°0′ |
Power /spindle (KW) |
0.259kw (250w+9w) |
Machine Size |
1200×900×1500mm/section |
Weight |
160kgs/section |
Production for each head: 20/75 7.5kgs/24hours/head.
40/150 15kgs/24hours/head.
