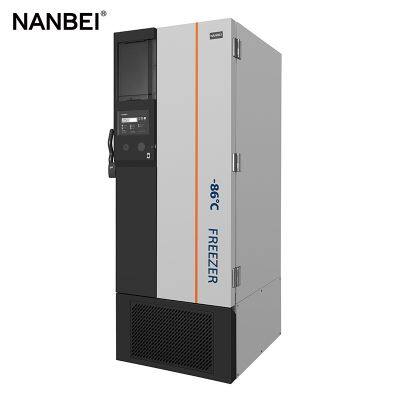

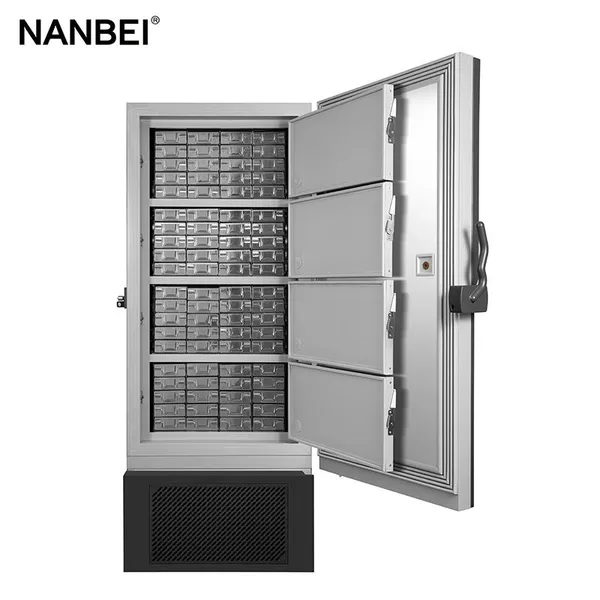

458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer

Nanbei Instrument Limited
458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer thumbnail-1
458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer thumbnail-2
458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer thumbnail-3
458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer photo-1
458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer photo-2
458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer photo-3
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
NANBEI
Place of Origin:
China
Material:
Stainless Steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NANBEI
Place of Origin China
Material Stainless Steel
Certification CE
Condition New
Dimensions (L x W x H (Inches) 885*855*1980mm
Defrost Type Manual Defrost
Fridge Capacity 458L
Power Source Electricity

458L Ultra Cold Medical Deep Refrigerator Laboratory Freezer

Introduction

Components

The compressor and fan are using brand products. Lifespan increase up to 20%.

Multifunction Alarms

Include high, low temperature, sensor error, power failure, high ambient, door ajar ,door  open alarm, low battery alarm.

Good Temperature Uniformity

Good temperature uniformity greatly reduce risk of sample degradation caused by temperature fluctuation.

Fast Cabinet Pull Down

Usually takes an average of three hours to reach -81℃ at 25℃ ambient.The faster pull  down,the safer for the samples

Forming Technology

Forming agent can provide the high density cabinet , the Space utilization increase 10%.

Stainless Steel Cabinet

Abrasive and corrosion resistance,easy clean.


Features

VIP PLUS Design

◆VIP Plus vacuum insulation provides up to 30%  more storage capacity than a conventionally insulated freezer, without increasing the footprint.

◆A glass fifibre core provides good thermal properties.

D-Shape Evaporator

◆D-shape evaporating tube allow the bigger heating exchange area. The heating exchange rate increase up to 15%.

◆More space contact, faster pull down.

Forming Technology

◆Better insulation, more energy-saving.

◆More reasonable of the foaming layer design, higher space ualization rate.

Specification


NBD-86L458

Storage Volume(L)

458

Climate Class

N

Temperature Range(°C)

-40~-86

Cooling System

Auto-cascade

Cooling Type

Direct cooling

Voltage/Frequency(V/Hz)

220~240V/50Hz

Voltage/Frequency(V/Hz)

220~240V/60Hz

Voltage/Frequency(V/Hz)

110V/60Hz

Cabinet Type

Upright

Defrost Mode

Manual

Interior Dimensions

(mm)(wxdxh)

595*580*1310

Exterior Dimensions

(mm)(wxdxh)

885*855*1980

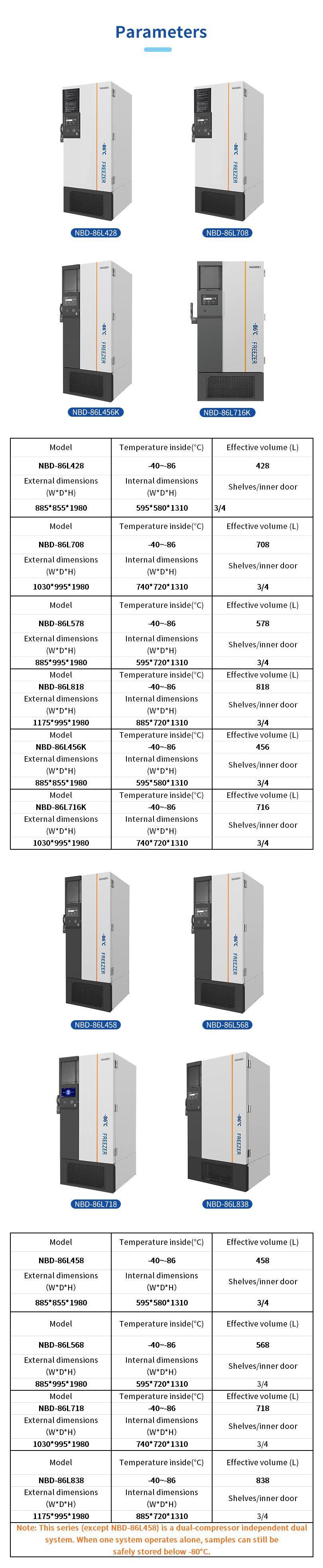

Model selection

Item

Model No.

NBD-86L568

NBD-86L568T

NBD-86L718

NBD-86L718T

NBD-86L838

NB-86L838T

Technical Data

Cabinet Type

Upright

Upright

Upright

Upright

Upright

Upright

Climate Class

N

N

N

N

N

N

Cooling Type

Direct cooling

Direct cooling

Direct cooling

Direct cooling

Direct cooling

Direct cooling

Defrost

Manual

Manual

Manual

Manual

Manual

Manual

Cooling System

Twin Cooling

Twin Cooling

Twin Cooling

Twin Cooling

Twin Cooling

Twin Cooling

Refrigerant

Mixed refrigerant

Mixed refrigerant

Mixed refrigerant

Mixed refrigerant

Mixed refrigerant

Mixed refrigerant

Total Storage Volume(L)

568

568

718

718

838

838

2ml Cryo Tube Qty

40000

40000

50000

50000

60000

60000

External Material

High quality

coated steel

High quality

coated steel

High quality

coated steel

High quality

 coated steel

High quality

coated steel

High quality

 coated steel

Inner Material

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel

Stainless steel





Control

Controller

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Microprocessor

Display

LED

Touch Screen

LED

Touch Screen

LED

Touch Screen

Temperature Accuracy(℃)

0.1

0.1

0.1

0.1

0.1

0.1

Temperature Range

-40 ～ -86℃

-40 ～ -86℃

-40 ～ -86℃

-40 ～ -86℃

-40 ～ -86℃

-40 ～ -86℃

Product Dimensions

(mm)(wxdxh)

885*995*1980

885*995*1980

1030*995*1980

1030*995*1980

1175*995*1980

1175*995*1980



Dimensions

Interior Dimensions

(mm)(wxdxh)

595*720*1310

595*720*1310

740*720*1310

740*720*1310

885*720*1310

885*720*1310

Electrical Data

Power Supply

110~240V /50 ,60HZ

110~240V /50 ,60HZ

110~240V /50 ,60HZ

110~240V /50 ,60HZ

110~240V /50 ,60HZ

110~240V /50 ,60HZ



















Functions

High Temperature Alarm

Y

Y

Y

Y

Y

Y

Low Temperature Alarm

Y

Y

Y

Y

Y

Y

Door Ajar

Y

Y

Y

Y

Y

Y

Power Failure Alarm

Y

Y

Y

Y

Y

Y

High condenser temperature alarm

Y

Y

Y

Y

Y

Y

High ambient Temperature Alarm

Y

Y

Y

Y

Y

Y

Low Battery

Y

Y

Y

Y

Y

Y

Sensor Failure alarm

Y

Y

Y

Y

Y

Y

USB Interface

Y

Y

Y

Y

Y

Y

Door Heating

Y

Y

Y

Y

Y

Y

Porthole

Y

Y

Y

Y

Y

Y

Universal Wheel

Y

Y

Y

Y

Y

Y

Caster

Y

Y

Y

Y

Y

Y


Item

Model No.

NBD-86L458

NBD-86L458T















Technical Data

Cabinet Type

Upright

Upright

Climate Class

N

N

Cooling Type

Direct cooling

Direct cooling

Defrost

Manual

Manual

Refrigerant

Mixed refrigerant

Mixed refrigerant

Total Storage Volume(L)

458

458

2ml Cryo Tube Qty

32000

32000

External Material

High quality coated steel

High quality coated steel

Inner Material

Stainless steel

Stainless steel

Control

Controller

Microprocessor

Microprocessor

Display

LED

Touch Screen

Temperature Accuracy(℃)

0.1

0.1

Temperature Range

-40 ～ -86℃

-40 ～ -86℃



Dimensions

Product Dimensions

(mm)(wxdxh)

885*855*1990

885*855*1990

Interior Dimensions

(mm)(wxdxh)

595*580*1310

595*580*1310

Electrical Data

Power Supply

110~240V /50,60HZ

110~240V /50,60HZ



















Functions

High Temperature Alarm

Y

Y

Low Temperature Alarm

Y

Y

Door Ajar

Y

Y

Power Failure Alarm

Y

Y

High Condenser Temperature Alarm

Y

Y

High Ambient Temperature Alarm

Y

Y

Low Battery

Y

Y

Sensor Failure Alarm

Y

Y

USB Interface

Y

Y

Door Heating

Y

Y

Porthole

Y

Y

Universal Wheel

Y

Y

Caster

Y

Y
